FRONT WHEEL
GS450EU 1988 (J) GERMANY (E22)

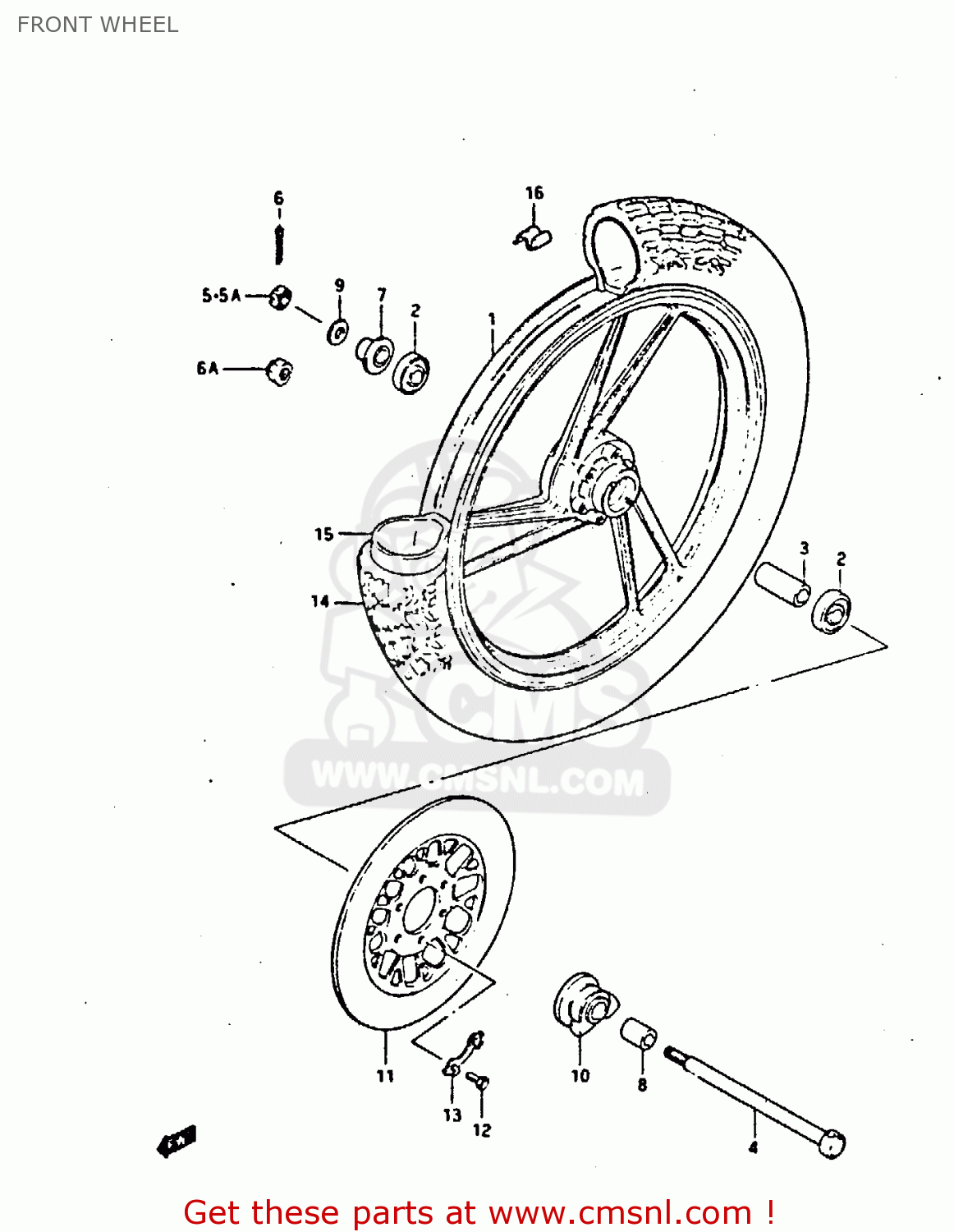

Front wheel diagram GS450EU 1988 (J) GERMANY (E22)
FRONT WHEEL GS450EU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
541114445019T
ref: 1-1
MODEL E/F
WHEEL, FRONT (18X1.60) GOLD
€ 447.50
1-2
541114445029I
ref: 1-2
MODEL G/H/J
WHEEL, FRONT (1.60*18) BLACK
€ 0.00
2
0812363027
ref: 2
BEARING
€ 19.00
3
0918015011
ref: 3
SPACER(15.3X21.7X63)
€ 7.50
4
5471133002
ref: 4
AXLE,FRONT
€ 41.00
5
0831431128
ref: 5
MODEL E/F/G/H
NUT 12MM
€ 2.00
5A
0914116001
ref: 5A
MODEL J
NUT
€ 6.50
6
0411130308
ref: 6
COTTER PIN
€ 1.50
6A
0915912011
ref: 6A
E22
NUT
€ 8.50
7
5474018410
ref: 7
SPACER,FR HUB BEARING,R
€ 17.00
8
0918015034
ref: 8
SPACER(15X22X30)
€ 7.00
9
0832221128
ref: 9
WASHER
€ 2.00
10
5460037300
ref: 10
BOX ASSEMBLY,SPEEDOMETER GEAR
€ 90.00
11
5921145200
ref: 11
DISC,FR BRAKE
€ 144.00
12
0910008140
ref: 12
BOLT(8X25)
€ 2.00
13
0916908016
ref: 13
WASHER
€ 3.50
14-1
5510044010
ref: 14-1
IRC
TIRE,FRONT
€ 123.00
14-2
5510044130
ref: 14-2
BS
TIRE,FRONT
€ 123.00
15
5520011601
ref: 15
TUBE,INNER
€ 24.50
16-1
5541145100
ref: 16-1
MODEL E
BALANCER,WHEEL
€ 7.00
16-2
5541245100
ref: 16-2
MODEL E
BALANCER,WHEEL
€ 4.00
16-3
5541345100
ref: 16-3
MODEL E
BALANCER,WHEEL
€ 6.50
16-4
5541100A0019T
ref: 16-4
MODEL F
BALANCER,WHEEL
€ 6.50
16-5
5541200A0019T
ref: 16-5
MODEL F
BALANCER,WHEEL
€ 7.00
16-6
5541300A0019T
ref: 16-6
MODEL F
BALANCER,WHEEL
€ 4.00
16-7
5541100A0029I
ref: 16-7
MODEL G
BALANCER (10G) BLACK
€ 0.00
16-8
5541200A0029I
ref: 16-8
MODEL G
BALANCER (20G) BLACK
€ 0.00
16-9
5541300A0029I
ref: 16-9
MODEL G
BALANCER (30G) BLACK
€ 0.00
16-10
5541100A00
ref: 16-10
MODEL H/J
BALANCER,WHEEL (10G)
€ 6.50
16-11
5541200A00
ref: 16-11
MODEL H/J
BALANCER,WHEEL
€ 7.00
16-12
5541300A00
ref: 16-12
MODEL H/J
BALANCER,WHEEL
€ 4.00
