WIRING HARNESS
GS450EU 1988 (J) GERMANY (E22)

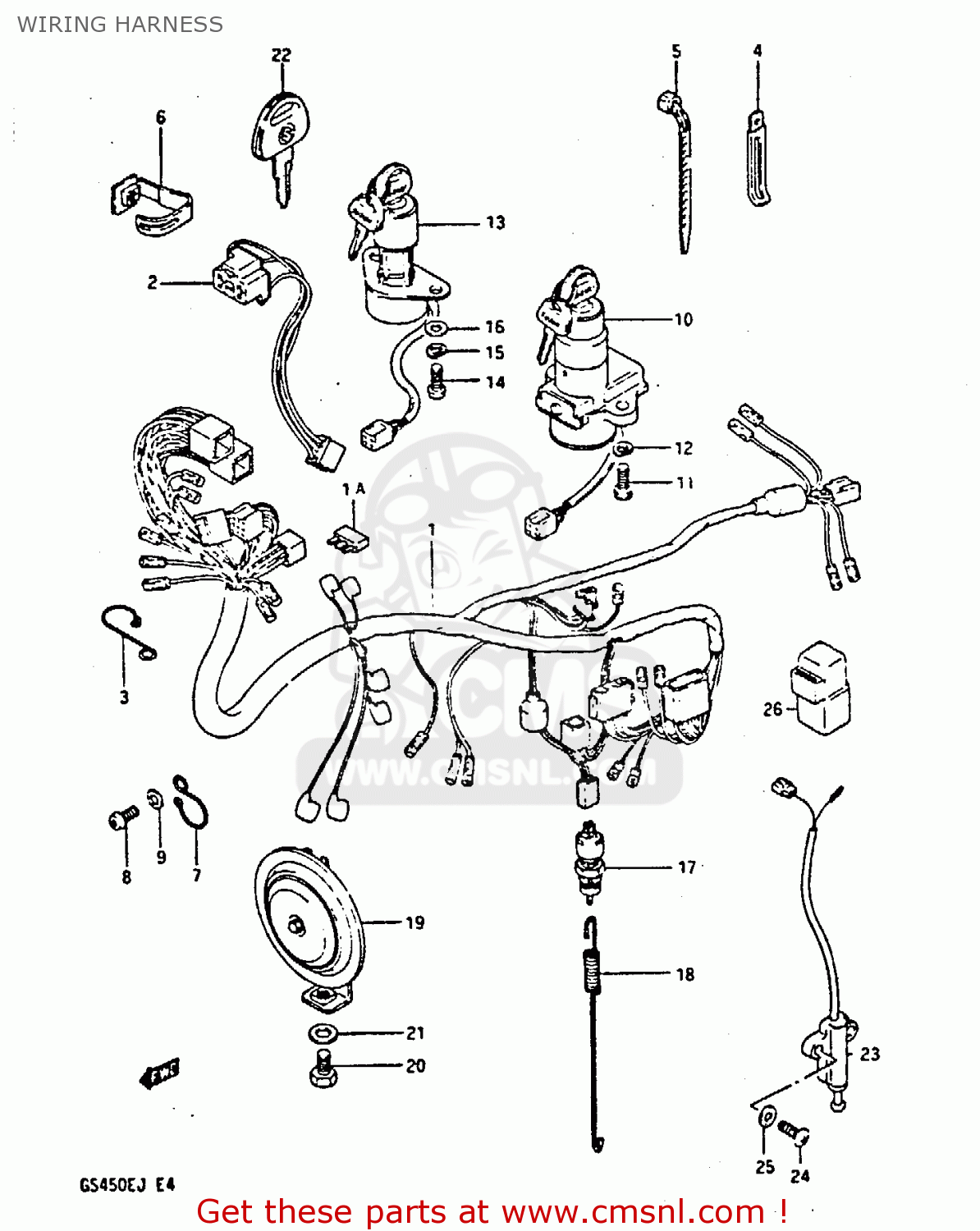

Wiring harness diagram GS450EU 1988 (J) GERMANY (E22)
WIRING HARNESS GS450EU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661044410
ref: 1-1
MODEL E/F/G/H
WIRING HARNESS
€ 118.50
1-2
3661044450
ref: 1-2
MODEL J
WIRING HARNESS
€ 0.00
1A
3661138A00
ref: 1A
MODEL J
DIODE(STANLEY DE8804)
€ 13.00
2
3685330500
ref: 2
LEAD WIRE,HEADLAMP
€ 13.00
3
3661944401
ref: 3
CLIP,WIRING HARNESS
€ 0.00
4-1
0940406401
ref: 4-1
MODEL J
CLAMP L:35
€ 2.50
4-2
0940410403
ref: 4-2
CLAMP
€ 2.50
5-1
0940714403
ref: 5-1
CLAMP(L:125)
€ 2.50
5-2
0940714403
ref: 5-2
CLAMP(L:125)
€ 2.50
6
3665033201
ref: 6
CLAMP,WIRING HARNESS
€ 0.00
7
3661944002
ref: 7
CLIP,WIRING HARNESS
€ 2.50
8
0211206125
ref: 8
SCREW
€ 1.50
9
0832221064
ref: 9
WASHER
€ 2.00
10
3710031301
ref: 10
E2, E4, E6, E21, E34
LOCK ASSEMBLY,STEERING
€ 108.50
11
3715247011
ref: 11
BOLT
€ 3.00
12
0832121067
ref: 12
WASHER,LOCK
€ 2.50
13
3711005301
ref: 13
E15, E22, E77
SWITCH ASSY,IGNITION
€ 121.00
14
0211206164
ref: 14
SCREW
€ 2.00
15
0832121064
ref: 15
WASHER,LOCK
€ 2.00
16
0832221064
ref: 16
WASHER
€ 2.00
17
3774024A00
ref: 17
FROM 37740-07900
SWITCH ASSY,STOP LAMP
€ 20.50
18
0944306035
ref: 18
SPRING
€ 4.50
19-1
3850044410
ref: 19-1
HORN ASSEMBLY
€ 45.00
19-2
3850044490
ref: 19-2
E4, E34, E39, E77
HORN
€ 45.00
20
0110708125
ref: 20
BOLT
€ 1.50
21
0832211084
ref: 21
WASHER
€ 1.50
22
3714647010
ref: 22
OPT
KEY,BLANK
€ 15.00
23
3784044A10
ref: 23
MODEL J
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
24
0211206205
ref: 24
SCREW
€ 2.00
25
0832221064
ref: 25
WASHER
€ 2.00
26
3874024B10
ref: 26
MODEL J
RELAY ASSEMBLY
€ 37.50
