TRANSMISSION
GS450EU 1988 (J) GERMANY (E22)

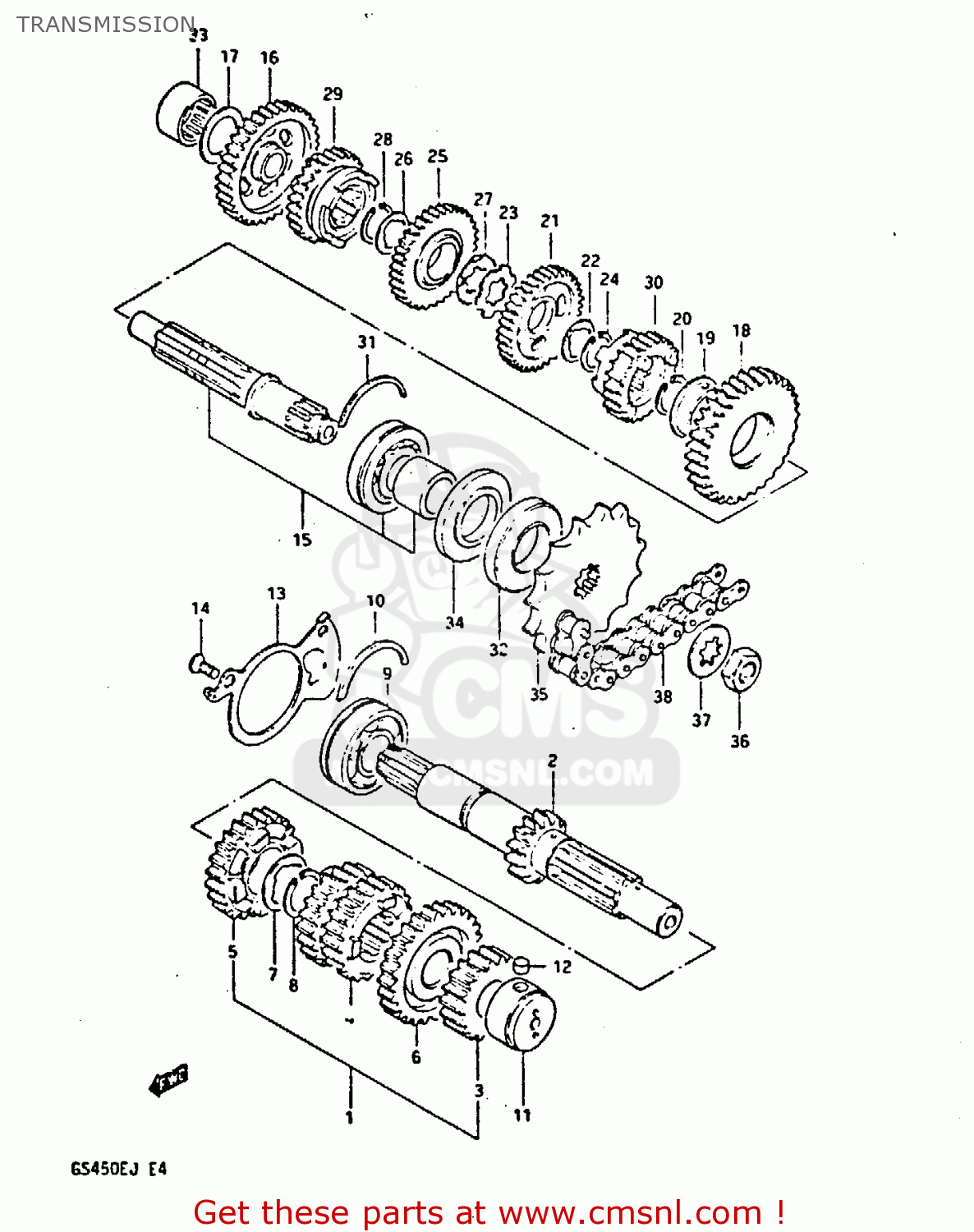

Transmission diagram GS450EU 1988 (J) GERMANY (E22)
TRANSMISSION GS450EU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
2412044100
ref: 1
SHAFT,COUNTER
€ 178.00
2
2412144100
ref: 2
SHAFT,COUNTER
€ 61.50
3
2422144001
ref: 3
GEAR,2ND DRIVE(NT:18)
€ 83.00
4
2423144001
ref: 4
GEAR,THIRD DRIVE
€ 69.50
5
2425044001
ref: 5
GEAR,FIFTH DRIVE
€ 66.00
6
2426044000
ref: 6
GEAR,SIXTH DRIVE
€ 58.50
7
0821125341
ref: 7
WASHER
€ 3.50
8
0938025010
ref: 8
CIRCLIP
€ 3.00
9
0926225051
ref: 9
BEARING(25X62X17)
€ 59.50
10
0939062006
ref: 10
C-RING
€ 5.00
11
0926320026
ref: 11
ROLLER BEARING (20X34X2
€ 37.00
12
0422107129
ref: 12
PIN
€ 1.50
13
2474144102
ref: 13
PLATE,COUNTERSHAFT BEARING
€ 10.50
14
0212206167
ref: 14
SCREW
€ 2.00
15
2410044811
ref: 15
SHAFT,DRIVE
€ 125.00
16
2431044000
ref: 16
GEAR,FIRST DRIVEN
€ 98.50
17
0821120341
ref: 17
WASHER
€ 2.00
18
2432144004
ref: 18
GEAR,SECOND DRIVEN
€ 98.50
19
0930125001
ref: 19
BUSHING
€ 12.50
20
0938025010
ref: 20
CIRCLIP
€ 3.00
21
2433144002
ref: 21
GEAR,THIRD DRIVEN
€ 89.50
22
0916725012
ref: 22
WASHER,LOCK
€ 3.50
23
0916725013
ref: 23
WASHER,LOCK
€ 2.50
24
0938025010
ref: 24
CIRCLIP
€ 3.00
25
2434144002
ref: 25
GEAR,FOURTH DRIVEN
€ 82.50
26
0916725012
ref: 26
WASHER,LOCK
€ 3.50
27
0916925001
ref: 27
WASHER
€ 2.00
28
0938025010
ref: 28
CIRCLIP
€ 3.00
29
2435144001
ref: 29
GEAR,5TH DRIVEN(NT:25)
€ 108.00
30
2436144002
ref: 30
GEAR,SIXTH DRIVEN
€ 121.00
31
0939062006
ref: 31
C-RING
€ 5.00
32
0928332015
ref: 32
SEAL,OIL(32X62X7)
€ 15.50
33
0926320028
ref: 33
ROLLER BEARING (20X34X1
€ 34.00
34
0928232002
ref: 34
SEAL,OIL(32X62X5.5)
€ 11.50
35
2751144000
ref: 35
SPROCKET,ENGINE(NT:16)
€ 49.00
36
0914020009
ref: 36
NUT
€ 9.00
37
0916725011
ref: 37
WASHER
€ 2.50
38
2760044430
ref: 38
CHAIN ASSEMBLY,DRIVE
€ 168.50
