SPEEDOMETER - TACHOMETER
GS450EU 1988 (J) GERMANY (E22)

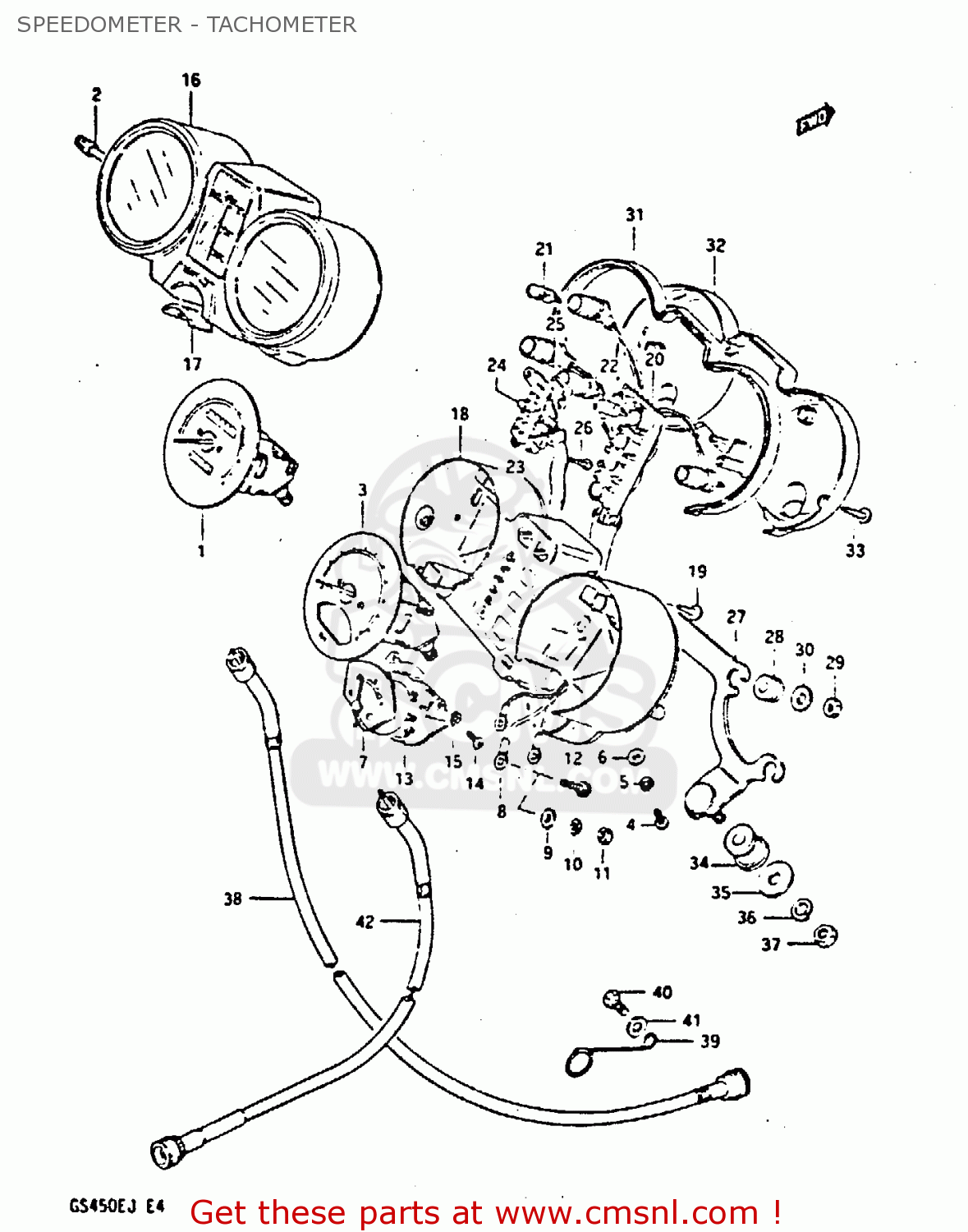

Speedometer - tachometer diagram GS450EU 1988 (J) GERMANY (E22)
SPEEDOMETER - TACHOMETER GS450EU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412044910
ref: 1-1
MODEL E/F/G/H
SPEEDOMETER (KILO)
€ 314.00
1-2
3412044460
ref: 1-2
MODEL J
SPEEDOMETER (KILO)
€ 314.00
1-3
3412044720
ref: 1-3
E2
SPEEDOMETER (MILE/KILO)
€ 147.00
1-4
3412044470
ref: 1-4
E75
SPEEDOMETER (MILE/KILO)
€ 147.00
2
3498045020
ref: 2
KNOB
€ 4.50
3-1
3422044910
ref: 3-1
MODEL E/F/G/H
METER,TACHOMETER
€ 214.50
3-2
3422044460
ref: 3-2
MODEL J
METER,TACHO
€ 214.50
4
0211204108
ref: 4
SCREW 4X10
€ 2.00
5
0832221047
ref: 5
WASHER 4MM
€ 2.00
6
0832121048
ref: 6
LOCK WASHER
€ 2.00
7-1
3432044910
ref: 7-1
MODEL E, TO 34320-44
METER,FUEL
€ 86.50
7-2
3432044911
ref: 7-2
MODEL F/G/H
METER,FUEL
€ 86.50
8
3437844911
ref: 8
WIRE,FUEL METER LEAD
€ 14.50
9
3438433220
ref: 9
WASHER,FUEL METER
€ 2.00
10
0832121038
ref: 10
LOCK WASHER
€ 1.50
11
0831011038
ref: 11
NUT 3MM
€ 2.00
12
3438309400
ref: 12
SCREW(3X22)
€ 2.50
13
3435044910
ref: 13
BRACKET,FUEL METER
€ 7.50
14
0211203108
ref: 14
SCREW
€ 1.50
15
0832121038
ref: 15
LOCK WASHER
€ 1.50
16-1
3415044910
ref: 16-1
MODEL E/F/G/H
HOOD,METER
€ 80.00
16-2
3415044460
ref: 16-2
MODEL J
HOOD, METER
€ 66.50
17
3499347000
ref: 17
SEAL,IGNITION SWITCH
€ 3.00
18-1
3411144910
ref: 18-1
MODEL E/F/G/H
CASE,METER,INNER
€ 75.00
18-2
3411144460
ref: 18-2
MODEL J
CASE, INNER
€ 60.50
19
0214204127
ref: 19
SCREW
€ 2.00
20-1
3632144910
ref: 20-1
MODEL E/F/G/H
SOCKET
€ 71.50
20-2
3632144460
ref: 20-2
MODEL J
SOCKET
€ 64.50
21
0947112028
ref: 21
BULB(12V3.4W,T10)
€ 3.50
22
0947112077
ref: 22
BULB(12V1.7W,T10,WB121)
€ 1.00
23
3645344910
ref: 23
SOCKET,GEAR INDICATOR
€ 122.00
24
0947112078
ref: 24
BULB(14V1.12W,BQ041-32503B)
€ 6.50
25
3645444910
ref: 25
COVER,INDICATOR,LOWER
€ 4.50
26
0321103166
ref: 26
SCREW
€ 1.50
27
3495044910
ref: 27
BRACKET,COMBINATION METER
€ 30.00
28
3418944910
ref: 28
CUSHION,METER
€ 5.00
29
0831011058
ref: 29
NUT
€ 2.50
30
0916005017
ref: 30
WASHER (5.5X16X1.2)
€ 2.50
31
3496144910
ref: 31
COVER,METER,UNDER
€ 59.00
32
3419344910
ref: 32
COVER,LWR
€ 40.00
33
0214204127
ref: 33
SCREW
€ 2.00
34
3495631001
ref: 34
CUSHION,METER BRACKET
€ 4.50
35
0916008057
ref: 35
WASHER (8.5X20X1.6)
€ 2.00
36
0832121084
ref: 36
WASHER,LOCK,8.
€ 2.50
37
0831011085
ref: 37
NUT
€ 1.50
38
3491044400
ref: 38
CABLE ASSY,SPEEDOMETER
€ 27.50
39
3493845100
ref: 39
CLAMP,SPEEDOMETER CABLE
€ 14.50
40
0110706167
ref: 40
BOLT
€ 3.00
41
0832221067
ref: 41
WASHER
€ 2.00
42-1
3494034311
ref: 42-1
E2
CABLE ASSEMBLY,TACHOMETER
€ 20.50
42-2
3494047032
ref: 42-2
E6, E39, MODEL E/F E
CABLE ASSEMBLY,TACHOMETER
€ 20.50
42-3
3494033300
ref: 42-3
E15, E21, MODEL H E3
CABLE ASSEMBLY,TACHOMETER
€ 40.00
42-4
3494047032
ref: 42-4
MODEL J
CABLE ASSEMBLY,TACHOMETER
€ 20.50
