CARBURETOR
GS450GA 1983 (D) USA (E03)

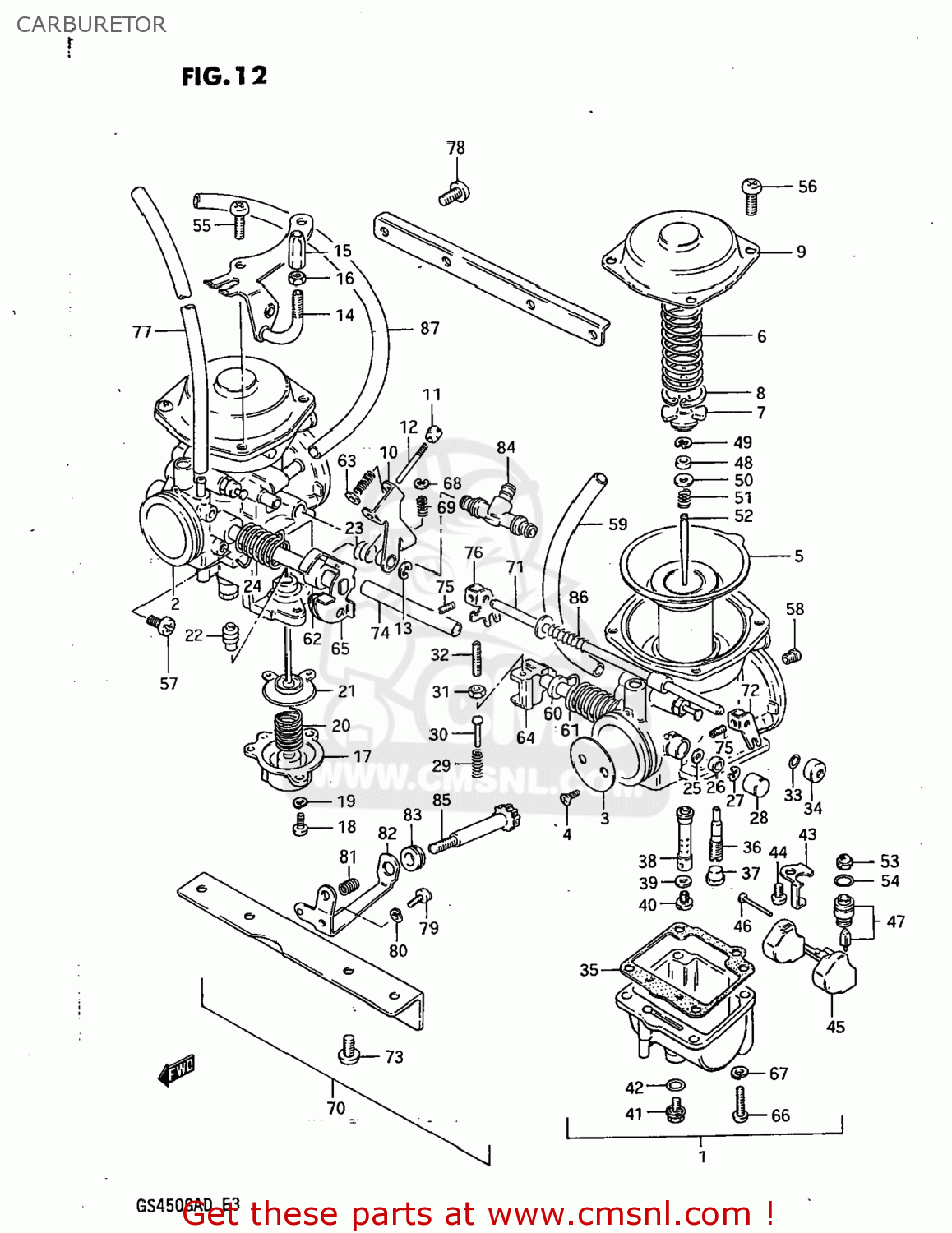

Carburetor diagram GS450GA 1983 (D) USA (E03)
CARBURETOR GS450GA 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1320144500
ref: 1
CARBURETOR ASSEMBLY,LEFT (BS
€ 205.00
2
1320244500
ref: 2
CARBURETOR ASSEMBLY
€ 148.50
3
1355144500
ref: 3
VALVE,THROTTLE
€ 26.00
4
1360444080
ref: 4
SCREW
€ 3.50
5
1350044500
ref: 5
13500-49250
DIAPHRAGM ASSEMBLY
€ 128.50
6
1350347070
ref: 6
SPRING
€ 9.50
7
1338944030
ref: 7
HOLDER,GUIDE
€ 10.50
8
1358144030
ref: 8
E RING
€ 6.50
9
1350238300
ref: 9
COVER
€ 22.00
10
1349044500
ref: 10
LEVER,ACCELERTION PUMP
€ 13.00
11
1349744500
ref: 11
O-RING
€ 0.00
12
1349844500
ref: 12
NO PRODUCT DESCRIPTION AVAILABLE
€ 10.00
13
1361744500
ref: 13
E RING,ACCELETION LEVER
€ 2.50
14
1362144500
ref: 14
13627-44460
BRACKET
€ 11.50
15
1357798010
ref: 15
ADJUSTER
€ 0.00
16
1366103010
ref: 16
NUT
€ 3.50
17
1348844500
ref: 17
COVER ASSEMBLY,DIAPHRAGM
€ 15.00
18
0211204108
ref: 18
02112-04107
SCREW 4X10
€ 2.00
19
0832121048
ref: 19
08321-0104A
LOCK WASHER
€ 2.00
20
1349444500
ref: 20
SPRING,ACCELERATOR PUMP
€ 2.50
21
1349144500
ref: 21
DIAPHRAGM ASSY,ACCELERATING
€ 31.50
22
1349944500
ref: 22
BOOT, ACCELE PUMP ROD
€ 11.00
23
1357344500
ref: 23
SPRING
€ 3.50
24
1357344210
ref: 24
SPRING
€ 0.00
25
1365151010
ref: 25
SEAL
€ 4.00
26
1355747070
ref: 26
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
27
1361744080
ref: 27
E RING
€ 3.50
28
1357847070
ref: 28
CAP
€ 5.50
29
1326844110
ref: 29
SPRING,THROTTLE SCREW
€ 0.00
30
1356344110
ref: 30
PIN,THROTTLE LEVER
€ 0.00
31
1360747070
ref: 31
NUT
€ 4.00
32
1360547080
ref: 32
SCREW
€ 7.00
33
1327847090
ref: 33
O RING
€ 2.00
34
1368231210
ref: 34
CAP,STARTER VALVE
€ 5.00
35
1325144500
ref: 35
GASKET,FLOAT CHAMBER
€ 8.00
36
0949242010
ref: 36
JET,PILOT(42.5)
€ 8.50
37
1335744080
ref: 37
PLUG,NEEDLE JET
€ 4.50
38
0949400377
ref: 38
JET,NEEDLE
€ 8.50
39
1333244080
ref: 39
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
40
0949124016
ref: 40
JET,MAIN(120)
€ 11.50
41
1324744080
ref: 41
PLUG,DRAIN
€ 9.50
42
1324644080
ref: 42
GASKET (NAS)
€ 3.50
43
1337311400
ref: 43
PLATE,NEEDLE VALVE FITING
€ 7.00
44
0211204068
ref: 44
02112-0406B
SCREW 4X6
€ 2.00
45
1325044080
ref: 45
FLOAT
€ 31.00
46
1325492311
ref: 46
PIN,FLOAT
€ 2.00
47
1337044500
ref: 47
VALVE ASSY,NEEDLE
€ 40.50
48
1338747010
ref: 48
RING
€ 7.50
49
1339410010
ref: 49
CLIP
€ 4.50
50
1338247010
ref: 50
WASHER,JET NEEDLE
€ 3.00
51
1338847010
ref: 51
SPRING
€ 7.00
52
1338344500
ref: 52
NEEDLE JET
€ 9.00
53
1337665010
ref: 53
13376-19F00
FILTER
€ 6.50
54
1337444080
ref: 54
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
55
0211205108
ref: 55
02112-05107
SCREW
€ 2.00
56
0211205088
ref: 56
02112-05087
SCREW
€ 2.00
57
1360545410
ref: 57
13605-73000
SCREW
€ 8.00
58
0949327001
ref: 58
JET,AIR(135)
€ 11.00
59
1368744500
ref: 59
44420-44AR0
HOSE
€ 13.00
60
1338744200
ref: 60
SPACER,THROTTLE SHAFT
€ 0.00
61
1357344200
ref: 61
SPRING
€ 0.00
62
1338744210
ref: 62
SPACER,THROTTLE SHAFT
€ 0.00
63
1349644500
ref: 63
GUIDE,HOLDER
€ 1.00
64
1355044210
ref: 64
SHAFT ASSEMBLY
€ 0.00
65
1355044500
ref: 65
SHAFT ASSEMBLY
€ 26.00
66
0211205168
ref: 66
02112-05167
SCREW
€ 2.50
67
0832121058
ref: 67
08321-0105A
LOCK WASHER
€ 2.00
68
1339401010
ref: 68
13394-10010
E-RING
€ 4.50
69
1326844012
ref: 69
SPRING,THROTTLE SCREW
€ 0.00
70
1321044500
ref: 70
CARBURETOR ASSEMBLY
€ 127.00
71
1341044500
ref: 71
SHAFT,STARTER
€ 0.00
72
1342244080
ref: 72
LEVER
€ 10.00
73
0211206128
ref: 73
02112-06127
SCREW 6X12
€ 2.00
74
1368344500
ref: 74
HOSE
€ 4.00
75
1360547070
ref: 75
SCREW
€ 5.50
76
1342244500
ref: 76
LEVER,STARTER
€ 16.00
77
1368718656
ref: 77
09355-45855-600
HOSE
€ 14.00
78
0211205128
ref: 78
02112-05127
SCREW
€ 2.50
79
0211205088
ref: 79
02112-05087
SCREW
€ 2.00
80
0832121058
ref: 80
08321-0105A
LOCK WASHER
€ 2.00
81
1327144220
ref: 81
13268-37420
SPRING,THROTTLE ADJUST
€ 3.50
82
1362144210
ref: 82
13627-44120
BRACKET,THROTTLE ADJUST
€ 0.00
83
1368116600
ref: 83
CAP,RUBBER
€ 7.00
84
1368511400
ref: 84
NIPPLE,CARBURETOR
€ 19.50
85
1326747070
ref: 85
SCREW
€ 21.00
86
1343744500
ref: 86
SPRING,STARTER
€ 0.00
87
1368744230
ref: 87
44420-44AR0
HOSE (5*8*300)
€ 13.00
