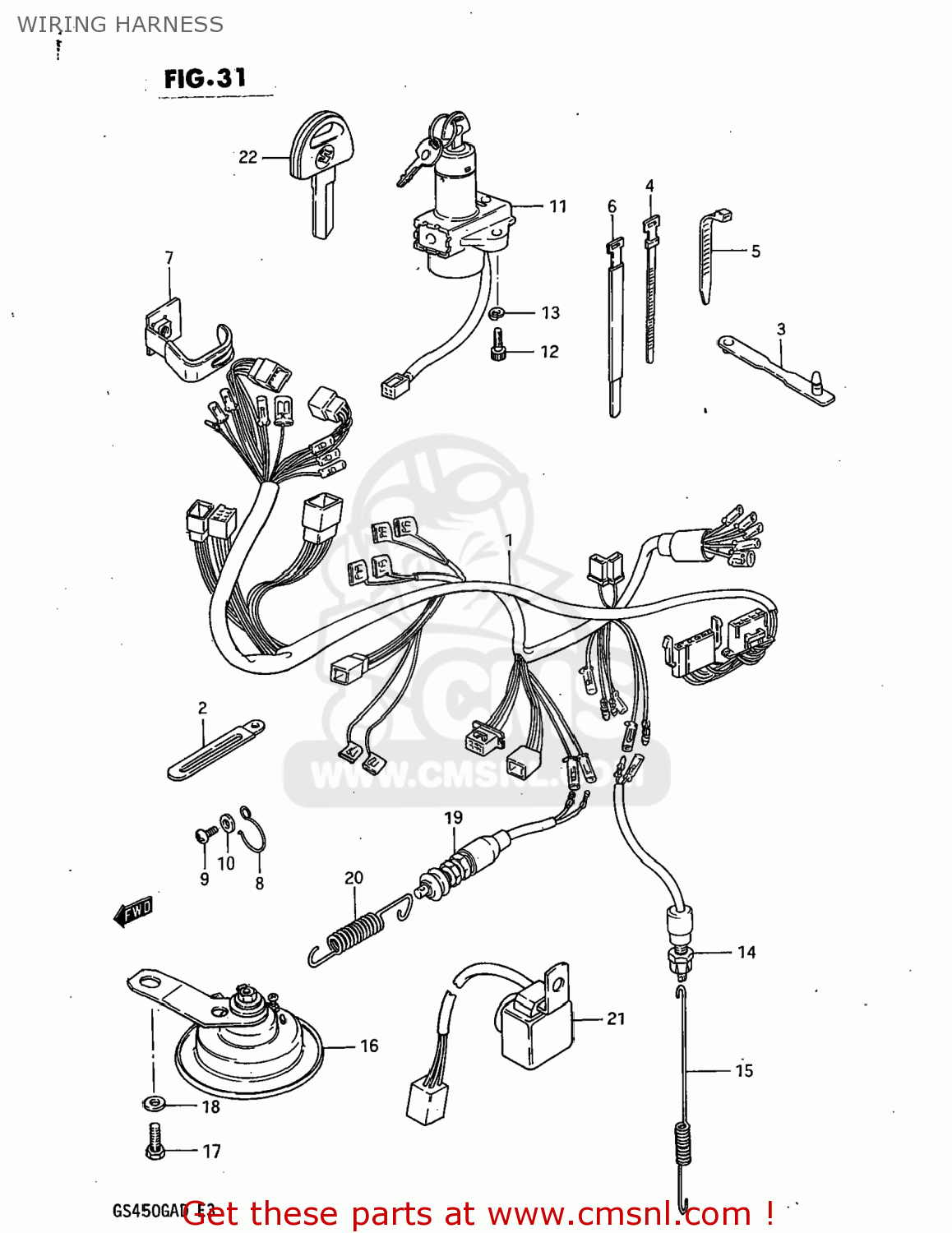

WIRING HARNESS

ref

part #

description

quantity

1-1

3661044500
ref: 1-1
36610-44501

HARNESS,WIRING

€ 49.50

1-2

3661044510
ref: 1-2

HARNESS,WIRING

€ 63.00

2-1

0940406413
ref: 2-1
09404-06432

CLAMP

€ 2.50

2-2

0940406414
ref: 2-2
09404-06433

CLAMP

€ 3.00

3

0940705403
ref: 3

CLAMP,L:88

€ 1.50

4

0940708401
ref: 4
09407-14403

CLAMP(L:80)

€ 2.50

5

0940714403
ref: 5

CLAMP(L:125)

€ 2.50

6

0940718301
ref: 6

CLAMP

€ 6.00

7

3665033201
ref: 7

CLAMP,WIRING HARNESS

€ 8.50

8

3661944500
ref: 8
36619-44501

CLIP,WIRING HARNESS

€ 1.00

9

0211206128
ref: 9
02112-06127

SCREW 6X12

€ 2.00

10

0832221068
ref: 10
08322-01067

WASHER

€ 2.00

11-1

3710044500
ref: 11-1

LOCK ASSEMBLY,STEERING

€ 59.50

11-2

3710044510
ref: 11-2

IGNITION SWITCH/STEERING LOCK

€ 95.50

12

3715247010
ref: 12
07130-0616B

BOLT

€ 3.00

13

0832121068
ref: 13
08321-01067

LOCK WASHER

€ 2.50

14

3774004571
ref: 14
37740-48071

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

15

0944306045
ref: 15
09443-06045-XC0

SPRING

€ 5.50

16

3850044500
ref: 16

HORN ASSEMBLY

€ 40.00

17

0110708128
ref: 17
01500-08127

BOLT 8X12

€ 2.50

18

0832211088
ref: 18
08322-01087

WASHER

€ 2.00

19

3784049201
ref: 19
37840-38301

SWITCH ASSEMBLY,SIDE STAND

€ 33.50

20

0944306010
ref: 20

SPRING

€ 2.50

21-1

3879044500
ref: 21-1
38790-44501

BUZZER ASSEMBLY,TURN SIGNAL

€ 54.00

21-2

3879044501
ref: 21-2

BUZZER ASSEMBLY,TURN SIGNAL

€ 54.00

22

3714647010
ref: 22

KEY,BLANK

€ 15.00
