SPEEDOMETER (MODEL D)
GS450GA 1983 (D) USA (E03)

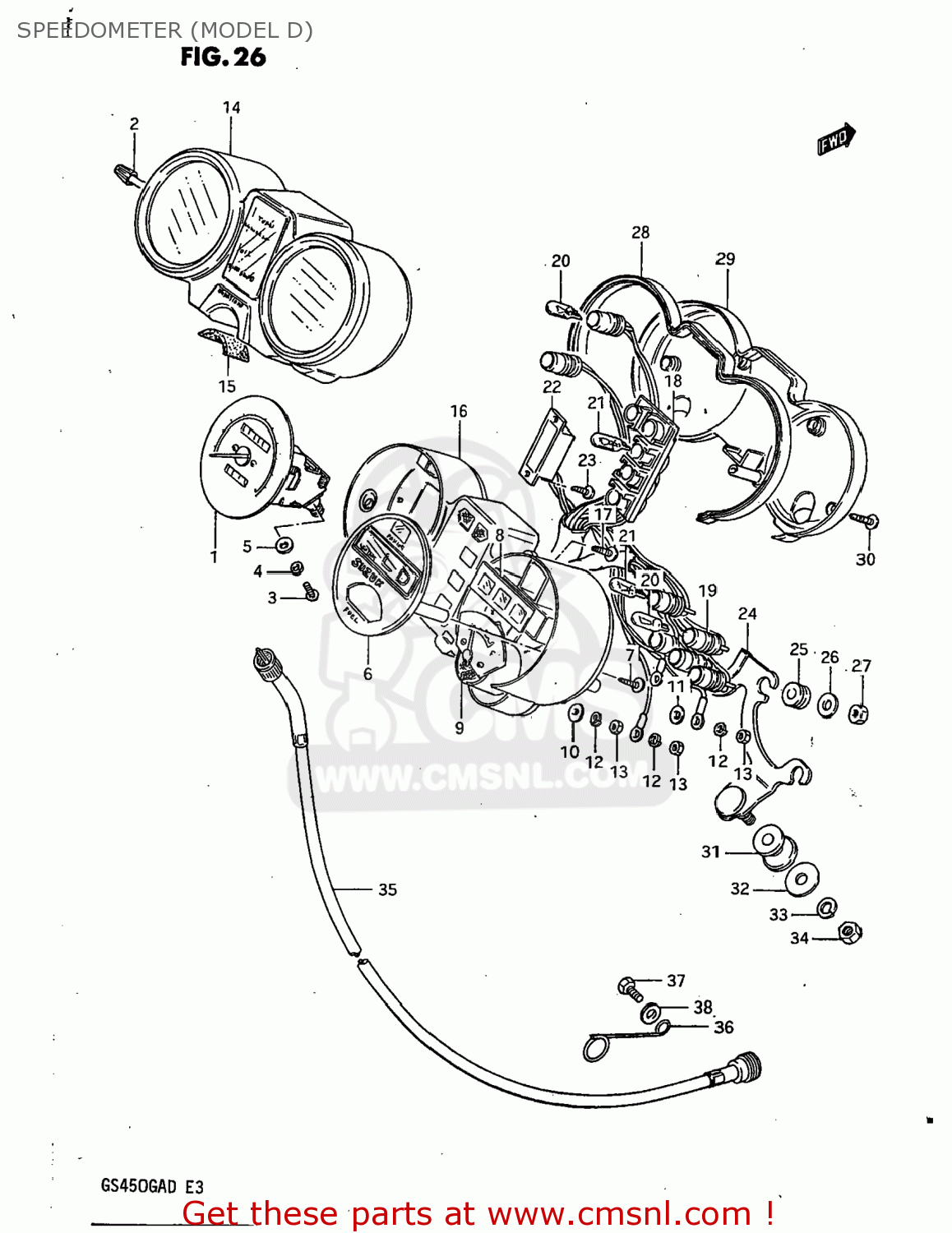

Speedometer (model d) diagram GS450GA 1983 (D) USA (E03)
SPEEDOMETER (MODEL D) GS450GA 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3412044530
ref: 1
METER,SPEEDOMETER (KM/MPH)
€ 154.00
2
3498045020
ref: 2
KNOB
€ 4.50
3
0211204108
ref: 3
02112-04107
SCREW 4X10
€ 2.00
4
0832121048
ref: 4
08321-0104A
LOCK WASHER
€ 2.00
5
0832221048
ref: 5
08322-01047
WASHER
€ 2.00
6
3645044530
ref: 6
PLATE,PILOT PANEL NO.1
€ 20.50
7
3645644510
ref: 7
SCREW,GEAR INDICATOR
€ 1.00
8
3645144530
ref: 8
PLATE,PILOT PANEL NO.2
€ 14.00
9
3432044910
ref: 9
34320-44911
METER,FUEL
€ 86.50
10
3438444530
ref: 10
WASHER
€ 1.50
11
3438433220
ref: 11
WASHER,FUEL METER
€ 2.00
12
0832121038
ref: 12
09162-03001
LOCK WASHER
€ 1.50
13
0831011038
ref: 13
08310-0003B
NUT 3MM
€ 2.00
14
3415044530
ref: 14
HOOD,METER
€ 58.50
15
3499347000
ref: 15
SEAL,IGNITION SWITCH
€ 3.00
16
3411144530
ref: 16
CASE,METER,INNER
€ 0.00
17
0214204127
ref: 17
SCREW
€ 2.00
18
3645344530
ref: 18
36453-44531
SOCKET,GEAR INDICATOR
€ 33.50
19
3632544530
ref: 19
SOCKET
€ 22.50
20
0947112028
ref: 20
BULB(12V3.4W,T10)
€ 3.50
21
0947112077
ref: 21
BULB(12V1.7W,T10,WB121)
€ 1.00
22
3888044510
ref: 22
WARNING LAMP,SIDE STAND
€ 51.50
23
3645644510
ref: 23
SCREW,GEAR INDICATOR
€ 1.00
24
3495044530
ref: 24
BRACKET,COMBINATION METER
€ 29.00
25
3418944910
ref: 25
34189-32B00
CUSHION,METER
€ 5.00
26
0916005017
ref: 26
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
27
0831011058
ref: 27
08310-00057
NUT
€ 2.50
28
3496144910
ref: 28
COVER,METER,UNDER
€ 59.00
29
3419344910
ref: 29
COVER,LWR
€ 40.00
30
0214204127
ref: 30
SCREW
€ 2.00
30
0214204127
ref: 30
SCREW
€ 2.00
31
3495631001
ref: 31
CUSHION,METER BRACKET
€ 4.50
32
0916008002
ref: 32
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
33
0832121088
ref: 33
08321-01087
LOCK WASHER
€ 2.00
34
0831012088
ref: 34
08310-00087
NUT
€ 2.00
35
3491044400
ref: 35
CABLE ASSY,SPEEDOMETER
€ 27.50
36
3493845100
ref: 36
CLAMP,SPEEDOMETER CABLE
€ 14.50
37
0110706168
ref: 37
01500-06167
BOLT, UPPER
€ 3.00
38
0832221068
ref: 38
08322-01067
WASHER
€ 2.00
