CRANKSHAFT
GS450GA 1983 (D) USA (E03)

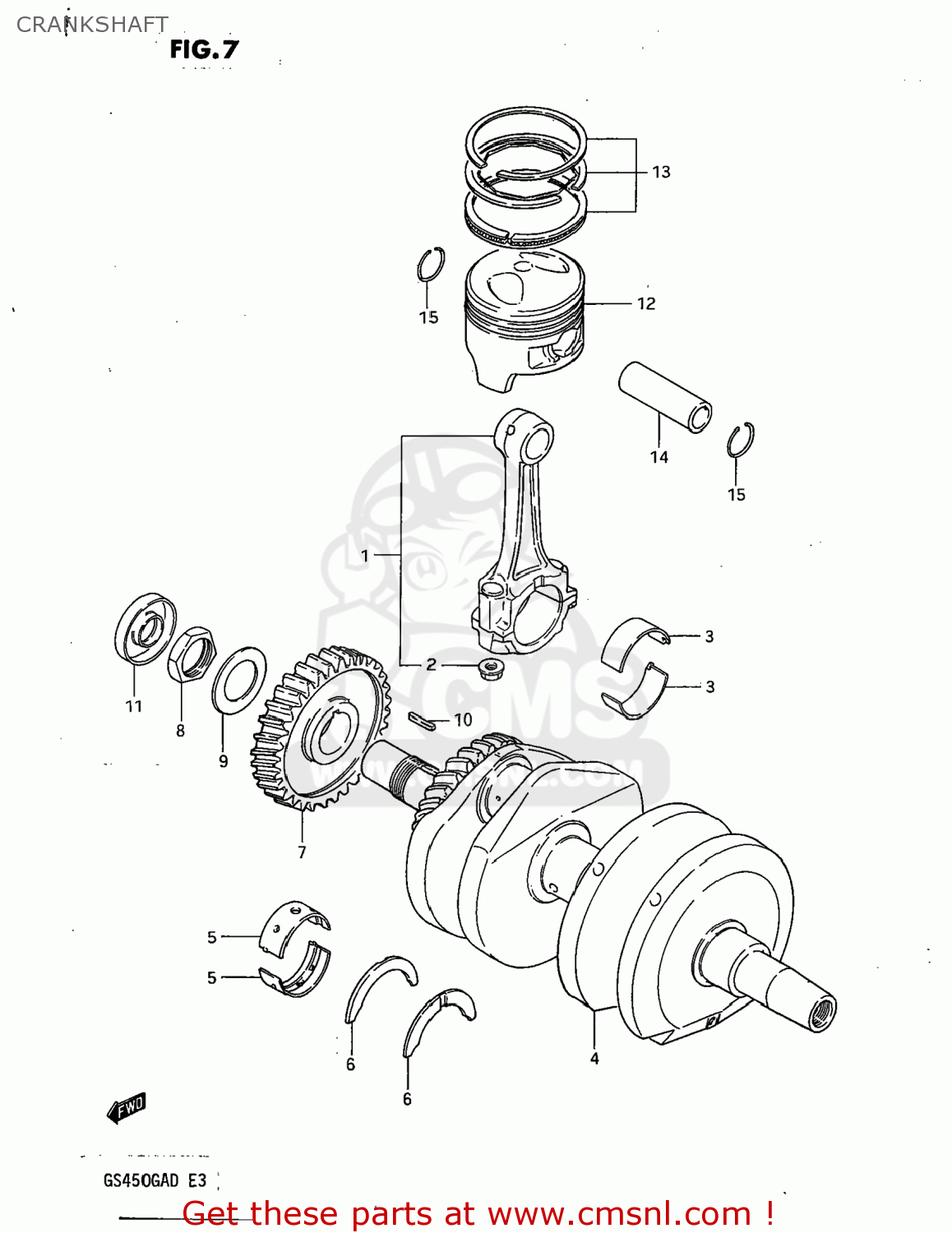

Crankshaft diagram GS450GA 1983 (D) USA (E03)
CRANKSHAFT GS450GA 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1216044500
ref: 1
12160-44101
CONNECTING ROD ASSEMBLY
€ 135.50
2
0915908033
ref: 2
NUT
€ 2.50
3-1
1216444501010
ref: 3-1
12164-01D01-0A0
BEARING,CRANK PIN
€ 13.50
3-2
1216444501020
ref: 3-2
12164-01D01-0B0
BEARING,CRANK PIN
€ 14.50
3-3
1216444501030
ref: 3-3
12164-01D01-0C0
BEARING,CRANK PIN
€ 14.50
3-4
1216444501040
ref: 3-4
12164-01D01-0D0
BEARING,CRANK PIN
€ 15.00
3-5
1216444100025
ref: 3-5
BEARING,CRANK PIN(US:0.25)
€ 15.50
3-6
1216444100050
ref: 3-6
BEARING,CRANK PIN(US:0.5)
€ 14.50
4
1222044501
ref: 4
12220-44502
CRANKSHAFT
€ 367.50
5-1
1222944500010
ref: 5-1
METAL CRANKSHAFT
€ 6.00
5-2
1222944500020
ref: 5-2
METAL CRANKSHAFT
€ 6.00
5-3
1222944500030
ref: 5-3
METAL CRANKSHAFT
€ 6.00
5-4
1222944500040
ref: 5-4
METAL CRANKSHAFT
€ 5.50
5-5
1222944100025
ref: 5-5
BEARING,CRANKSHAFT(US:0.25)
€ 21.50
5-6
1222944100050
ref: 5-6
BEARING,CRANKSHAFT(US:0.5)
€ 9.50
6-1
1222844104
ref: 6-1
BEARING,CRANK THRUST(GREEN)
€ 8.00
6-2
1222844105
ref: 6-2
PLATE,CRANK THRUST
€ 6.50
6-3
1222844106
ref: 6-3
BEARING,CRANK THRUST
€ 8.50
6-4
1222844107
ref: 6-4
PLATE,CRANK THRUST
€ 5.50
6-5
1222844108
ref: 6-5
PLATE,CRANK THRUST
€ 7.50
6-6
1222844109
ref: 6-6
PLATE,CRANK THRUST
€ 4.00
6-7
1222844110
ref: 6-7
PLATE,CRANK THRUST
€ 4.00
7
2111144500
ref: 7
GEAR,PRIMARY DRIVE
€ 46.00
8
0914024007
ref: 8
NUT
€ 4.50
9
0916425001
ref: 9
WASHER
€ 4.50
10
0834131059
ref: 10
KEY
€ 3.00
11
0928322013
ref: 11
09283-22015
OIL SEAL
€ 10.50
12-1
1211144110
ref: 12-1
12111-44100
PISTON
€ 69.00
12-2
1211144110050
ref: 12-2
12103-44810-050
PISTON
€ 116.50
12-3
1211144110100
ref: 12-3
12103-44810-100
PISTON
€ 86.00
13-1
1214044140
ref: 13-1
12140-44110
RING SET,PISTON
€ 61.50
13-2
1214044140050
ref: 13-2
RING SET,PISTON (OS:0.5)
€ 33.00
13-3
1214044140100
ref: 13-3
12140-44111-100
RING SET,PISTON (OS:1.0)
€ 36.00
14
1215192201
ref: 14
12151-45501
PIN,PISTON (18MM)
€ 14.00
15
0938118002
ref: 15
CIRCLIP
€ 1.50
