SEAT (MODEL Z)
GS450GA 1983 (D) USA (E03)

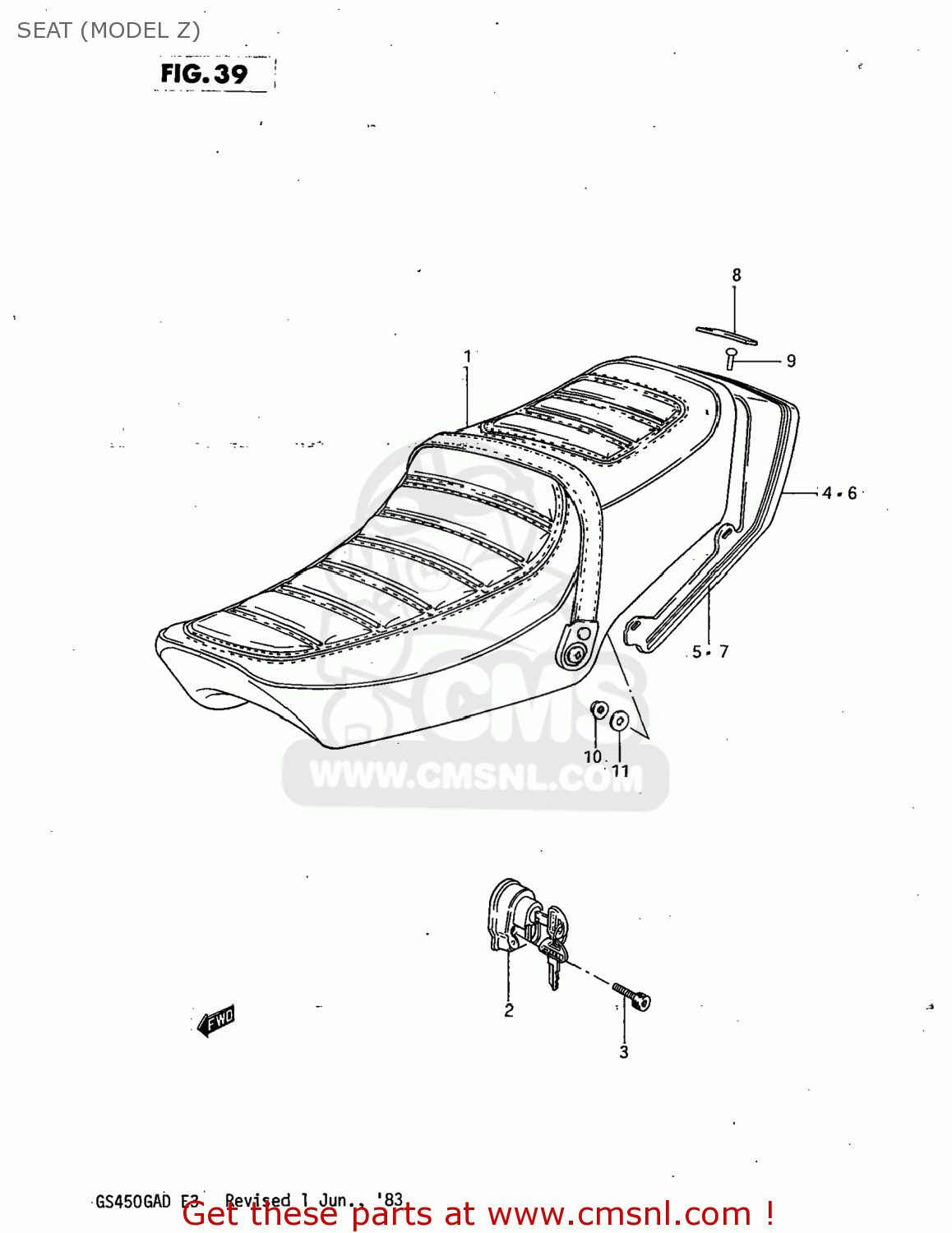

Seat (model z) diagram GS450GA 1983 (D) USA (E03)
SEAT (MODEL Z) GS450GA 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
451004450047T
ref: 1
45100-44500-48H
SEAT ASSEMBLY
€ 243.00
2
9570034210
ref: 2
LOCK ASSY,HELMET
€ 59.00
3
0910605008
ref: 3
07130-0525B
BOLT 5X25
€ 2.00
4
4551144500019
ref: 4
COVER,SEAT TAIL
€ 64.00
5
681604450070G
ref: 5
TAPE SET,SEAT TAIL COVER
€ 9.50
6
455114450003F
ref: 6
COVER,SEAT TAIL
€ 43.50
7
681604450081R
ref: 7
TAPE SET,SEAT TAIL COVER
€ 9.00
8
6823444500
ref: 8
EMBLEM
€ 8.00
9
0922904016
ref: 9
09229-04017
RIVET
€ 1.50
10
0831616068
ref: 10
08319-31067
NUT
€ 2.50
11
0916006003
ref: 11
09160-06129
WASHER (6.7X16X1.8)
€ 2.00
11
0916006003
ref: 11
09160-06129
WASHER (6.7X16X1.8)
€ 2.00
