FRONT FORK (MODEL Z)
GS450L 1981 (X) USA (E03)

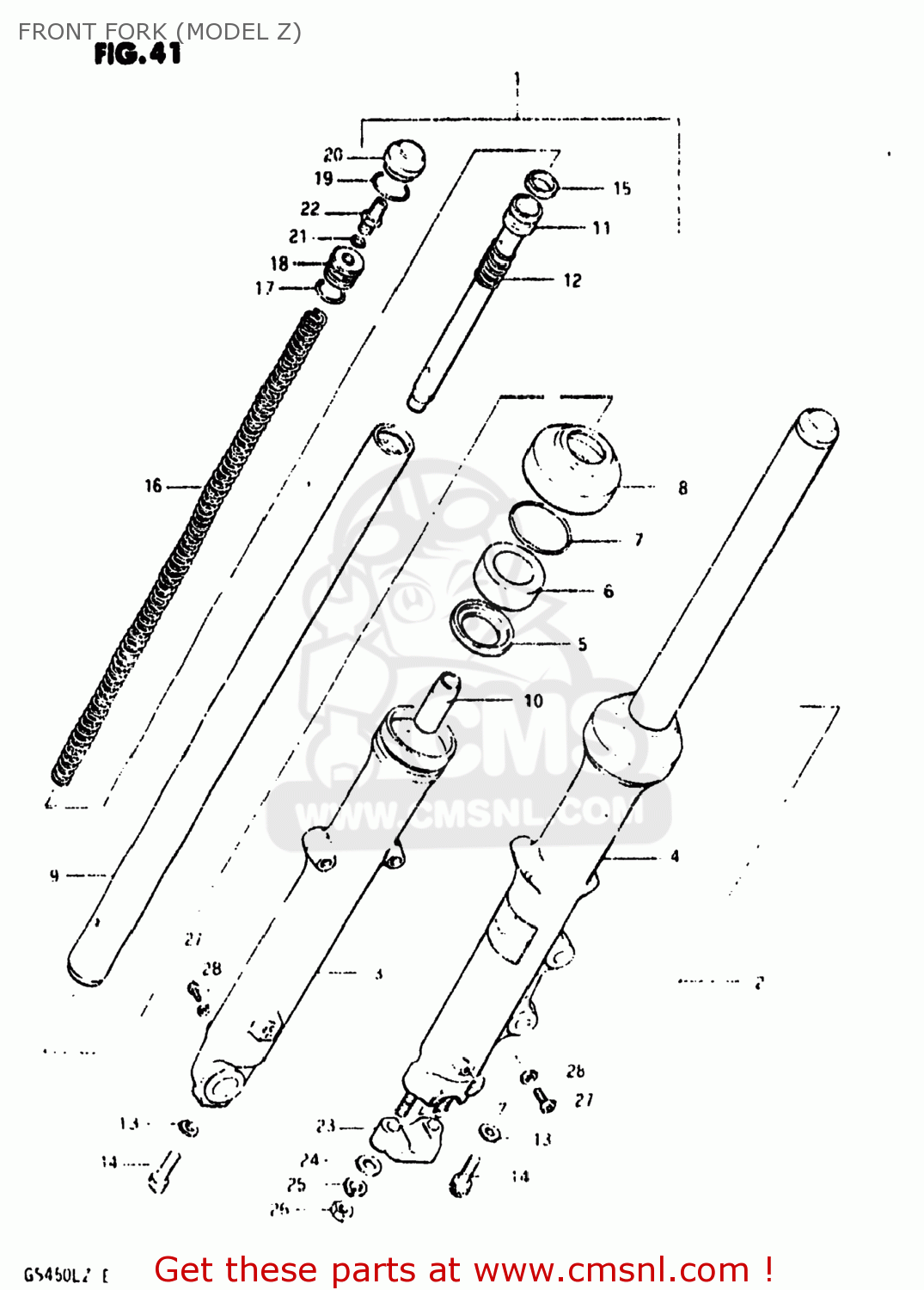

Front fork (model z) diagram GS450L 1981 (X) USA (E03)
FRONT FORK (MODEL Z) GS450L 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110344220
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 156.00
2
5110444220
ref: 2
DAMPER ASSEMBLY,LEFT
€ 168.00
3
5113044310
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 124.50
4
5114044310
ref: 4
TUBE,FORK,LEFT,OUTER
€ 127.50
5
5116844030
ref: 5
SPACER,OIL SEAL
€ 4.50
6
5115337310
ref: 6
51153-02B00
OIL SEAL,FRONT FORK
€ 15.00
7
5115611420
ref: 7
51156-02B00
RING,OIL SEAL STOPPER
€ 4.50
8
5157137310
ref: 8
DUST SEAL
€ 22.00
9
5111044211
ref: 9
TUBE,FORK,INNER
€ 132.00
10
5119548000
ref: 10
PIECE,OIL LOCK
€ 8.50
11
5114644731
ref: 11
51146-38300
CYLINDER,FRONT FORK
€ 42.00
12
5117736030
ref: 12
SPRING,REBOUND
€ 4.50
13
5114831030
ref: 13
51148-36011
GASKET (NAS)
€ 4.00
14
5114748130
ref: 14
BOLT(8X27)
€ 3.50
15
5119633130
ref: 15
RING,PISTON
€ 7.50
16
5117144220
ref: 16
SPRING
€ 16.00
17
5118133131
ref: 17
O RING
€ 5.00
18
5117244170
ref: 18
SEAT,SPRING
€ 0.00
19
5116948500
ref: 19
RING,STOPPER
€ 2.00
20
5118944170
ref: 20
CAP,FRONT FORK
€ 4.50
21
5111745440
ref: 21
09280-06005
O-RING
€ 2.50
22
5129345440
ref: 22
VALVE,AIR
€ 17.00
23
5113231030
ref: 23
HOLDER,AXLE
€ 31.50
24
0832221088
ref: 24
08322-01087
WASHER
€ 2.00
25
0832121088
ref: 25
08321-01087
LOCK WASHER
€ 2.00
26
0914008005
ref: 26
09140-08017
NUT (8MM)
€ 1.50
27
0211204068
ref: 27
02112-0406B
SCREW 4X6
€ 2.00
28
5118333030
ref: 28
GASKET (NAS)
€ 6.50
