MUFFLER
GS450L 1981 (X) USA (E03)

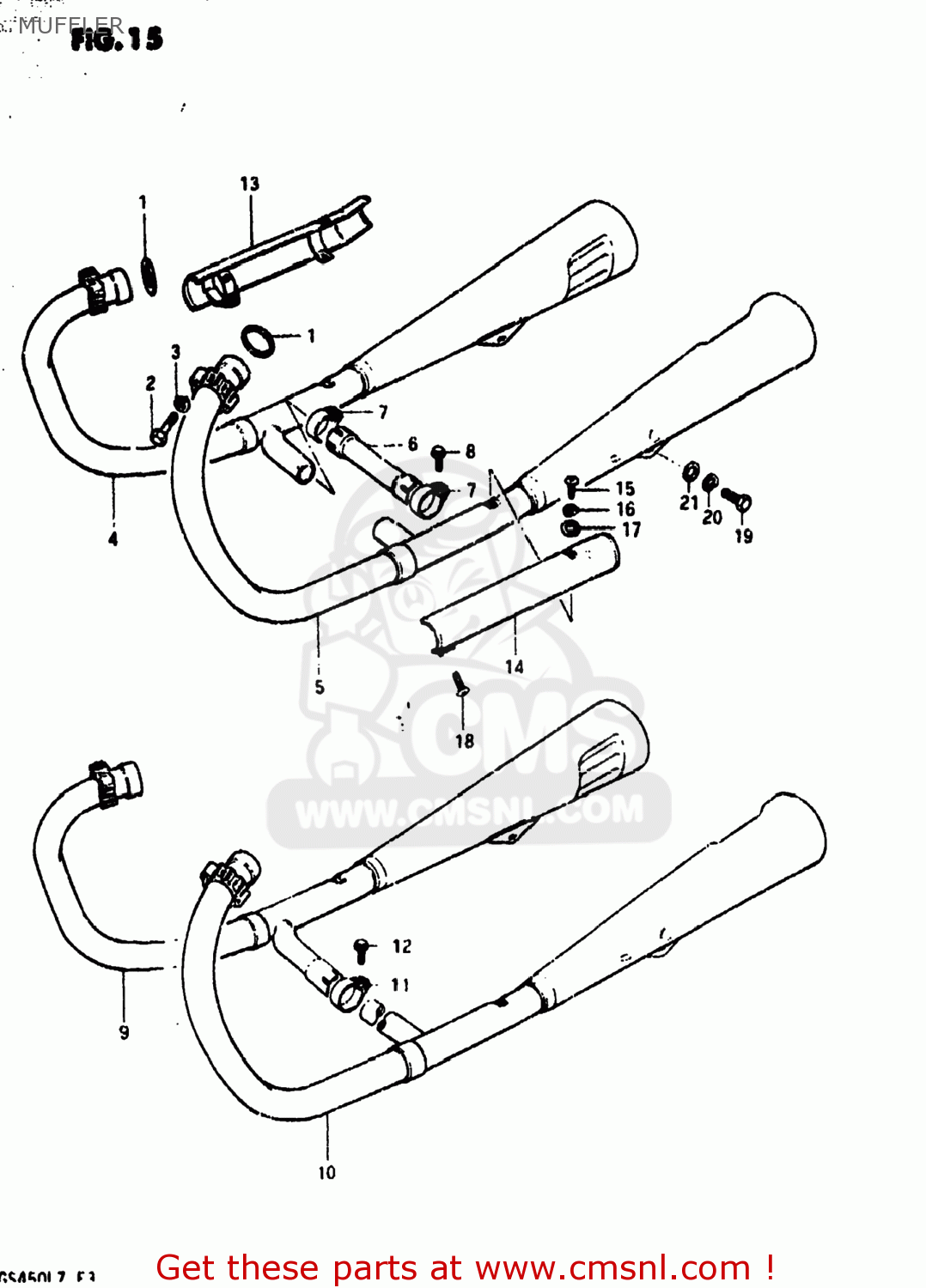

Muffler diagram GS450L 1981 (X) USA (E03)
MUFFLER GS450L 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418111010
ref: 1
14181-01D00
GASKET,EXHAUST PIPE (NAS)
€ 8.00
2
0110708358
ref: 2
01500-0835B
BOLT
€ 3.50
3
0832121088
ref: 3
08321-01087
LOCK WASHER
€ 2.00
4
1431044210
ref: 4
14305-44212-H01
BODY,MUFFLER
€ 257.50
5
1434044210
ref: 5
14306-44210-H01
BODY,MUFFLER
€ 290.00
6
1421144010
ref: 6
PIPE,EXHAUST COUPLER
€ 107.50
7
0940235601
ref: 7
CLAMP
€ 5.00
8
0151706258
ref: 8
01550-06257
BOLT
€ 2.50
9
1431044211
ref: 9
14305-44212-H01
BODY,MUFFLER
€ 257.50
10
1434044211
ref: 10
14306-44212-H01
BODY,MUFFLER
€ 257.50
11
0940235601
ref: 11
CLAMP
€ 5.00
12
0151706258
ref: 12
01550-06257
BOLT
€ 2.50
13-1
1478044100
ref: 13-1
14780-44900
COVER,MUFFLER
€ 25.00
13-2
1478044101
ref: 13-2
14780-44900
COVER,MUFFLER
€ 25.00
14-1
1479044100
ref: 14-1
14790-44900
COVER,MUFFLER
€ 33.50
14-2
1479044101
ref: 14-2
14790-44900
COVER,MUFFLER
€ 33.50
15
0211205088
ref: 15
02112-05087
SCREW
€ 2.00
16
0832121058
ref: 16
08321-0105A
LOCK WASHER
€ 2.00
17
0832221058
ref: 17
08322-01057
WASHER
€ 2.50
18
0211205168
ref: 18
02112-05167
SCREW
€ 2.50
19
0110710258
ref: 19
01500-10257
BOLT 10X25
€ 3.00
20
0832121108
ref: 20
08321-01107
LOCK WASHER
€ 2.00
21
0832221108
ref: 21
08322-01107
WASHER
€ 2.50
