REAR WHEEL (MODEL T
GS450L 1981 (X) USA (E03)

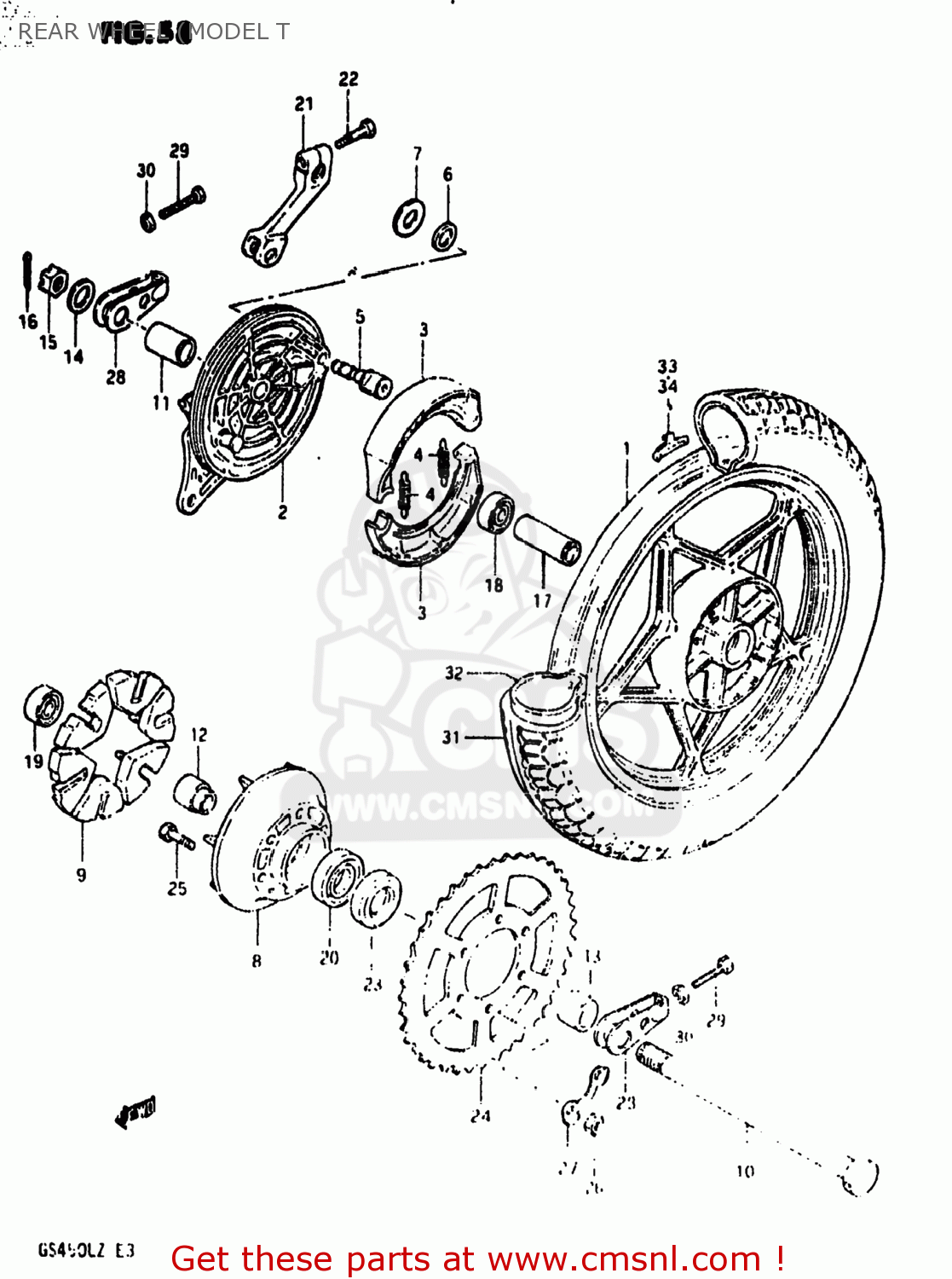

Rear wheel (model t diagram GS450L 1981 (X) USA (E03)
REAR WHEEL (MODEL T GS450L 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6415037300
ref: 1-1
64150-37300-12U
WHEEL,REAR
€ 0.00
1-2
6415037320
ref: 1-2
64150-37300-291
WHEEL,REAR
€ 0.00
2
6421044060
ref: 2
PANEL,REAR HUB
€ 111.50
3
6441011301
ref: 3
64400-11860
SHOE,BRAKE
€ 29.50
4
5542030000
ref: 4
SPRING,BRAKE SHOE
€ 3.50
5
5444008003
ref: 5
54440-08004
CAM,FRONT BRAKE
€ 19.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
09160-15048
WASHER (15X24X1.6)
€ 2.50
8
6461044200
ref: 8
DRUM,REAR SPROCKET MOUNT
€ 100.00
9
6465111300
ref: 9
ABSORBER,RR HUB SHOCK
€ 12.50
10
6471133000
ref: 10
64711-3300V
AXLE,REAR
€ 33.50
11
0918017043
ref: 11
SPACER(17.5X28X44.8)
€ 7.00
12
6473333000
ref: 12
64733-3300V
SPACER,REAR HUB BEARING
€ 20.00
13
0918017042
ref: 13
SPACER(17X30.5X22.3)
€ 8.50
14
0916017013
ref: 14
09160-17050
WASHER (17X30X3.2)
€ 2.00
15
0914116001
ref: 15
NUT
€ 6.50
16
0411140308
ref: 16
04111-4030A
PIN,COTTER
€ 1.50
17
0918017056
ref: 17
09180-17056-XC0
SPACER (17.6X24X57)
€ 19.00
18
0814363037
ref: 18
BEARING
€ 23.00
19
0814362037
ref: 19
BEARING
€ 18.50
20
0811362057
ref: 20
BEARING
€ 18.00
21
6445144001
ref: 21
LEVER,RR BRAKE CAM
€ 111.00
22
0110706258
ref: 22
01500-06257
BOLT
€ 2.00
23
0928530001
ref: 23
SEAL,OIL(30.5X52X8)
€ 20.00
24
6451144200
ref: 24
SPROCKET,REAR (NT:41)
€ 56.00
25
0911910002
ref: 25
09105-10001
BOLT
€ 3.50
26
0831012108
ref: 26
08310-00107
NUT
€ 2.50
27
0916910006
ref: 27
WASHER
€ 4.50
28
6141044200
ref: 28
ADJUSTER,CHAIN
€ 31.00
29
0910408018
ref: 29
09104-08034
BOLT 8X50
€ 3.00
30
0831012088
ref: 30
08310-00087
NUT
€ 2.00
31-1
6510037310
ref: 31-1
65100-38330
TIRE
€ 210.00
31-2
6510037330
ref: 31-2
TIRE
€ 0.00
32-1
6520037300
ref: 32-1
TUBE ASSY,WHEEL,INNER 4.60-16
€ 31.50
32-2
6520037320
ref: 32-2
65200-37300
TUBE ASSY,WHEEL,INNER 4.60-16
€ 31.50
33
5541147001
ref: 33
BALANCER,WHEEL
€ 4.00
34
5541247001
ref: 34
BALANCER,WHEEL
€ 3.50
