GEAR SHIFTING
GS450L 1981 (X) USA (E03)

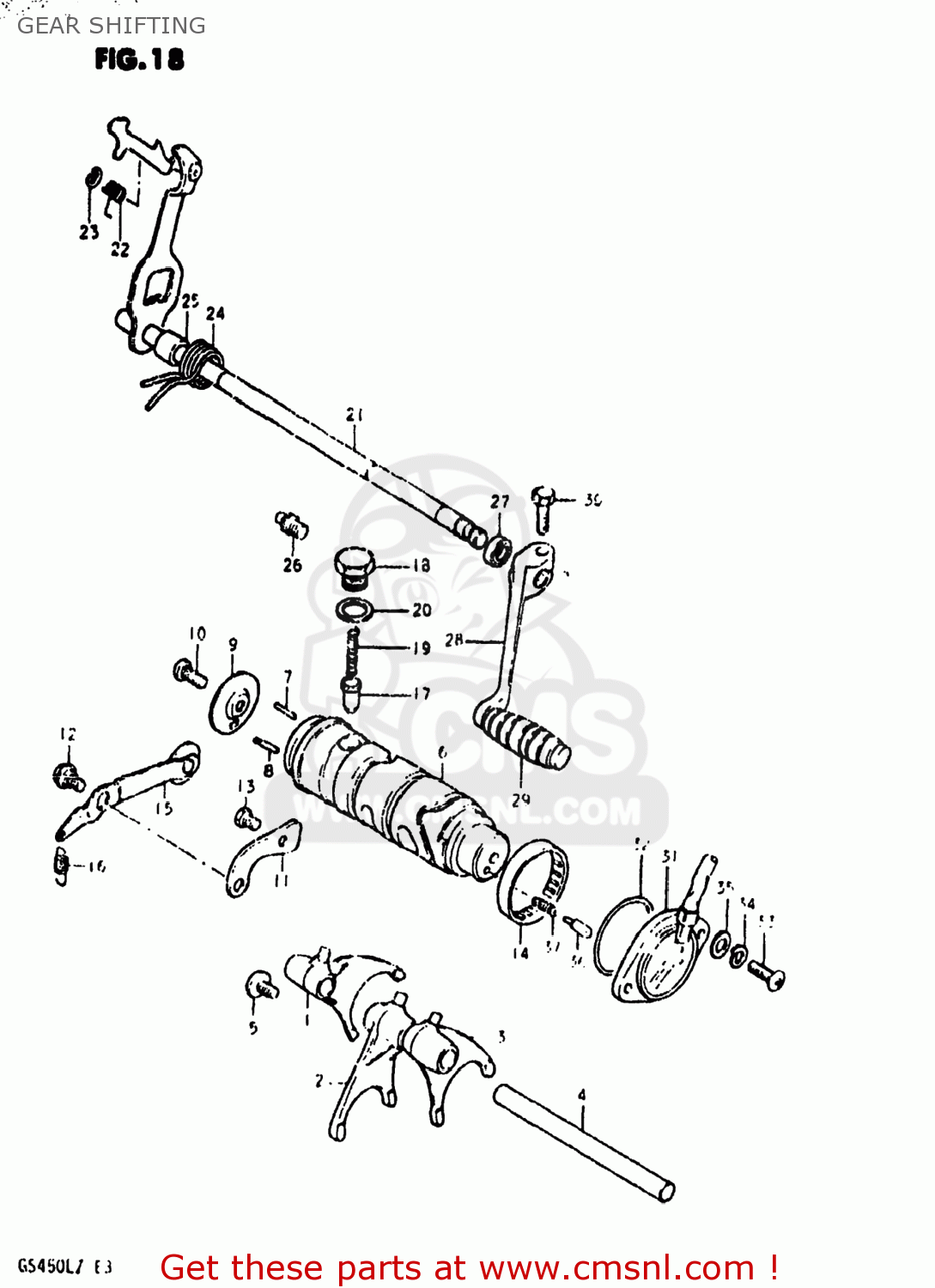

Gear shifting diagram GS450L 1981 (X) USA (E03)
GEAR SHIFTING GS450L 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521144001
ref: 1
FORK,GEAR SHIFT NO.1
€ 70.00
2
2522144001
ref: 2
FORK,GEAR SHIFT NO.2
€ 74.50
3
2523144000
ref: 3
FORK,GEAR SHIFT NO.2
€ 74.50
4
2541131000
ref: 4
25411-18900
SHAFT,GEAR SHIFT FORK
€ 14.50
5
0214206108
ref: 5
02142-06107
SCREW
€ 2.00
6
2531147000
ref: 6
25311-47001
CAM,GEAR SHIFT
€ 68.50
7
0926104001
ref: 7
PIN(4X18.5)
€ 1.50
8
0920904013
ref: 8
PIN
€ 5.00
9
2532244000
ref: 9
RETAINER,GEAR SHIFT CAM DR PIN
€ 2.50
10
0211206168
ref: 10
02112-06167
SCREW
€ 2.50
11
2534144000
ref: 11
25341-33300
GUIDE,GEAR SHIFTING CABLE
€ 6.00
12
0911106019
ref: 12
09111-06054
BOLT
€ 1.50
13
0110706168
ref: 13
01500-06167
BOLT, UPPER
€ 3.00
14
0926340001
ref: 14
BEARING(40X47X12)
€ 21.00
15
2535044000
ref: 15
STOPPER,GEAR SHIFT CAM NO.1
€ 10.50
16
0944309007
ref: 16
SPRING
€ 14.50
17
2535130010
ref: 17
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
18
2535430000
ref: 18
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
19
0944006014
ref: 19
SPRING
€ 1.50
20
0916814004
ref: 20
GASKET(14X19.2X2) (NAS)
€ 2.50
21
2551044100
ref: 21
SHAFT,GEAR SHIFT
€ 83.50
22
0944813008
ref: 22
SPRING
€ 7.00
23
0833211078
ref: 23
08332-1107A
E RING
€ 2.00
24
0944426012
ref: 24
09444-26013
SPRING
€ 3.50
25
0918012068
ref: 25
SPACER(12X20X15.3)
€ 3.00
26
2567101000
ref: 26
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
27
0928512002
ref: 27
09285-12006
OIL SEAL
€ 7.00
28
2560033003
ref: 28
25600-44000
LEVER ASSEMBLY,GEAR SHIFTING
€ 136.00
29
2565216500
ref: 29
RUBBER,GEAR SHIFT PEDAL
€ 4.00
30
0110708208
ref: 30
01500-08207
BOLT
€ 3.00
31
3772033200
ref: 31
37720-45100
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 92.50
32
0928026003
ref: 32
09280-26005
O-RING (D:2.4 ID:26.2)
€ 2.50
33
0211205208
ref: 33
02112-05207
SCREW 5X20
€ 3.00
34
0832121058
ref: 34
08321-0105A
LOCK WASHER
€ 2.00
35
0832221058
ref: 35
08322-01057
WASHER
€ 2.50
36
0920905011
ref: 36
PIN(5X15.5)
€ 2.00
37
0944004010
ref: 37
SPRING
€ 1.50
