RIGHT HANDLE SWITCH (MODEL Z)

GS450L 1981 (X) USA (E03)

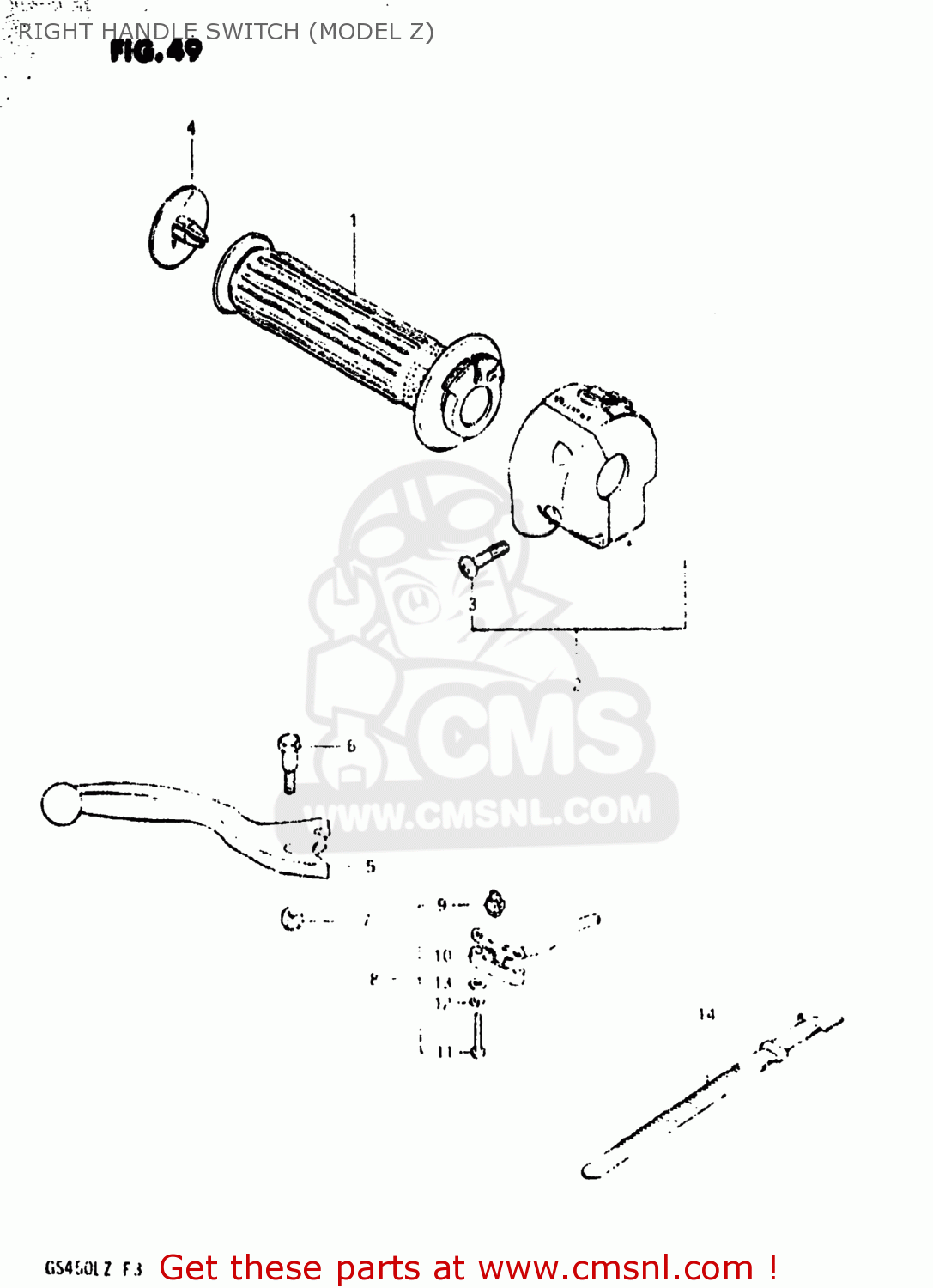

Right handle switch (model z) diagram GS450L 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

5711044011
ref: 1
57110-49510

GRIP,THROTTLE

€ 33.00

2-1

3720049231
ref: 2-1
37200-49232

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 121.00

2-2

3720049211
ref: 2-2
37200-49212

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 164.50

3759149210
ref: 3
09125-05102

SCREW

€ 2.50

5721549100
ref: 4

CAP,GRIP END

€ 3.50

5742049101
ref: 5

LEVER,BRAKE

€ 36.50

5743118621
ref: 6

BOLT

€ 8.00

0831921068
ref: 7
08319-2106A

NUT 6MM

€ 2.00

5746049300
ref: 8
57460-45500

SWITCH ASSEMBLY

€ 40.00

5746518601
ref: 9

CONTACT,SWITCH

€ 4.50

5748133010
ref: 10

COVER,FR BK TERMINAL BASE

€ 19.50

0912503105
ref: 11
09125-03105-XC0

SCREW

€ 2.50

0832121038
ref: 12
09162-03001

LOCK WASHER

€ 1.50

0832221038
ref: 13
08322-01037

WASHER

€ 2.00

0940712402
ref: 14

CLAMP(L:120)

€ 3.00
