COWLING (MODEL M/N/P/R/S/T OPTIONAL)
GS500E 1993 (P) USA (E03)

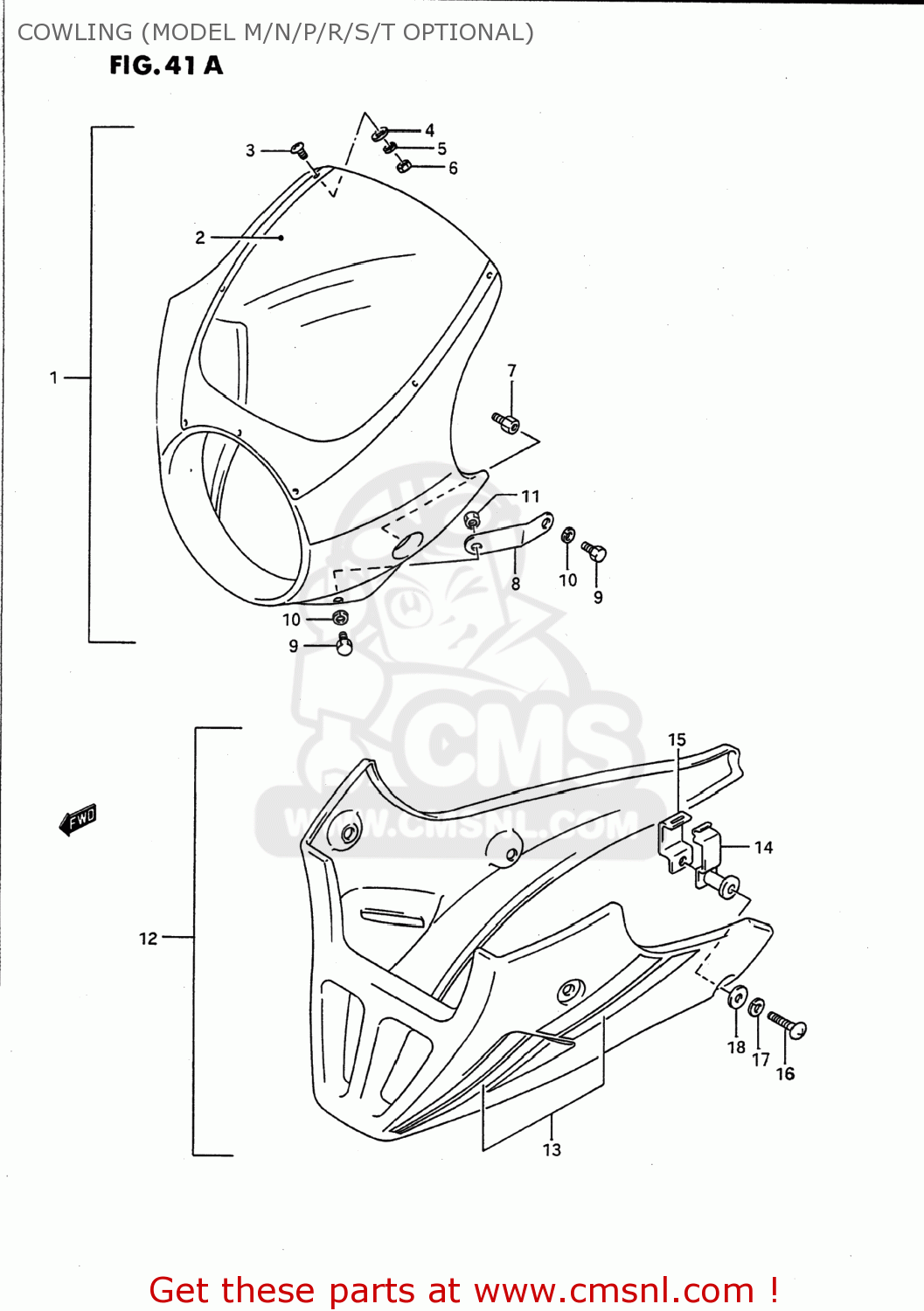

Cowling (model m/n/p/r/s/t optional) diagram GS500E 1993 (P) USA (E03)
COWLING (MODEL M/N/P/R/S/T OPTIONAL) GS500E 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9440201D6028V
ref: 1-1
COWLING SET,UPPER (RED)
€ 486.00
1-2
9440201D6033J
ref: 1-2
COWLING ASSY,UPR(BLACK)
€ 543.50
1-3
9440201D600FL
ref: 1-3
COWLING SET,UPPER (GREEN)
€ 543.50
1-4
9440201D600ZK
ref: 1-4
COWLING SET,UPPER (BLUE)
€ 543.50
1-5
9440201D601HU
ref: 1-5
COWLING SET,UPPER (PURPLE)
€ 370.50
1-6
9440201D601TU
ref: 1-6
COVER SET,UPPER COWLING
€ 426.50
1-7
9440201D6019A
ref: 1-7
COWLING ASSY,UPR(RED)
€ 652.50
1-8
9440201D601ZV
ref: 1-8
COVER SET,UPPER COWLING
€ 426.50
2
9443201D60
ref: 2
SCREEN,COWLING
€ 162.00
3
0214204123
ref: 3
02142-0412A
SCREW
€ 1.50
4
0832201043
ref: 4
08322-0104A
WASHER
€ 5.00
5
0832101045
ref: 5
LOCK WAHSER
€ 2.00
6
0831000043
ref: 6
08310-0004A
NUT
€ 2.00
7
9474101D60
ref: 7
BOLT,UPR COWLING HEADLAMP
€ 9.50
8
9451101D60
ref: 8
BRACE,UPR COWLING
€ 25.50
9
0157006167
ref: 9
BOLT
€ 2.50
10
0832101067
ref: 10
WASHER,LOCK
€ 2.50
11
0831000063
ref: 11
08310-0006A
NUT 6MM
€ 2.00
12-1
944700186028V
ref: 12-1
94470-01820-28V
COVER SET,UNDER COWLING
€ 506.50
12-10
94401018101ZV
ref: 12-10
COVER SET,UNDER COWLING
€ 555.00
12-11
944010181033J
ref: 12-11
94470-01870-33J
COVER SET,UNDER COWLING
€ 613.00
12-2
944700187033J
ref: 12-2
COVER SET,UNDER COWL
€ 613.00
12-3
94470018800FL
ref: 12-3
COVER SET,UNDER COWLING
€ 0.00
12-4
94470018900ZK
ref: 12-4
COVER SET,UNDER COWLING
€ 837.00
12-5
94401018101HU
ref: 12-5
COVER SET,UNDER COWLING
€ 516.50
12-5
94401018101HU
ref: 12-5
COVER SET,UNDER COWLING
€ 516.50
12-6
944010181028V
ref: 12-6
94470-01820-28V
COVER SET,UNDER COWLING
€ 506.50
12-6
944010181028V
ref: 12-6
94470-01820-28V
COVER SET,UNDER COWLING
€ 506.50
12-7
944010181033J
ref: 12-7
94470-01870-33J
COVER SET,UNDER COWLING
€ 613.00
12-7
944010181033J
ref: 12-7
94470-01870-33J
COVER SET,UNDER COWLING
€ 613.00
12-8
94401018101TU
ref: 12-8
COVER SET,UNDER COWLING
€ 555.00
12-9
944010181019A
ref: 12-9
COVER SET,UNDER COWLING
€ 555.00
13-1
6819001D50H05
ref: 13-1
TAPE SET,UNDER COWLING
€ 0.00
13-2
6819001D503VV
ref: 13-2
TAPE SET,UNDER COWLING
€ 0.00
13-3
6819001D50H06
ref: 13-3
TAPE SET,UNDER COWLING
€ 44.00
14
9458001D50
ref: 14
BRACKET,UNDER COWLING OUTER
€ 29.50
15
9458201D50
ref: 15
BRACKET,UNDER COWLING INNER
€ 17.50
16-1
0214206457
ref: 16-1
SCREW
€ 2.00
16-2
0211236457
ref: 16-2
SCREW
€ 0.00
17
0832101067
ref: 17
WASHER,LOCK
€ 2.50
18-1
0916006006
ref: 18-1
09160-06084
WASHER
€ 2.00
18-2
0916006084
ref: 18-2
WASHER(6.5X18X1.6)
€ 2.00
