STAND - REAR BRAKE
GS500E 1993 (P) USA (E03)

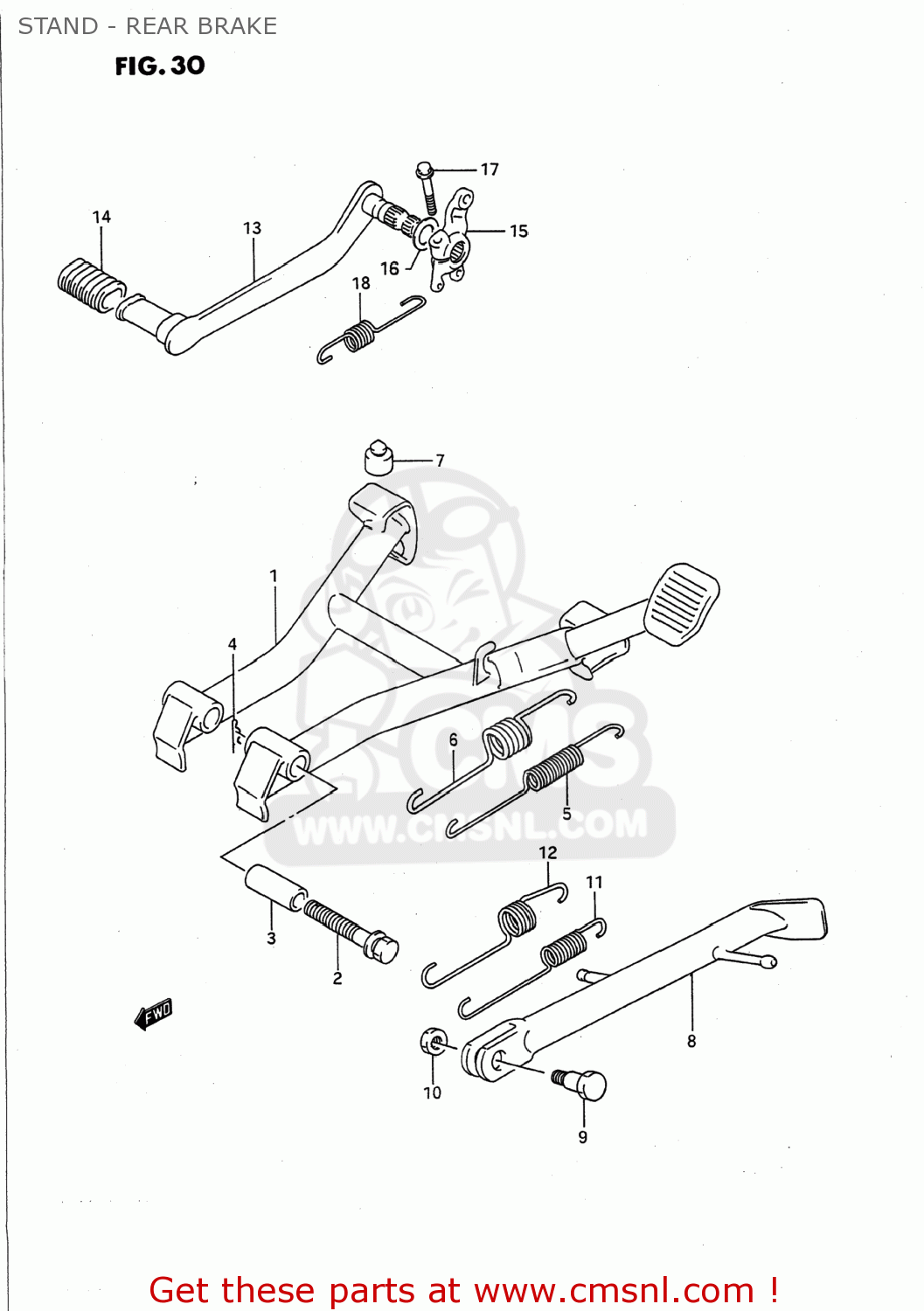

Stand - rear brake diagram GS500E 1993 (P) USA (E03)
STAND - REAR BRAKE GS500E 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4210001D00
ref: 1
STAND,CTR
€ 177.50
2-1
0911710050
ref: 2-1
09117-10029
BOLT 10X63
€ 6.50
2-2
0158010603
ref: 2-2
01580-1060B
BOLT
€ 3.50
3
0918010040
ref: 3
SPACER(10X16X38.8)
€ 3.00
4
0938510005
ref: 4
CLIP
€ 1.50
5
0944314059
ref: 5
SPRING
€ 9.50
6
0944322013
ref: 6
SPRING OUTER
€ 7.00
7
0932110017
ref: 7
CUSHION
€ 5.50
8-1
4231001D000FP
ref: 8-1
42310-01D00-019
STAND,SIDE
€ 50.50
8-2
4231001D00019
ref: 8-2
STAND,PROP(BLACK)
€ 50.50
8-3
4231001D10019
ref: 8-3
STAND,PROP(BLACK)
€ 138.00
9-1
0911110038
ref: 9-1
09111-10047
BOLT L:30
€ 4.50
9-2
0911110019
ref: 9-2
09111-10047
BOLT L:30
€ 4.50
9-3
0911110027
ref: 9-3
BOLT(10X34)
€ 3.50
10-1
0831000107
ref: 10-1
NUT
€ 2.50
10-2
0831000103
ref: 10-2
08310-0010A
NUT
€ 2.00
10-3
0914010043
ref: 10-3
NUT
€ 2.00
11-1
0944315042
ref: 11-1
09443-15046
SPRING
€ 7.50
11-2
0944315046
ref: 11-2
SPRING
€ 7.50
12-1
0944322014
ref: 12-1
09443-22017
SPRING
€ 7.00
12-2
0944322017
ref: 12-2
SPRING
€ 7.00
13-1
4311001D00
ref: 13-1
43110-01D12
PEDAL,BRAKE
€ 37.00
13-2
4311001D10
ref: 13-2
43110-01D12
PEDAL,BRAKE
€ 37.00
13-3
4311001D11
ref: 13-3
43110-01D12
PEDAL,BRAKE
€ 37.00
13-4
4311001D12
ref: 13-4
PEDAL,BRAKE
€ 37.00
14
2565249300
ref: 14
RUBBER,PEDAL
€ 5.50
15
4312101D00
ref: 15
ARM,BRAKE ROD
€ 26.00
16-1
4321204700
ref: 16-1
43212-04A00
WASHER
€ 2.00
16-2
4321204A00
ref: 16-2
WASHER,BRAKE PEDAL
€ 2.00
17-1
0155006257
ref: 17-1
BOLT
€ 2.50
17-2
0155006253
ref: 17-2
01550-0625A
BOLT
€ 2.50
18
0944313028
ref: 18
SPRING
€ 20.50
