HEADLAMP (MODEL R/S/T)

GS500E 1993 (P) USA (E03)

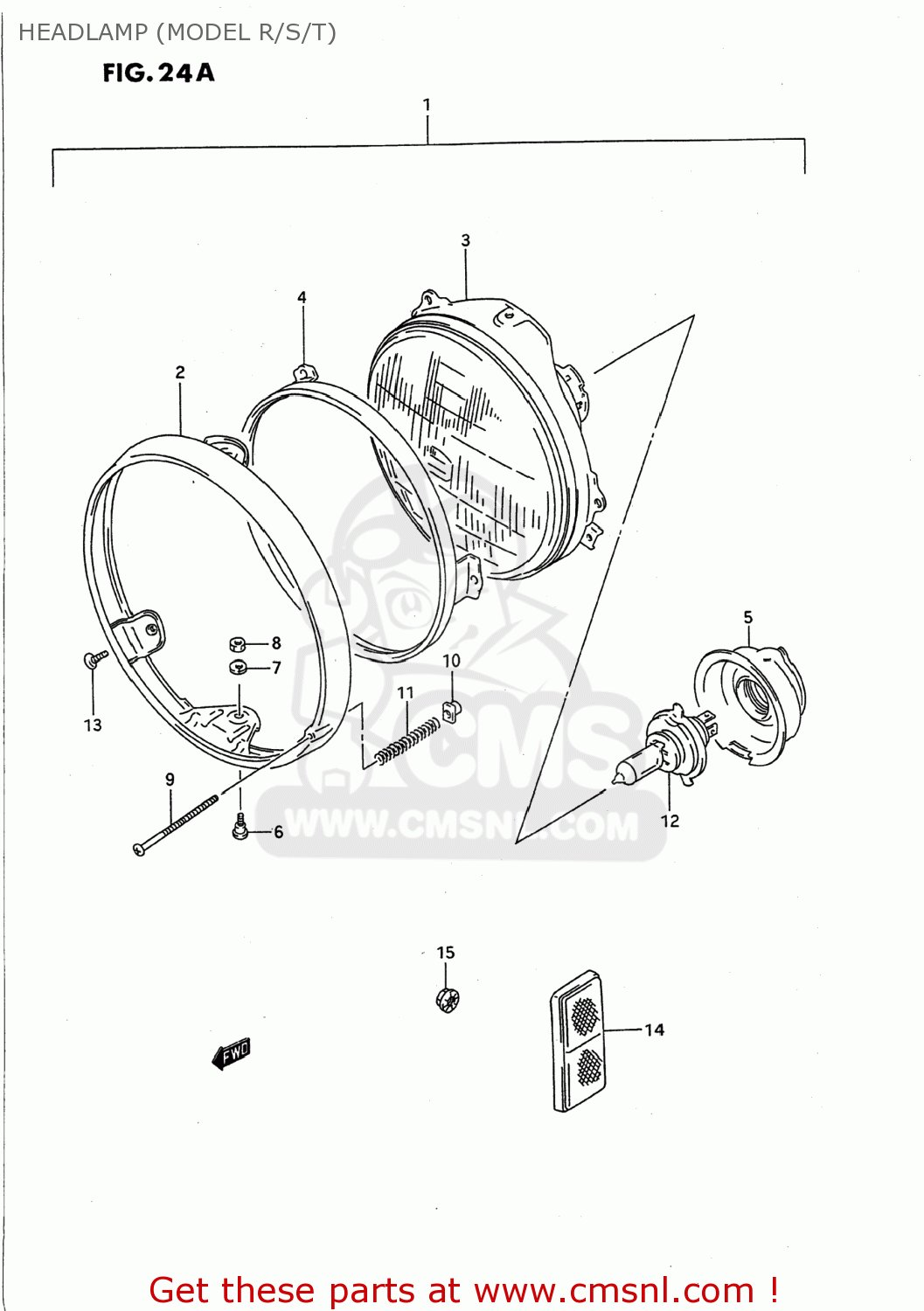

Headlamp (model r/s/t) diagram GS500E 1993 (P) USA (E03)

HEADLAMP (MODEL R/S/T) GS500E 1993 (P) USA (E03)
HEADLAMP (MODEL R/S/T) GS500E 1993 (P) USA (E03)
HEADLAMP (MODEL R/S/T) GS500E 1993 (P) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3510010D30999
ref: 1-1
35100-10D70-999
HEADLAMP ASSEMBLY
€ 244.00
1-2
3510010D31999
ref: 1-2
35100-10D70-999
HEADLAMP ASSEMBLY
€ 244.00
1-3
3510010D70999
ref: 1-3
HEADLAMP ASSY
3510010D70999
€ 244.00
2
3511101D20
ref: 2
RIM,HEADLAMP
3511101D20
€ 55.50
3
3512110D30
ref: 3
LAMP UNIT
€ 113.00
4-1
3512745030
ref: 4-1
RETAINING RING
3512745030
€ 19.50
4-2
3512710D20
ref: 4-2
RING
3512710D20
€ 22.00
5
3517320A01
ref: 5
COVER,SOCKET
3517320A01
€ 14.50
6
3518115611
ref: 6
H/LAMP LENS UNIT FITING SCRE
3518115611
€ 3.00
7
0832101057
ref: 7
08321-0105A
WASHER,LOCK
0832101057
€ 2.00
8
0831000053
ref: 8
08310-0005A
NUT
€ 2.50
9
3515145900
ref: 9
SCREW
3515145900
€ 4.00
10
3515215611
ref: 10
NUT
3515215611
€ 3.50
11
3515431900
ref: 11
SPRING,ADJUSTING
3515431900
€ 3.50
12
0947112060
ref: 12
BULB(12V60/55W,H4)
0947112060
€ 8.00
13
0212205127
ref: 13
SCREW
0212205127
€ 2.50
14
3595043431
ref: 14
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
15-1
0831626055
ref: 15-1
08316-2005A
NUT
0831626055
€ 2.00
15-2
0831620053
ref: 15-2
08316-2005A
NUT
0831620053
€ 2.00
