GENERATOR

GS500E 1993 (P) USA (E03)

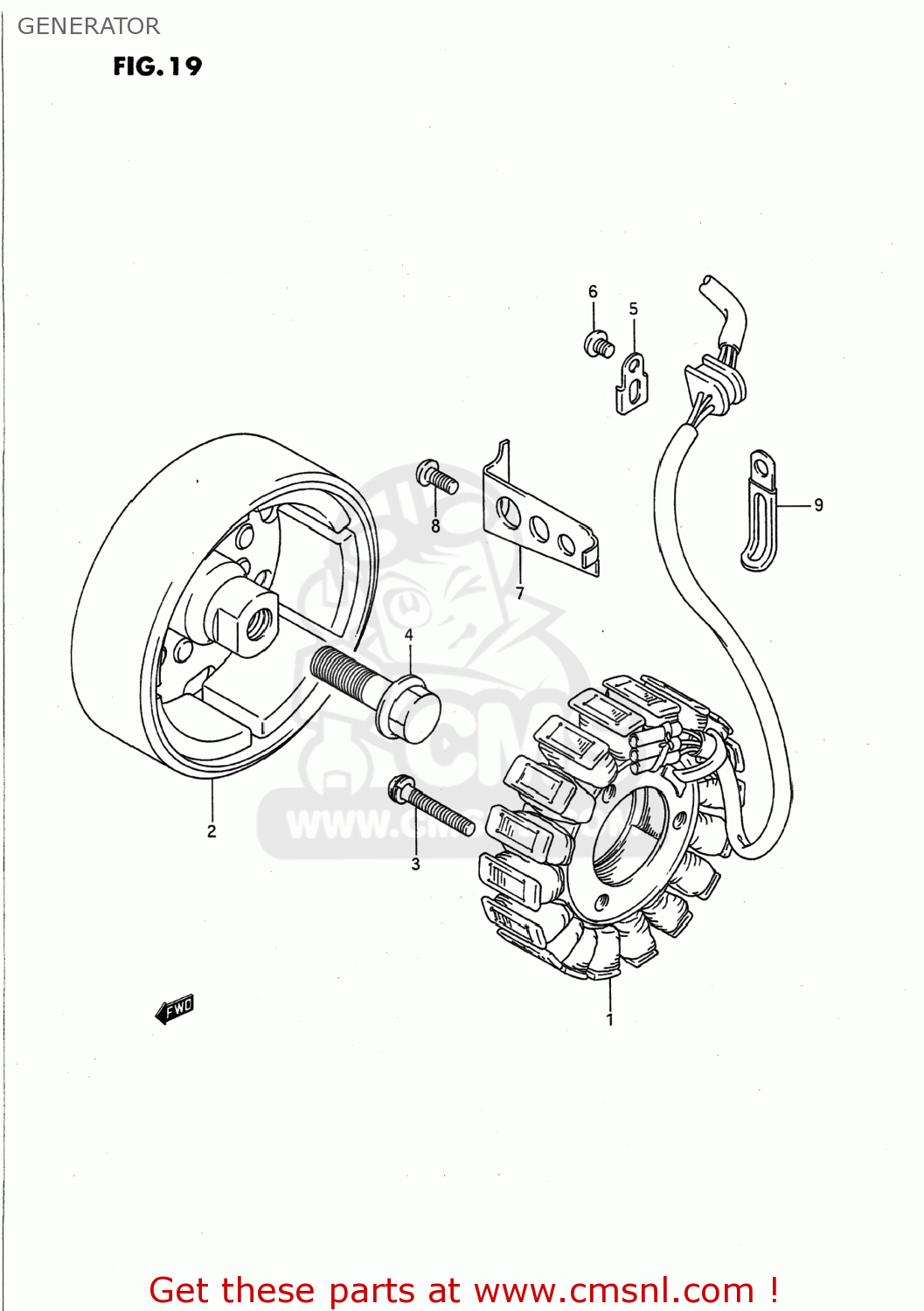

Generator diagram GS500E 1993 (P) USA (E03)

GENERATOR GS500E 1993 (P) USA (E03)

GENERATOR GS500E 1993 (P) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140147030
ref: 1

STARTER ASSY

€ 371.00

2-1

3140247031
ref: 2-1
31402-45030

ROTOR ASSEMBLY

€ 385.00

2-2

3140245030
ref: 2-2

ROTOR ASSY

€ 385.00

3-1

0211235307
ref: 3-1

SCREW

€ 1.50

3-2

0211235303
ref: 3-2
02112-3530A

SCREW

€ 2.50

4

0910312004
ref: 4

BOLT(12X40)

€ 3.00

5

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

6-1

0211205087
ref: 6-1

SCREW

€ 2.00

6-2

0211205083
ref: 6-2
02112-0508A

SCREW

€ 2.00

7

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

8-1

0211206107
ref: 8-1

SCREW

€ 1.50

8-2

0211206103
ref: 8-2
02112-0610B

SCREW

€ 1.50

9-1

0940406402
ref: 9-1
09404-06432

CLAMP

€ 2.50

9-2

0940406429
ref: 9-2

CLAMP(L:45)

€ 2.50
