CYLINDER

GS500E 1993 (P) USA (E03)

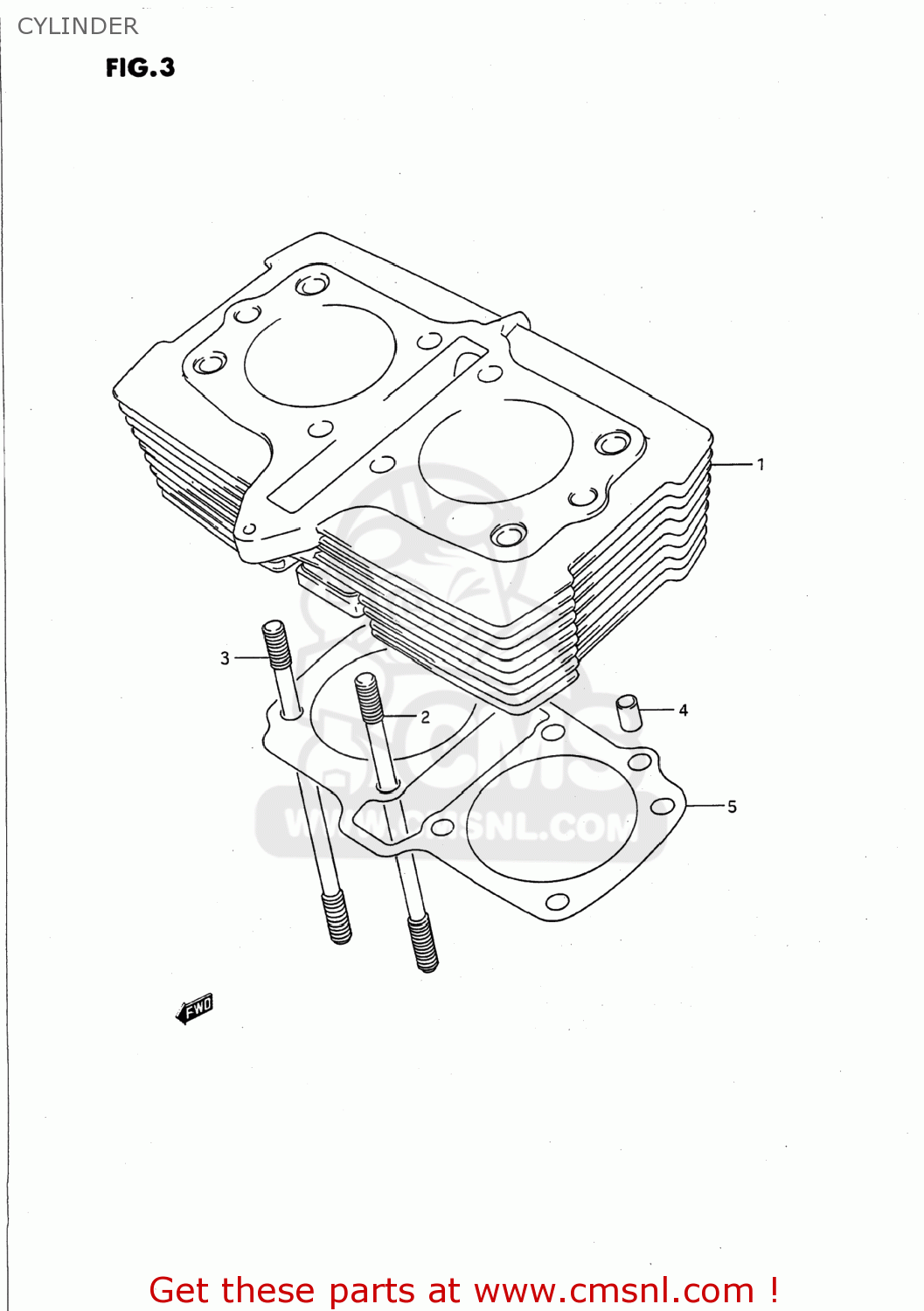

Cylinder diagram GS500E 1993 (P) USA (E03)

CYLINDER GS500E 1993 (P) USA (E03)

CYLINDER GS500E 1993 (P) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121001D01
ref: 1

CYLINDER

€ 522.50

2

0910810112
ref: 2

BOLT,STUD

€ 9.00

3-1

0910810039
ref: 3-1
09108-10041

STUD

€ 9.00

3-2

0910810111
ref: 3-2

STUD

€ 9.00

4

0421111189
ref: 4

PIN

€ 2.00

5

1124101D00
ref: 5

GASKET,CYLINDER (NAS)

€ 9.50
