CLUTCH

GS500E 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

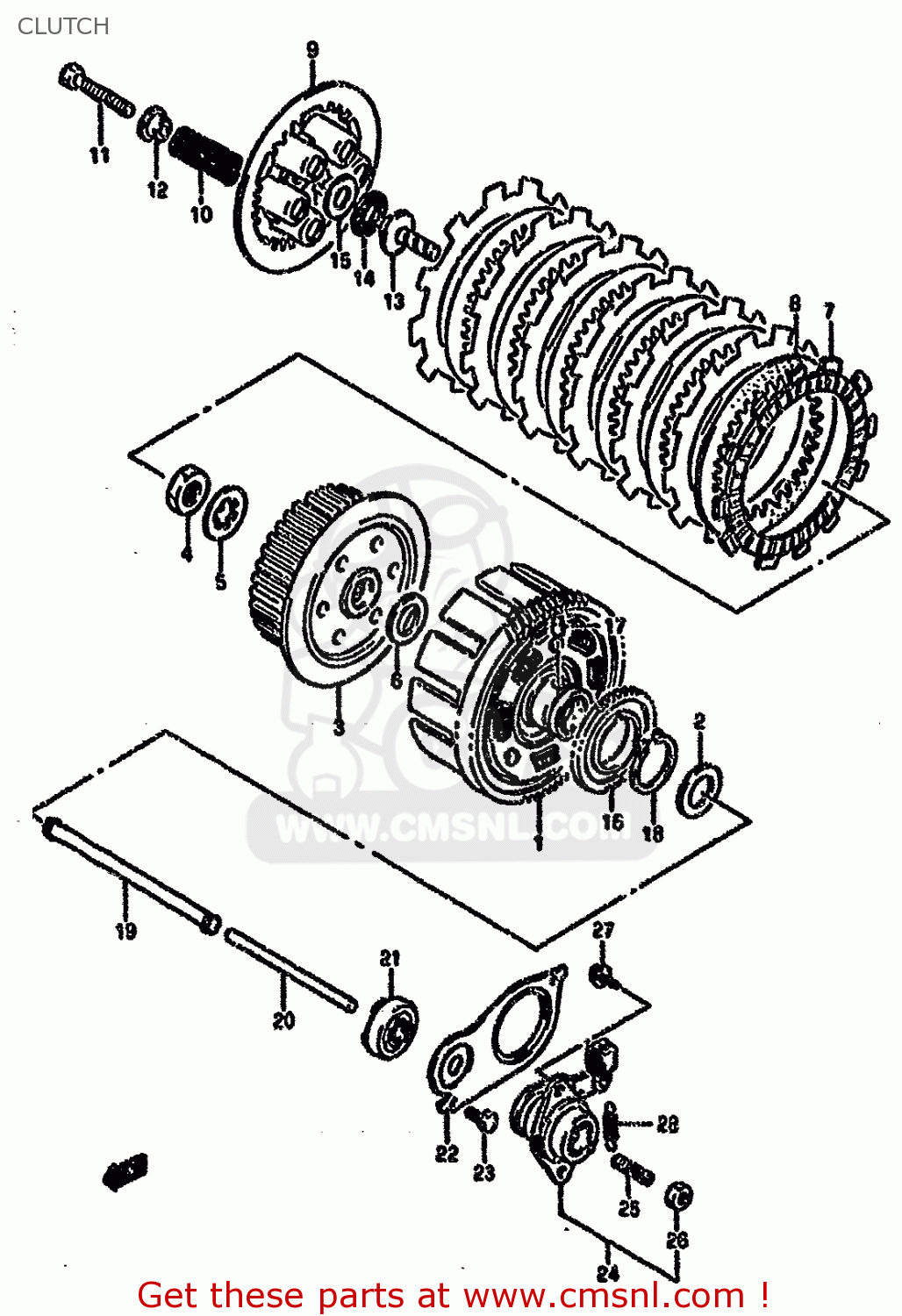

Clutch diagram GS500E 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

CLUTCH GS500E 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
CLUTCH GS500E 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
CLUTCH GS500E 1996 (T) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
2120044101
ref: 1-1
MODEL K/L/M/N/P/R
GEAR ASSEMBLY,PRIMARY DRIVE
€ 333.00
1-2
2120044102
ref: 1-2
MODEL S/T
GEAR ASSY,PRI DRIVEN
€ 333.00
2
0821125381
ref: 2
WASHER
0821125381
€ 3.00
3
2141144101
ref: 3
HUB,CLUTCH SLEEVE
2141144101
€ 56.50
4
0914020002
ref: 4
NUT (20MM)
0914020002
€ 3.50
5
0916720009
ref: 5
-09167-20006
WASHER,LOCK
0916720009
€ 3.00
6
0916020015
ref: 6
WASHER(20X44X3)
0916020015
€ 4.50
7
2144137400
ref: 7
PLATE,CLUTCH DRIVE (NAS)
2144137400
€ 20.50
8-1
2145145000
ref: 8-1
MODEL K/L/M/N/P
PLATE,CLUTCH DRIVEN (NAS)
2145145000
€ 10.50
8-2
2145128C30
ref: 8-2
MODEL R/S/T
PLATE,CLUTCH DRIVEN T: (NAS)
2145128C30
€ 10.50
9-1
2146216501
ref: 9-1
MODEL K/L/M/N/P
DISC,CLUTCH PRESSURE
€ 51.00
9-2
2146214301
ref: 9-2
MODEL R/S/T
DISC,CLUTCH PRESSURE
2146214301
€ 51.00
10
0944020019
ref: 10
SPRING
0944020019
€ 8.00
11
0910006145
ref: 11
BOLT(6X40)
0910006145
€ 2.50
12
2141401D00
ref: 12
SPACER,CLUTCH SLEEVE HUB
2141401D00
€ 5.50
13
2312144100
ref: 13
PIECE,CLUTCH PUSH
2312144100
€ 21.50
14
0926315003
ref: 14
BEARING(15X28X2)
0926315003
€ 7.00
15-1
0916015015
ref: 15-1
MODEL K/L/M/N/P
WASHER
€ 4.00
15-2
0916015045
ref: 15-2
MODEL R/S/T
WASHER(15.5X28X1)
0916015045
€ 4.00
16-1
1632101D00
ref: 16-1
MODEL K/L
GEAR,OIL PUMP DRIVE
€ 53.00
16-2
1632101D10
ref: 16-2
MODEL M/N/P/R/S/T
GEAR,OIL PUMP DRIVE(NT:39)
1632101D10
€ 53.00
17
0926106002
ref: 17
PIN(6X6)
0926106002
€ 1.50
18
0833131383
ref: 18
CIRCLIP
0833131383
€ 2.50
19
2311044111
ref: 19
ROD,PUSH,R
2311044111
€ 13.00
20
2311124A01
ref: 20
ROD,CLUTCH PUSH,L
2311124A01
€ 15.00
21
0928506011
ref: 21
SEAL,OIL(6X34X10)
0928506011
€ 9.50
22
2311744102
ref: 22
RETAINER,PUSH ROD OIL SEAL
2311744102
€ 6.50
23-1
0110706127
ref: 23-1
MODEL K/L/M/N/P
BOLT
0110706127
€ 2.00
23-2
0150006123
ref: 23-2
MODEL R/S/T
BOLT
0150006123
€ 2.00
24
2320001D00
ref: 24
SCREW ASSY,CLUTCH RELEASE
2320001D00
€ 78.00
25
0913406010
ref: 25
SCREW(6X25)
0913406010
€ 3.00
26
0831000067
ref: 26
NUT
0831000067
€ 2.50
27-1
0311116168
ref: 27-1
MODEL K/L/M/N/P
SCREW
€ 2.00
27-2
0314106163
ref: 27-2
MODEL R/S/T
SCREW 6X16
0314106163
€ 2.00
28
0944308001
ref: 28
SPRING
0944308001
€ 3.00
