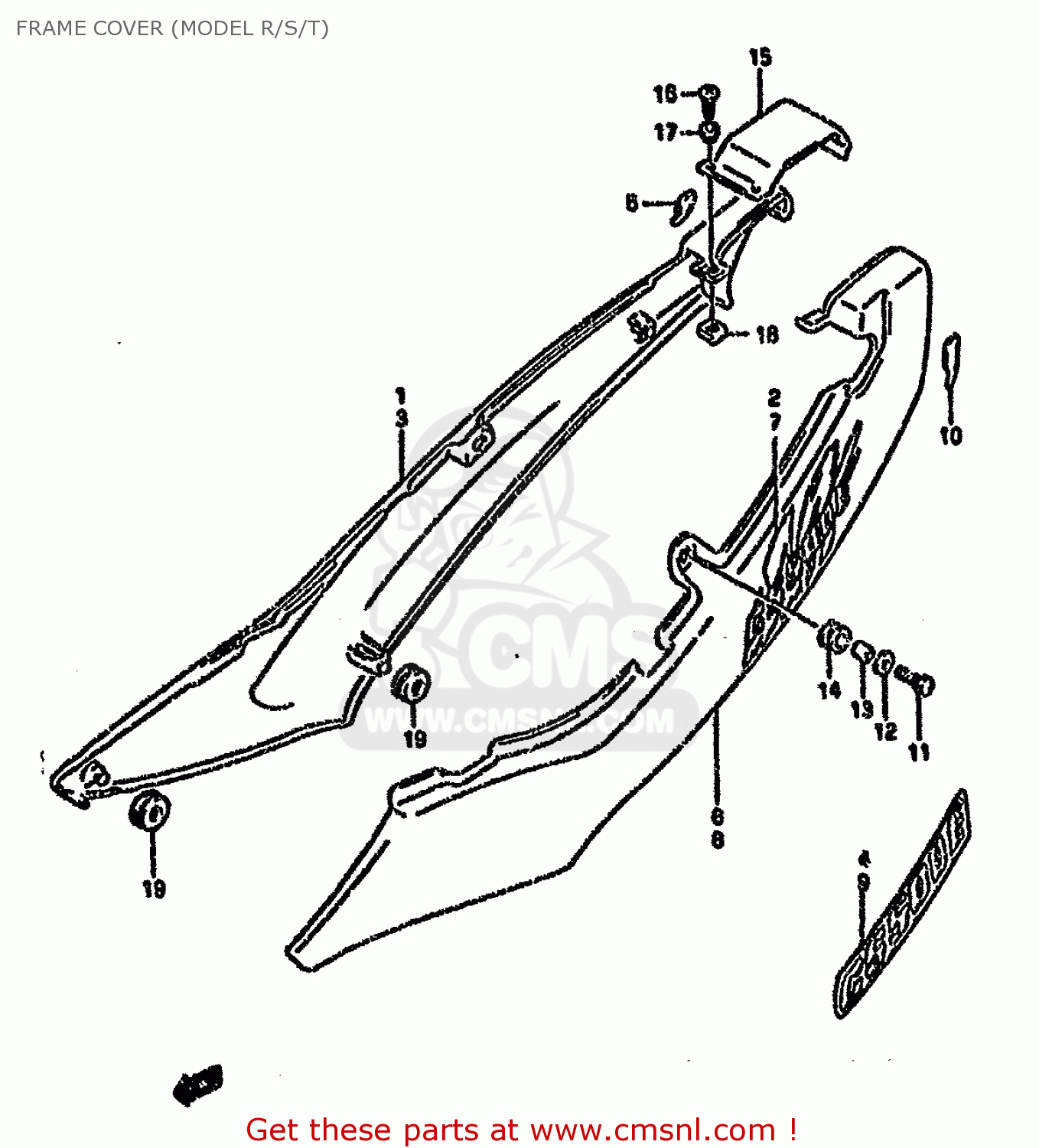

FRAME COVER (MODEL R/S/T)

ref

part #

description

quantity

1-1

4711001DC019A
ref: 1-1
MODEL R

COVER COMP,FRAME,RIGHT

€ 259.00

1-2

4711001DC033J
ref: 1-2
MODEL R/S

COVER,FRAME,R(BLACK)

€ 207.50

1-3

4711001DC01TU
ref: 1-3
MODEL R/S

COVER,FRAME,R(PURPLE)

€ 207.50

1-4

4711001DC01ZV
ref: 1-4
MODEL S

COVER,FRAME,RIGHT

€ 218.00

2-1

6813101D20C1W
ref: 2-1
MODEL R FOR 19A

EMBLEM,FRAME COVER

€ 32.00

2-2

6813101D20C1Y
ref: 2-2
MODEL R/S FOR 33J

EMBLEM,FRAME COVER

€ 29.00

2-3

6813101D20C1Z
ref: 2-3
MODEL R/S FOR 1TU

EMBLEM,FRAME COVER

€ 29.00

2-4

6813101D20D0V
ref: 2-4
MODEL S FOR 1ZV

EMBLEM,FRAME COVER

€ 42.00

3-1

4711001DE019A
ref: 3-1
MODEL T

COVER COMP,FRAME,RIGHT

€ 259.00

3-2

4711001DE033J
ref: 3-2
MODEL T

COVER COMP,FRAME,RIGHT

€ 219.50

3-3

4711001DE01ZV
ref: 3-3
MODEL T

COVER,FRAME,R(GREEN)

€ 222.00

4-1

6813101D3087N
ref: 4-1
MODEL T FOR 19A

EMBLEM,FRAME COVER

€ 16.00

4-2

6813101D30E5H
ref: 4-2
MODEL T FOR 33J

EMBLEM,FRAME COVER

€ 16.00

4-3

6813101D303SC
ref: 4-3
MODEL T FOR 1ZV

EMBLEM,FRAME COVER

€ 17.00

5

4711901D00
ref: 5

PROTECTOR,FRAME COVER,R

€ 7.00

6-1

4721001DC019A
ref: 6-1
MODEL R

COVER,FRAME,L(RED)

€ 178.00

6-2

4721001DC033J
ref: 6-2
MODEL R/S

COVER,FRAME,L(BLACK)

€ 207.50

6-3

4721001DC01TU
ref: 6-3
MODEL R/S

COVER COMP,FRAME,LEFT

€ 194.00

6-4

4721001DC01ZV
ref: 6-4
MODEL S

COVER,FRAME,LEFT

€ 218.00

7-1

6813101D20C1W
ref: 7-1
MODEL R FOR 19A

EMBLEM,FRAME COVER

€ 32.00

7-2

6813101D20C1Y
ref: 7-2
MODEL R/S FOR 33J

EMBLEM,FRAME COVER

€ 29.00

7-3

6813101D20C1Z
ref: 7-3
MODEL R/S FOR 1TU

EMBLEM,FRAME COVER

€ 29.00

7-4

6813101D20D0V
ref: 7-4
MODEL S FOR 1ZV

EMBLEM,FRAME COVER

€ 42.00

8-1

4721001DE019A
ref: 8-1
MODEL T

COVER,FRAME,L(RED)

€ 222.00

8-2

4721001DE033J
ref: 8-2
MODEL T

COVER,FRAME,L(BLACK)

€ 222.00

8-3

4721001DE01ZV
ref: 8-3
MODEL T

COVER,FRAME,L(GREEN)

€ 222.00

9-1

6813101D3087N
ref: 9-1
MODEL T FOR 19A

EMBLEM,FRAME COVER

€ 16.00

9-2

6813101D30E5H
ref: 9-2
MODEL T FOR 33J

EMBLEM,FRAME COVER

€ 16.00

9-3

6813101D303SC
ref: 9-3
MODEL T FOR 1ZV

EMBLEM,FRAME COVER

€ 17.00

10

4721901D00
ref: 10

PROTECTOR,FRAME COVER,L

€ 7.00

11-1

0912806057
ref: 11-1
MODEL R

BOLT(6X20)

€ 2.00

11-2

0911606010
ref: 11-2
MODEL S/T

BOLT(6X20)

€ 2.00

12

0916006057
ref: 12
MODEL R

WASHER

€ 2.00

13

0918006011
ref: 13

SPACER (6.1X9X9)

€ 2.00

14

0932009016
ref: 14

CUSHION

€ 2.50

15-1

4721501D0019A
ref: 15-1
MODEL R/T

COVER,FRAME CTR

€ 33.00

15-2

4721501D0033J
ref: 15-2

COVER,FRAME CTR

€ 36.50

15-3

4721501D001TU
ref: 15-3
MODEL R/S

COVER,FRAME CTR

€ 38.50

15-4

4721501D001ZV
ref: 15-4
MODEL S/T

COVER,FRAME CTR

€ 30.50

16

0324105123
ref: 16

SCREW L:12

€ 1.50

17

0916105017
ref: 17

WASHER(5.2X14X1.5)

€ 3.00

18-1

0914805013
ref: 18-1
MODEL R/S

NUT

€ 1.50

18-2

0914805004
ref: 18-2
MODEL T

NUT

€ 1.50

19

0932008018
ref: 19

CUSHION

€ 4.00
