SIGNAL GENERATOR

GS500E 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

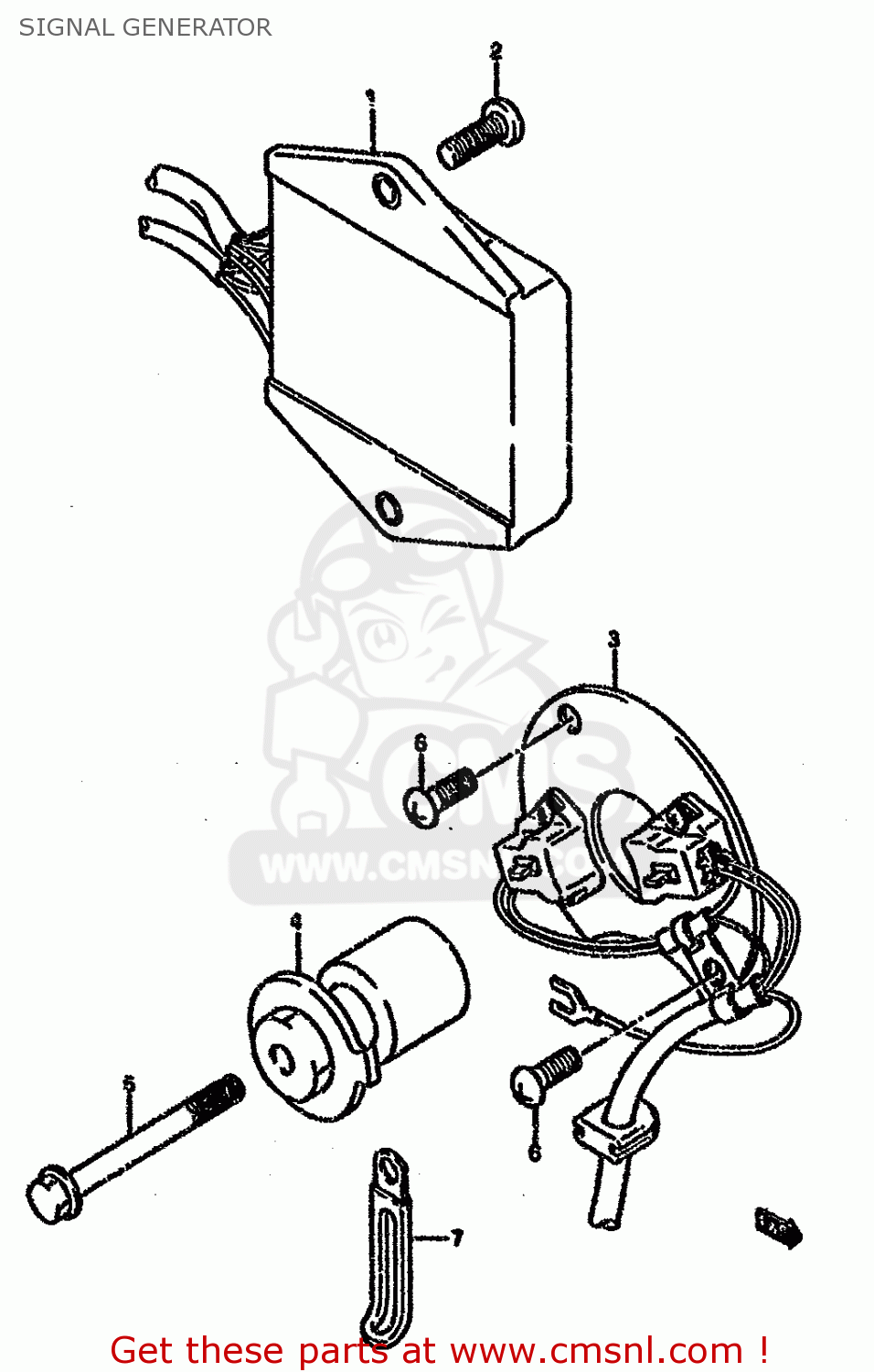

Signal generator diagram GS500E 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

SIGNAL GENERATOR GS500E 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

SIGNAL GENERATOR GS500E 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3290001D20
ref: 1
-32900-01D00

IGNITOR ASSY

€ 487.50

2-1

0215206165
ref: 2-1
MODEL K/L/M/N/P/R

SCREW

€ 2.00

2-2

0214206163
ref: 2-2
MODEL S/T

SCREW

€ 2.50

3

3311044420
ref: 3

SIGNAL GENERATOR ASSY

€ 292.50

4

3312001D00
ref: 4

ROTOR,SIGNAL

€ 90.50

5-1

0910306121
ref: 5-1
MODEL K/L/M/N/P/R

BOLT

€ 2.50

5-2

0910306064
ref: 5-2
MODEL S/T

BOLT(6X60)

€ 2.50

6-1

0912505024
ref: 6-1
MODEL K/L/M/N/P

SCREW(5X12)

€ 2.00

6-2

0211205103
ref: 6-2
MODEL R/S/T

SCREW

€ 2.00

7-1

0940406422
ref: 7-1
MODEL K/L/M/N/P/R/S

CLAMP

€ 2.50

7-2

0940406429
ref: 7-2
MODEL T

CLAMP(L:45)

€ 2.50

all assemblies
