STARTER CLUTCH

GS500E 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

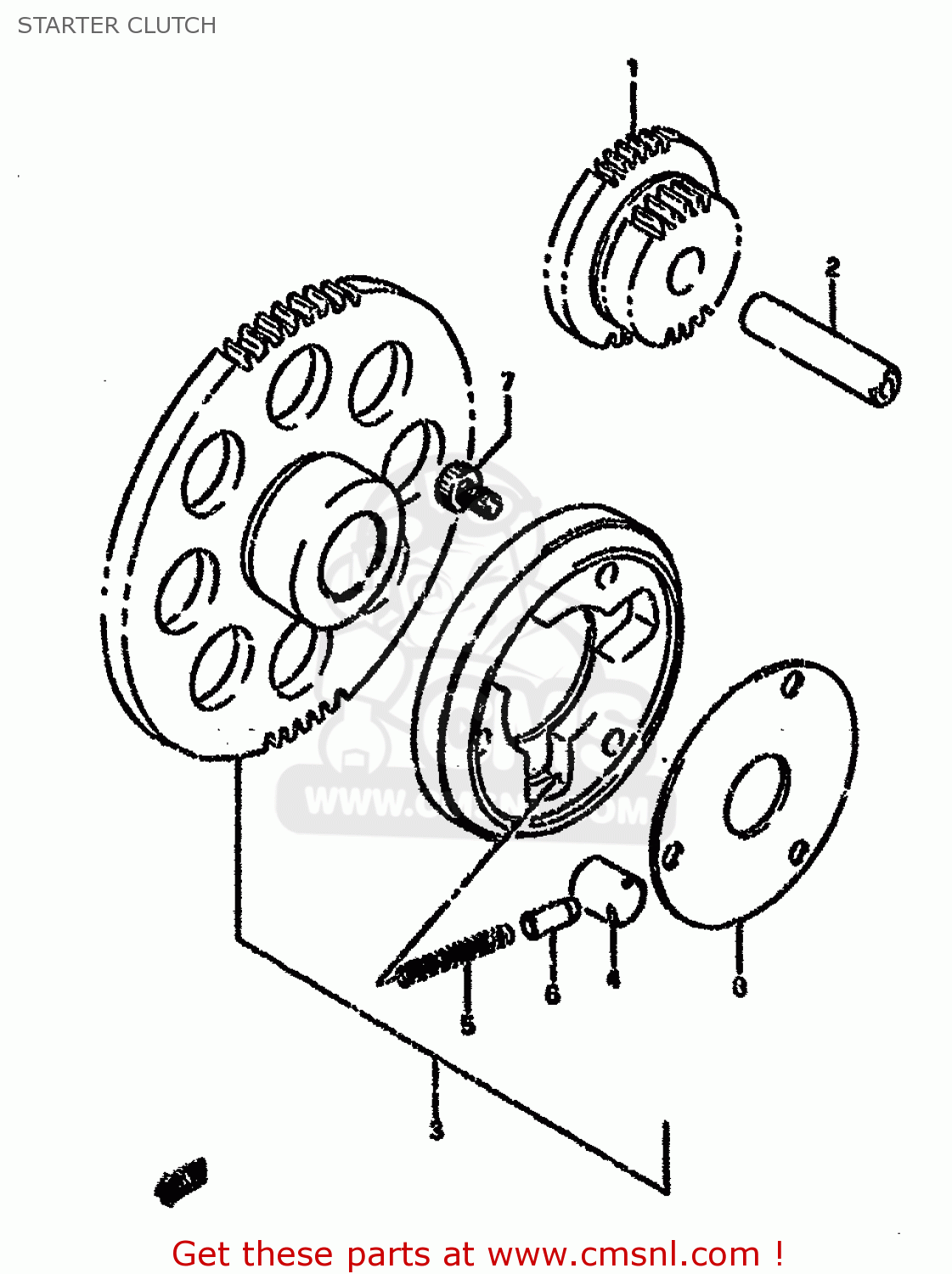

Starter clutch diagram GS500E 1996 (T) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1261101D00
ref: 1

GEAR,STARTER IDLE

€ 73.50

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3-1

1260044831
ref: 3-1
~F.NO.GM51A-108421~F

CLUTCH SET,STARTER

€ 313.00

3-2

1260044833
ref: 3-2
F.NO.GM51A-108422~F.

CLUTCH SET,STARTER

€ 313.00

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

0944004015
ref: 5

SPRING

€ 2.50

1263331000
ref: 6

PIECE,PUSH

€ 9.00

0713008163
ref: 7

BOLT

€ 3.00

1264945000
ref: 8

SHIM,STARTER CLUTCH HUB

€ 7.00
