BATTERY
GS500E 1997 (V) USA CANADA (E03) (E28)

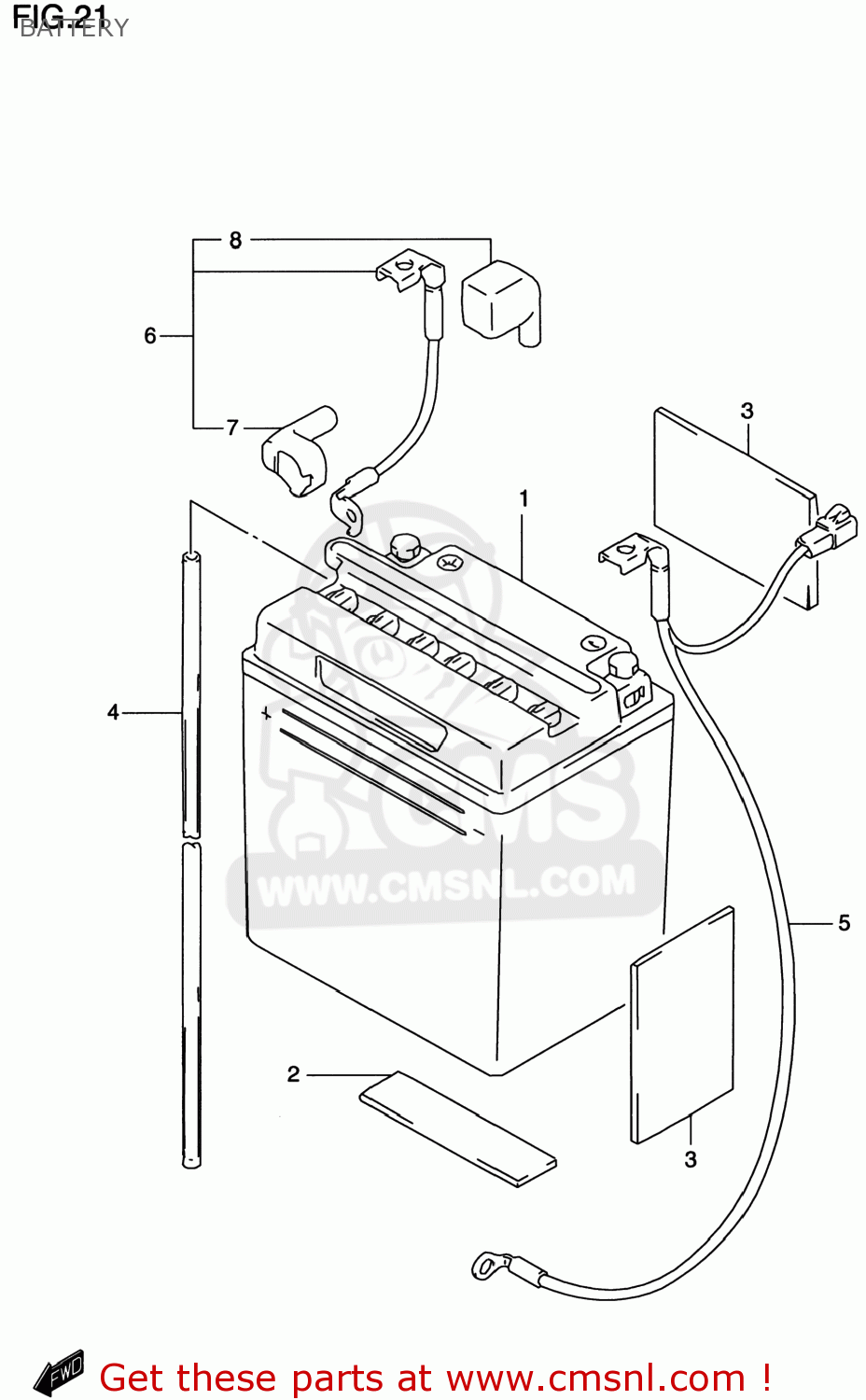

Battery diagram GS500E 1997 (V) USA CANADA (E03) (E28)
BATTERY GS500E 1997 (V) USA CANADA (E03) (E28)
×
prices are in EUR
ref
part #
description
quantity
1
3361001D00
ref: 1
33610-04A20
BATTERY ASSY (12V)
€ 78.50
2
3365219B00
ref: 2
CUSHION,BATTERY(80X27X3)
€ 4.50
2
3365219B00
ref: 2
CUSHION,BATTERY(80X27X3)
€ 4.50
3
3365137000
ref: 3
PROTECTOR(170X95X3.0)
€ 5.00
3
3365137000
ref: 3
PROTECTOR(170X95X3.0)
€ 5.00
4
3368016A10
ref: 4
HOSE,BATTERY EXHAUST(L:780)
€ 4.50
5
3386001D00
ref: 5
WIRE,BATTERY MINUS LEAD
€ 16.50
6
3387001D00
ref: 6
WIRE,BATTERY PLUS LEAD
€ 23.50
7
3362401D00
ref: 7
CAP,STARTER RELAY TERMINAL
€ 7.50
8
3362443500
ref: 8
CAP,BATTERY PLUS TERMINAL
€ 3.50
