HEADLAMP HOUSING

GS500E 1997 (V) USA CANADA (E03) (E28)

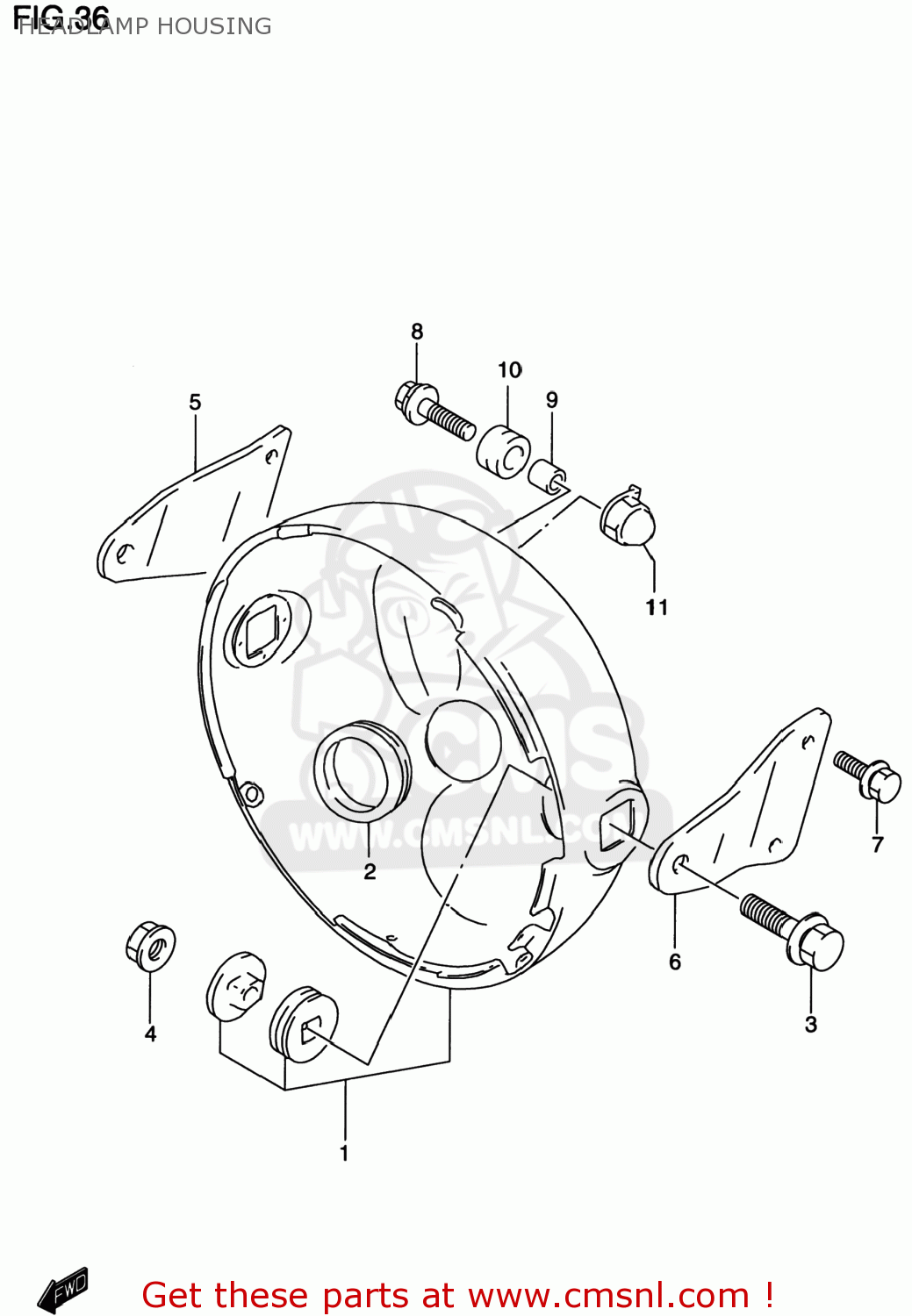

Headlamp housing diagram GS500E 1997 (V) USA CANADA (E03) (E28)

prices are in EUR

ref

part #

description

quantity

1-1

5181001D21
ref: 1-1

HOUSING,HEADLAMP

€ 120.00

1-2

5181001D11
ref: 1-2

HOUSING,HEADLAMP

€ 124.00

2-1

5181701D00
ref: 2-1
51817-01D01

GROMMET

€ 4.50

2-2

5181701D01
ref: 2-2

GROMMET

€ 4.50

0155008307
ref: 3

BOLT

€ 3.50

0831610083
ref: 4
08316-1008B

NUT

€ 3.00

5185101D11
ref: 5
51011-0BE00

STAY,HEADLAMP HOUSING,R

€ 29.00

5186101D11
ref: 6
51011-0BE00

STAY,HEADLAMP HOUSING,L

€ 29.00

0155006127
ref: 7

BOLT

€ 2.50

0911806007
ref: 8
09118-06086

BOLT

€ 3.00

0918007004
ref: 9

SPACER(6.5X10.5X12)

€ 2.50

0932010015
ref: 10

CUSHION

€ 2.50

5181506C00
ref: 11

PLATE,HEADLAMP

€ 5.00
