FUEL TANK(MODEL Y)

GS500E 1997 (V) USA CANADA (E03) (E28)

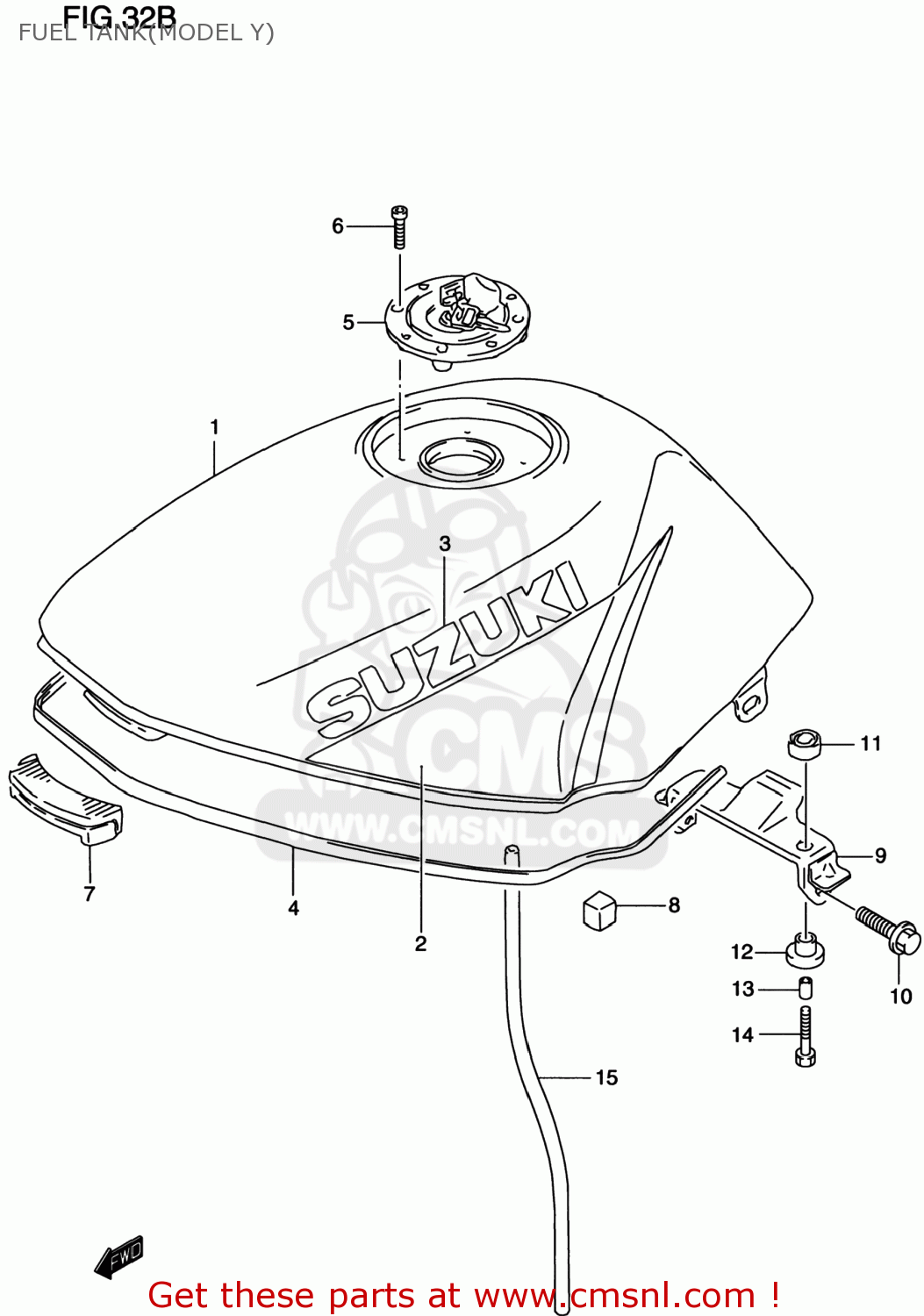

Fuel tank(model y) diagram GS500E 1997 (V) USA CANADA (E03) (E28)

prices are in EUR

ref

part #

description

quantity

1-1

4410001DF033J
ref: 1-1
44100-01DF2-33J

TANK ASSEMBLY,FUEL

€ 570.00

1-2

4410001DH033J
ref: 1-2

TANK ASSY,FUEL(BLACK)

€ 0.00

6811001D60J6D
ref: 2

TAPE SET,FUEL TANK

€ 46.50

6811112C0013L
ref: 3
68111-12C30-13L

EMBLEM,FUEL TANK

€ 18.00

6824104X5000B
ref: 4

MOLDING

€ 23.00

5-1

4420101832
ref: 5-1

CAP SET,FUEL TANK

€ 204.00

5-2

4420101842
ref: 5-2

CAP SET,FUEL

€ 160.50

0910605017
ref: 6

BOLT(5X20)

€ 3.00

4451134A00
ref: 7

CUSHION,FUEL TANK FR

€ 15.00

4454548B10
ref: 8

CUSHION,FUEL TANK SIDE

€ 10.00

4455001D01
ref: 9

BRACKET,FUEL TANK RR

€ 25.50

0155008403
ref: 10
01550-0840A

BOLT

€ 3.50

0932014017
ref: 11

CUSHION

€ 3.00

0932010038
ref: 12

CUSHION

€ 4.00

0918006271
ref: 13

SPACER(6.5X9X18)

€ 2.00

0911606172
ref: 14

BOLT(6X30)

€ 2.50

4442301D00
ref: 15

HOSE,WATER DRAIN

€ 14.00

FUEL TANK(MODEL Y)

all assemblies
