STAND - REAR BRAKE

GS500E 1997 (V) USA CANADA (E03) (E28)

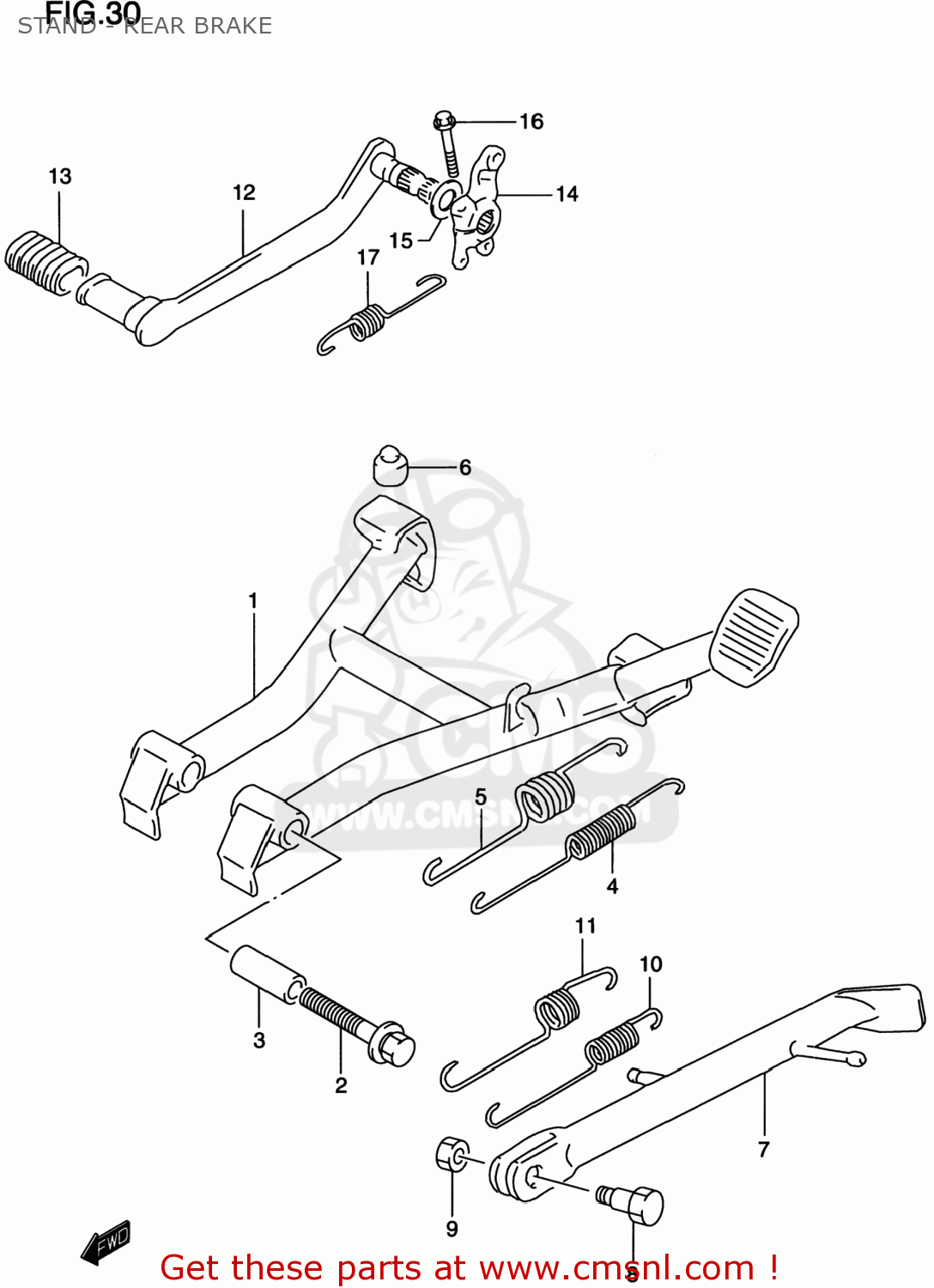

Stand - rear brake diagram GS500E 1997 (V) USA CANADA (E03) (E28)

prices are in EUR

ref

part #

description

quantity

4210001D00
ref: 1

STAND,CTR

€ 177.50

0158010603
ref: 2
01580-1060B

BOLT

€ 3.50

0918010040
ref: 3

SPACER(10X16X38.8)

€ 3.00

0944314059
ref: 4

SPRING

€ 9.50

0944322013
ref: 5

SPRING OUTER

€ 7.00

0932110017
ref: 6

CUSHION

€ 5.50

4231001D10019
ref: 7

STAND,PROP(BLACK)

€ 138.00

0911110027
ref: 8

BOLT(10X34)

€ 3.50

9-1

0915910027
ref: 9-1

NUT

€ 3.00

9-2

0831921103
ref: 9-2
08319-2110A

NUT

€ 2.00

0944315046
ref: 10

SPRING

€ 7.50

0944322017
ref: 11

SPRING

€ 7.00

4311001D12
ref: 12

PEDAL,BRAKE

€ 37.00

2565249300
ref: 13

RUBBER,PEDAL

€ 5.50

4312101D00
ref: 14

ARM,BRAKE ROD

€ 26.00

4321204A00
ref: 15

WASHER,BRAKE PEDAL

€ 2.00

0155006253
ref: 16
01550-0625A

BOLT

€ 2.50

0944313028
ref: 17

SPRING

€ 20.50
