CYLINDER

GS500E 1997 (V) USA CANADA (E03) (E28)

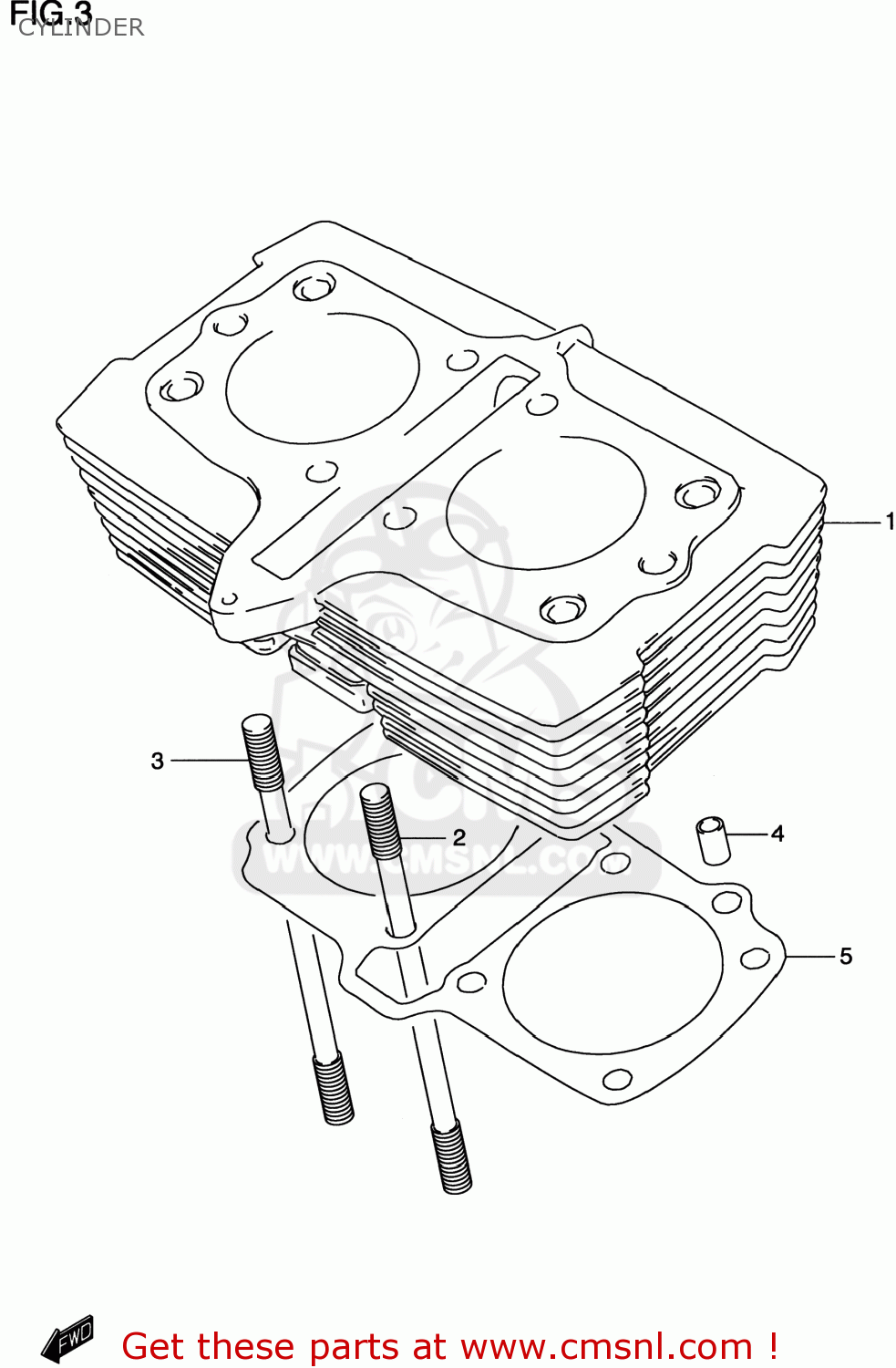

Cylinder diagram GS500E 1997 (V) USA CANADA (E03) (E28)

CYLINDER GS500E 1997 (V) USA CANADA (E03) (E28)

CYLINDER GS500E 1997 (V) USA CANADA (E03) (E28)

prices are in EUR

ref

part #

description

quantity

1-1

1121001D20
ref: 1-1
11210-01D20-0F0

CYLINDER

€ 791.50

1-2

1121001D200F0
ref: 1-2

CYLINDER

€ 791.50

2

0910810112
ref: 2

BOLT,STUD

€ 9.00

3

0910810041
ref: 3

BOLT,STUD

€ 9.00

4

0421111189
ref: 4

PIN

€ 2.00

5

1124101D00
ref: 5

GASKET,CYLINDER (NAS)

€ 9.50
