CYLINDER HEAD COVER

GS500E 1997 (V) USA CANADA (E03) (E28)

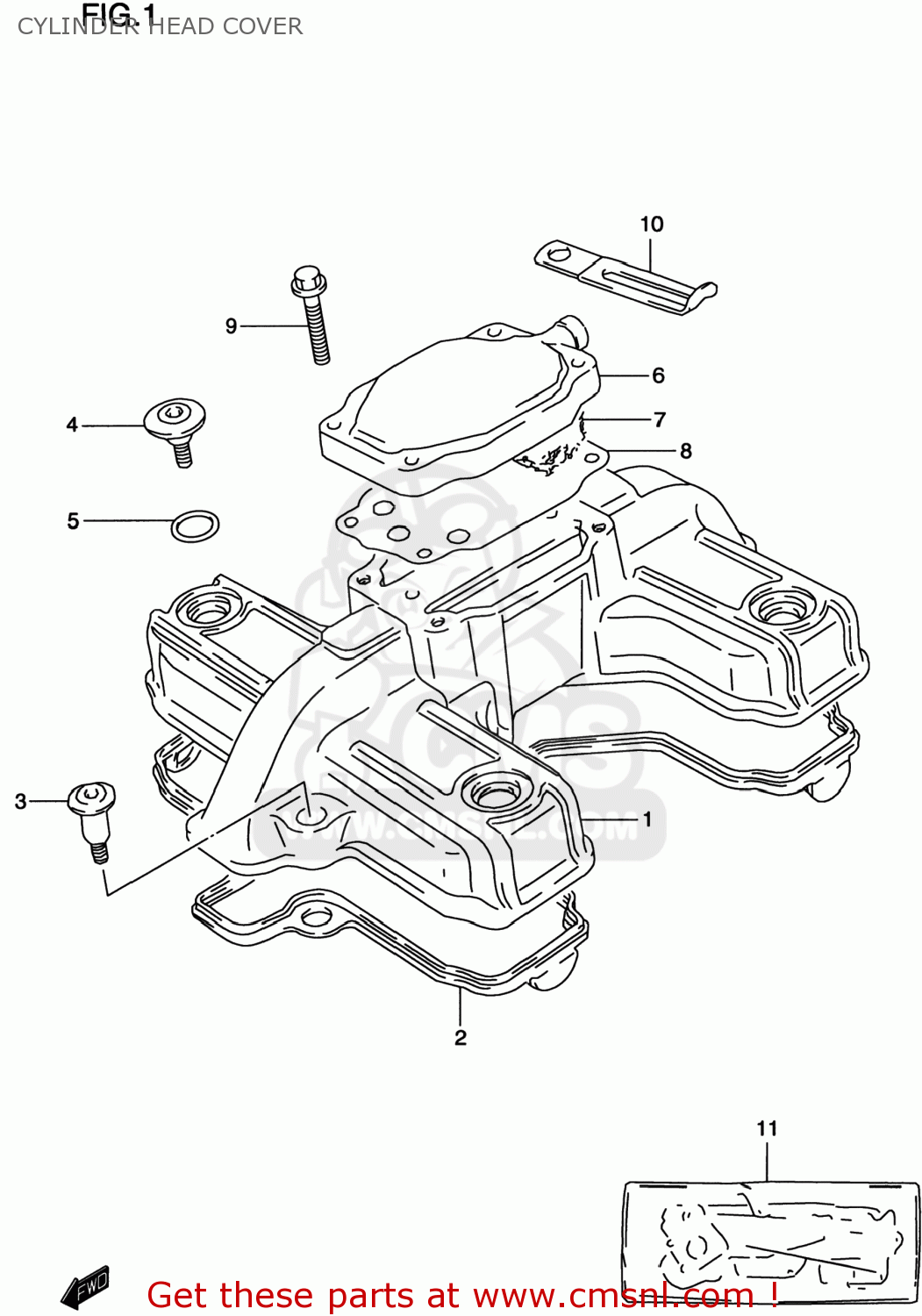

Cylinder head cover diagram GS500E 1997 (V) USA CANADA (E03) (E28)

prices are in EUR

ref

part #

description

quantity

1117101D02
ref: 1

COVER,CYLINDER HEAD

€ 201.00

1117315502
ref: 2
11173-01D00

GASKET,CYLINDER HEAD COVER (NAS)

€ 32.50

0910607010
ref: 3

BOLT(7X31)

€ 4.50

0910607009
ref: 4

BOLT(7X17.5)

€ 4.50

0928015006
ref: 5

O RING(D:1.9,ID:14.5)

€ 3.00

1117633201
ref: 6

COVER,BREATHER

€ 25.50

1118615501
ref: 7

SEPARATOR,OIL BREATHER COVER

€ 6.00

GASKET,BREATHER COVER (NAS)

€ 7.50

0155006253
ref: 9
01550-0625A

BOLT

€ 2.50

10-1

0940406431
ref: 10-1
09404-06432

CLAMP(L:65)

€ 2.50

10-2

0940406432
ref: 10-2

CLAMP(L:65)

€ 2.50

1140001861
ref: 11
11400-01864

GASKET SET (NAS)

€ 227.50
