prices are in EUR
ref
part #
description
quantity
1-1

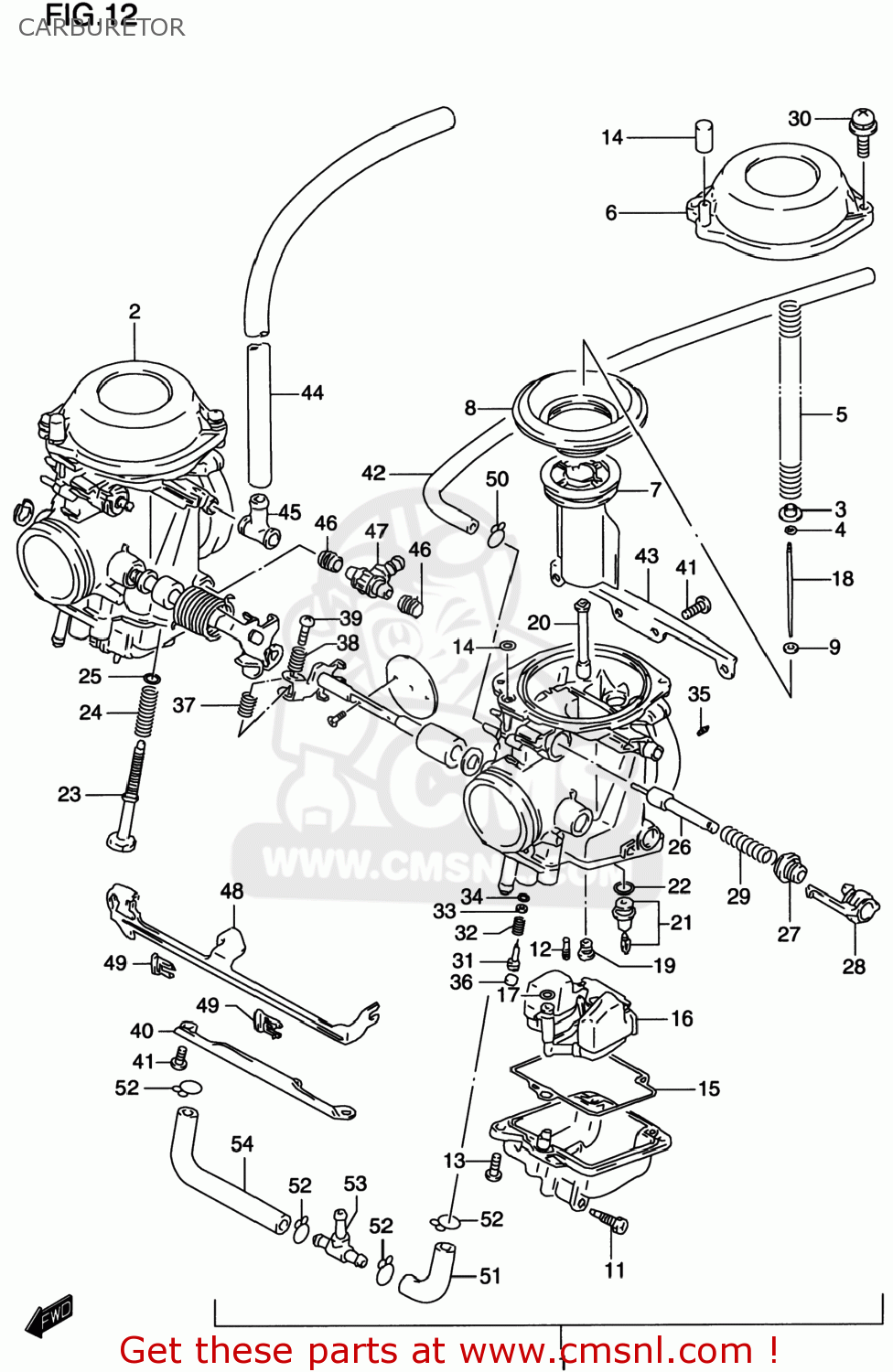

CARBURETOR ASSEMBLY,LEFT
1-3
CARBURETOR ASSEMBLY,LEFT
1-3
CARBURETOR ASSEMBLY,LEFT
1-4
CARBURETOR ASSEMBLY,LEFT
1-4
CARBURETOR ASSEMBLY,LEFT
2-1
CARBURETOR ASSEMBLY,RIGHT
2-3
CARBURETOR ASSEMBLY,RIGHT
2-3
CARBURETOR ASSEMBLY,RIGHT
3
RING
4
E RING
5-1
SPRING
5-2
SPRING
6
COVER,DIAPHRAGM
7
VALVE,PISTON
8
DIAPHRAGM
9
RING
10
CAP
11
SCREW,DRAIN
12
JET,PILOT(37.5)
13
SCREW
14
O RING
15
GASKET,FLOAT CHAMBER (NAS)
16
FLOAT ASSY
17
O RING
18
NEEDLE,JET
19
JET,MAIN(122.5)
20
JET,NEEDLE(O-3M)
21-1
VALVE ASSEMBLY,NEEDLE
21-2
VALVE ASSY,NEEDLE
22
O-RING,NEEDLE VALVE
23
SCREW,ADJUSTER
24
SPRING
25
WASHER
26
PLUNGER ASSY
27
CAP,STARTER
28
HOLDER,GUIDE
29
SPRING
30
SCREW
31-1
SCREW,PILOT
31-2
SCREW,PILOT
32
SPRING
33
WASHER
34
O RING,PILOT AIR SCREW
35-1
JET,AIR(1.3)
35-2
JET,AIR(1.35)
36
PLUG
38
SPRING
39
SCREW
41
SCREW
42
HOSE(5X9X350)
44
HOSE(7X11X600)
45
HOSE
46
SEAL
47
NIPPLE
49
HOLDER
51
HOSE
53
NIPPLE
54
HOSE
