FRONT MASTER CYLINDER

GS500E 1998 (W) USA CANADA (E03) (E28)

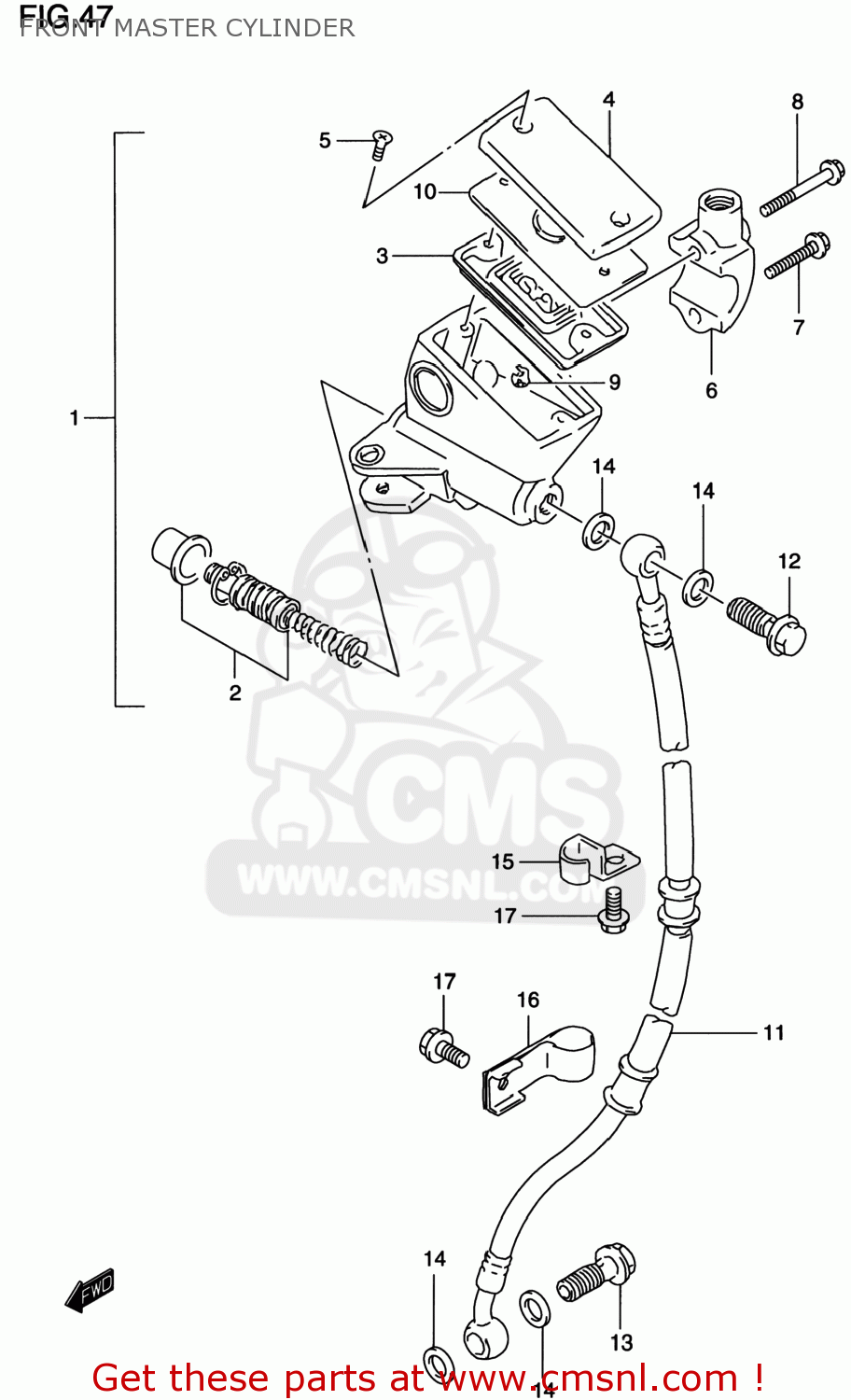

Front master cylinder diagram GS500E 1998 (W) USA CANADA (E03) (E28)

prices are in EUR

ref

part #

description

quantity

5960045C10
ref: 1

CYLINDER ASSY,FR MASTER

€ 241.00

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

5966749460
ref: 3

5966749460

5966941C00
ref: 4

CAP

€ 30.00

6968949300
ref: 5

SCREW

€ 1.50

5967144300
ref: 6

HOLDER

€ 14.50

5967519C00
ref: 7

BOLT(6X25)

€ 3.00

5967519C10
ref: 8

BOLT(6X38)

€ 4.00

5966448B00
ref: 9

PROTECTOR

€ 8.00

5966841C00
ref: 10

PLATE,DIAPHRAGM

€ 8.00

5948001D20
ref: 11

HOSE,FR BRAKE,R

€ 82.00

0936010039
ref: 12
09360-10061

BOLT UNION

€ 6.50

0936010040
ref: 13
09360-10062

BOLT UNION

€ 5.00

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00

5926801D01
ref: 15

CLAMP,FR BRAKE HOSE

€ 8.00

5926801D10
ref: 16

CLAMP,FRONT BRAKE NO.2

€ 6.00

0155006123
ref: 17
01550-0612A

BOLT

€ 2.50
