FRAME COVER (MODEL X)

GS500E 1998 (W) USA CANADA (E03) (E28)

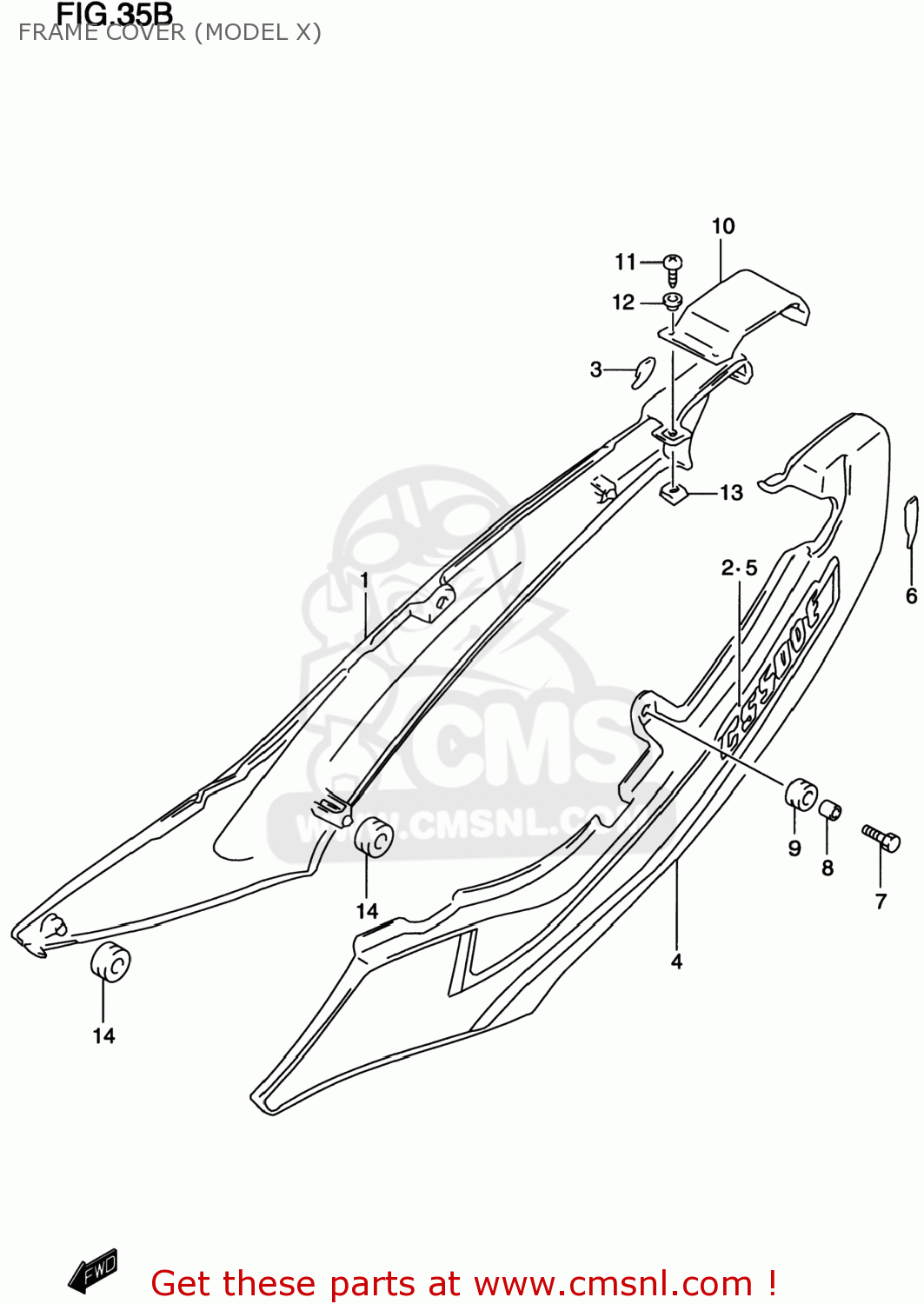

Frame cover (model x) diagram GS500E 1998 (W) USA CANADA (E03) (E28)

prices are in EUR

ref

part #

description

quantity

4711001DG01NX
ref: 1

COVER,FRAME,R(BLACK)

€ 123.50

6813501D20L9U
ref: 2

TAPE,FRAME COVER,R

€ 54.50

4711901D00
ref: 3

PROTECTOR,FRAME COVER,R

€ 7.00

4721001DG01NX
ref: 4

COVER COMP,FRAME,LEFT

€ 219.00

6814501D20L9U
ref: 5

TAPE,FRAME COVER,L

€ 54.50

4721901D00
ref: 6

PROTECTOR,FRAME COVER,L

€ 7.00

0911606010
ref: 7

BOLT(6X20)

€ 2.00

0918006263
ref: 8

SPACER(6.5X9X9)

€ 2.00

0932009016
ref: 9

CUSHION

€ 2.50

4721501D0033J
ref: 10

COVER,FRAME CTR

€ 36.50

0324205123
ref: 11
03241-0512A

SCREW

€ 1.50

0916105017
ref: 12

WASHER(5.2X14X1.5)

€ 3.00

0914805004
ref: 13
09148-05013

NUT

€ 1.50

0932008018
ref: 14

CUSHION

€ 4.00
