STARTER CLUTCH
GS500E 1998 (W) USA CANADA (E03) (E28)

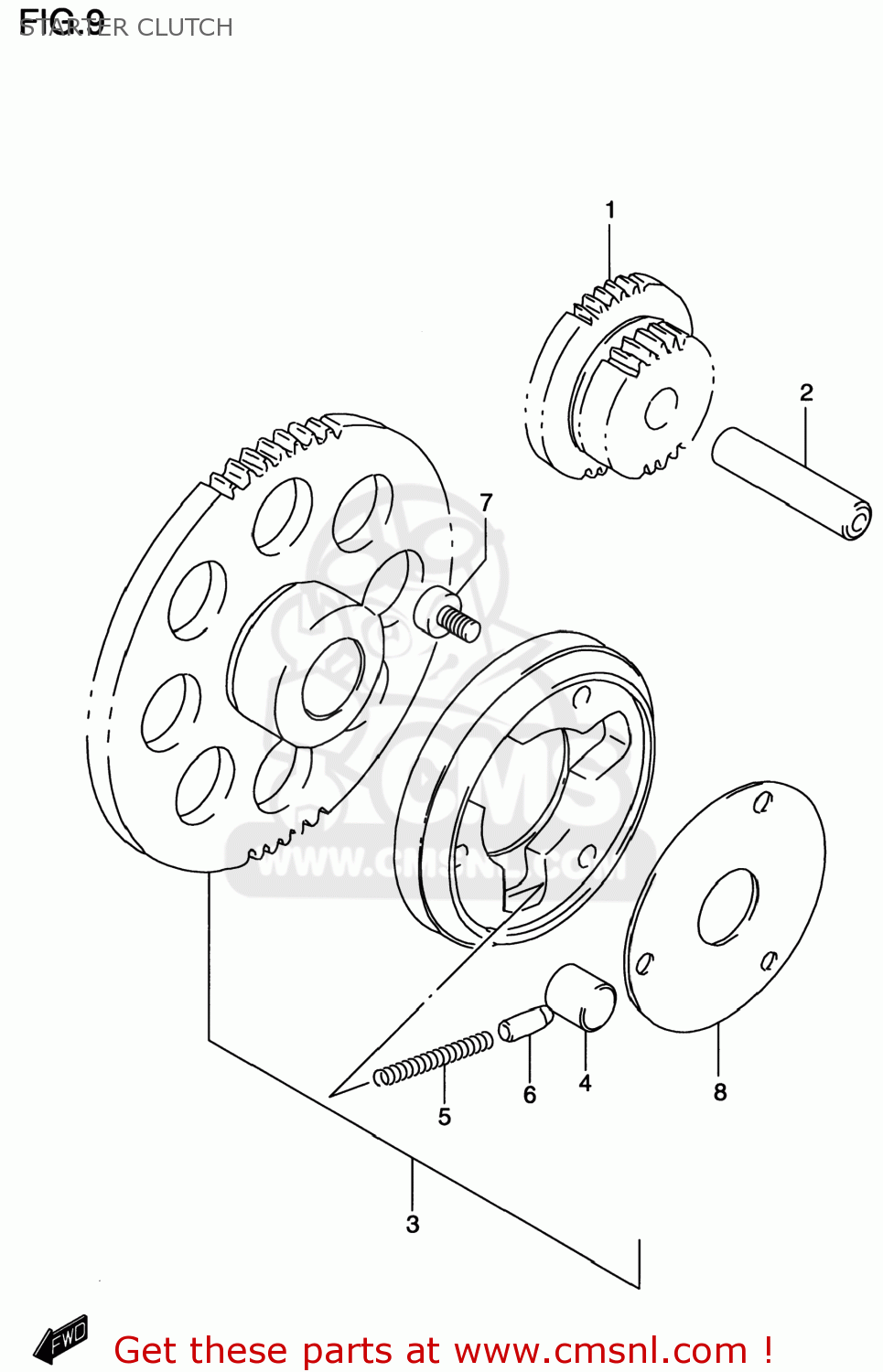

Starter clutch diagram GS500E 1998 (W) USA CANADA (E03) (E28)
STARTER CLUTCH GS500E 1998 (W) USA CANADA (E03) (E28)
×
prices are in EUR
ref
part #
description
quantity
1
1261101D00
ref: 1
GEAR,STARTER IDLE
€ 73.50
2
0920613003
ref: 2
PIN(7.4X13X56)
€ 9.00
3-1
1260044833
ref: 3-1
12600-44835
CLUTCH SET,STARTER
€ 313.00
3-2
1260044834
ref: 3-2
12600-44835
CLUTCH SET,STARTER
€ 313.00
4
0926115001
ref: 4
ROLLER(15X13)
€ 3.50
5
0944004015
ref: 5
SPRING
€ 2.50
6
1263331000
ref: 6
PIECE,PUSH
€ 9.00
7
0713008163
ref: 7
07130-0816A
BOLT
€ 3.00
8
1264945000
ref: 8
SHIM,STARTER CLUTCH HUB
€ 7.00
