FRAME
GS500E 1998 (W) USA CANADA (E03) (E28)

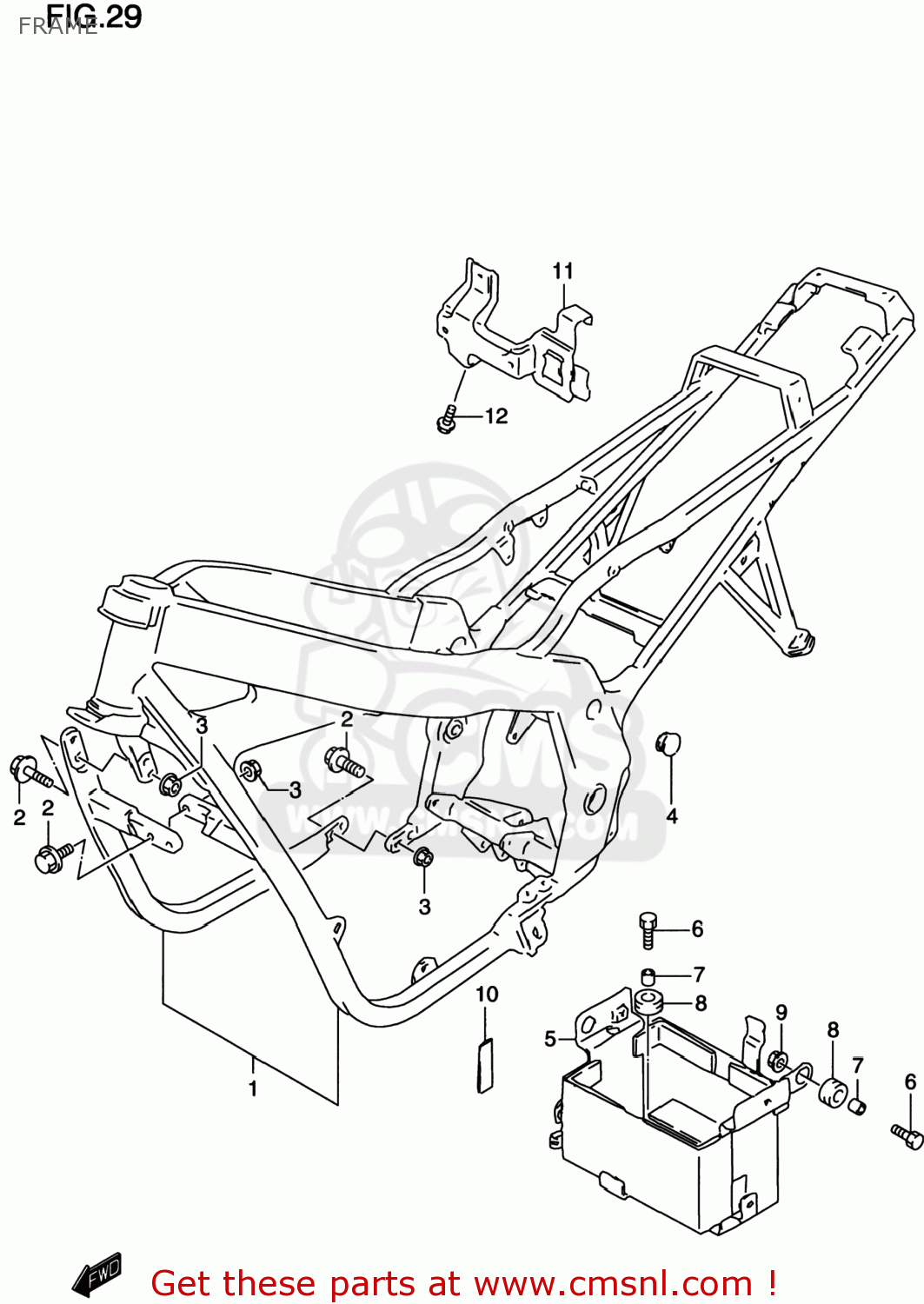

Frame diagram GS500E 1998 (W) USA CANADA (E03) (E28)
FRAME GS500E 1998 (W) USA CANADA (E03) (E28)
×
prices are in EUR
ref
part #
description
quantity
1-1
411020187113L
ref: 1-1
FRAME SET
€ 1,349.50
1-2
411020185213L
ref: 1-2
FRAME SET(SILVER)
€ 863.00
2
0155010357
ref: 2
BOLT
€ 3.50
3
0831931107
ref: 3
NUT
€ 3.00
4
4358501D00
ref: 4
CAP,BODY FRAME
€ 5.00
5
4154001D31
ref: 5
HOLDER,BATTERY
€ 77.50
6
0911606167
ref: 6
BOLT(6X20)
€ 2.00
7
0918006038
ref: 7
SPACER(6.1X9X7.5)
€ 2.00
8
0932008021
ref: 8
CUSHION
€ 4.00
9
0831610063
ref: 9
08316-1006B
NUT
€ 2.50
10
4489424A00
ref: 10
CUSHION
€ 1.50
11
4741001D00
ref: 11
HOLDER,ELECTRIC PARTS
€ 14.00
12
0155006163
ref: 12
01550-0616A
BOLT
€ 2.50
