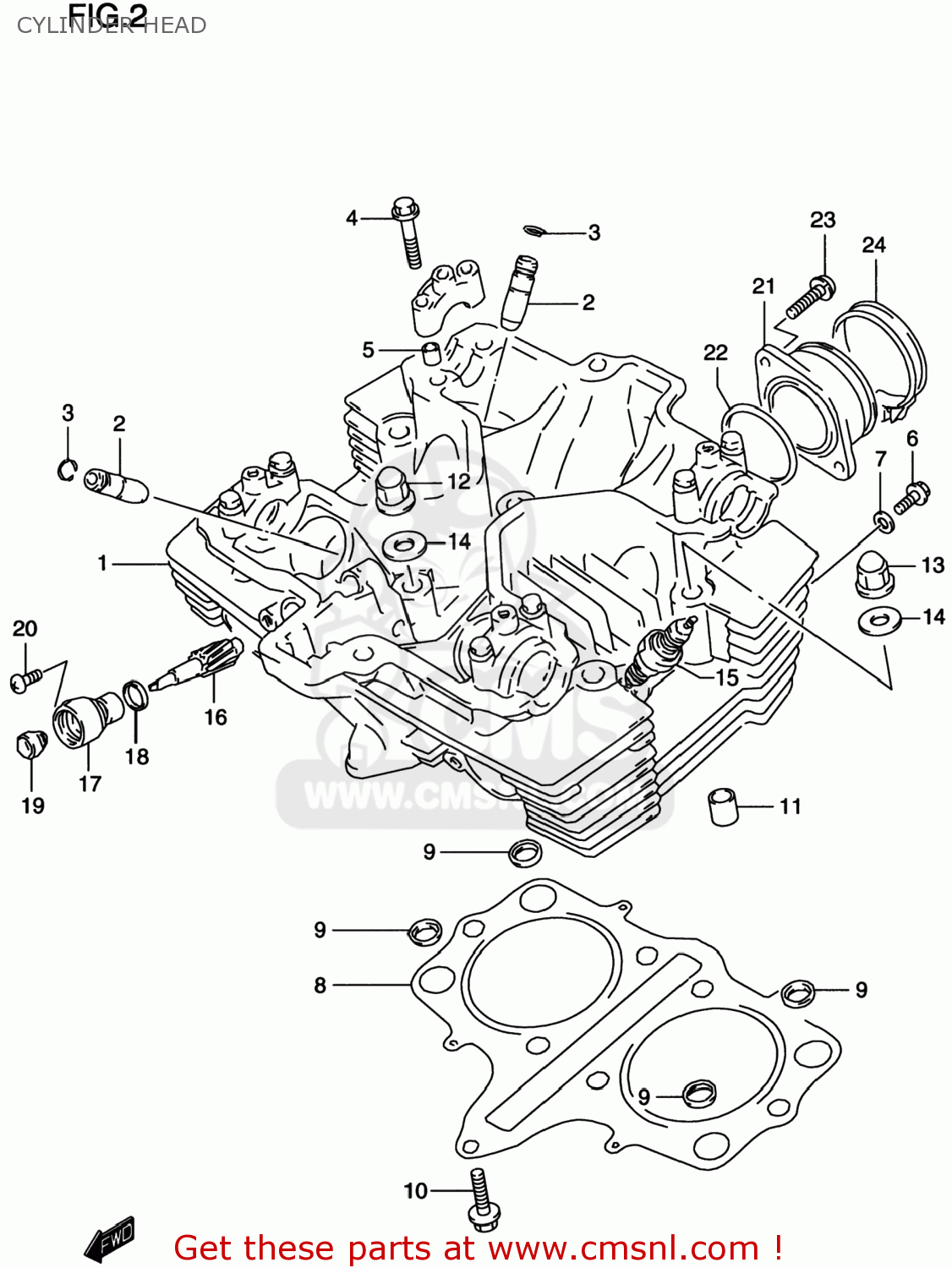

CYLINDER HEAD

ref

part #

description

quantity

1

1110001D20
ref: 1

HEAD ASSY,CYLINDER

€ 1,090.50

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

0938110003
ref: 3

RING,SNAP

€ 2.50

4

0910306071
ref: 4

BOLT(6X39)

€ 2.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

0712006123
ref: 6
07120-0612B

BOLT

€ 3.50

7

0916806023
ref: 7

GASKET(5.8X13X1.2) (NAS)

€ 2.00

8

1114101D10
ref: 8
11141-01D11

GASKET,CYLINDER HEAD (NAS)

€ 35.00

9

1114306B00
ref: 9

O RING,HEAD GASKET

€ 8.00

10

0155006303
ref: 10
01550-0630A

BOLT

€ 2.50

11

0421111189
ref: 11

PIN

€ 2.00

12

0915910069
ref: 12

NUT

€ 5.00

13

0915910026
ref: 13

NUT

€ 6.00

14

0916810031
ref: 14

GASKET(10.2X20X2).3 (NAS)

€ 2.00

15-1

0948200334
ref: 15-1

PLUG,SPARK(DPR8EA-9)

€ 4.00

15-2

0948200335111
ref: 15-2
09482-00335

SPARK PLUG X24EPR-U9

€ 4.00

16

2643145002
ref: 16

GEAR,TACHOMETER DRIVEN

€ 43.00

17

2644149000
ref: 17

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

18

2645145000A
ref: 18

SEAL,TACHOMETER DRIVEN

€ 4.50

19

0928905002
ref: 19

SEAL,OIL(5X12X8)

€ 11.00

20

0912805101
ref: 20

SCREW(5X12)

€ 1.50

21-1

1311001D01
ref: 21-1
13101-01D00

PIPE,INTAKE

€ 30.50

21-2

1311001D02
ref: 21-2
13101-01D00

PIPE,INTAKE

€ 30.50

22-1

0928040003
ref: 22-1
09280-40010

O-RING (D:2.4 ID:39.7)

€ 3.50

22-2

0928040010
ref: 22-2

O RING(D:2.4,ID:39.7)

€ 3.50

23

0211216163
ref: 23
02112-1616A

SCREW

€ 2.00

24

0940254208
ref: 24

CLAMP

€ 5.00
