CYLINDER HEAD COVER
GS500EU 1989 (K) GERMANY (E22)

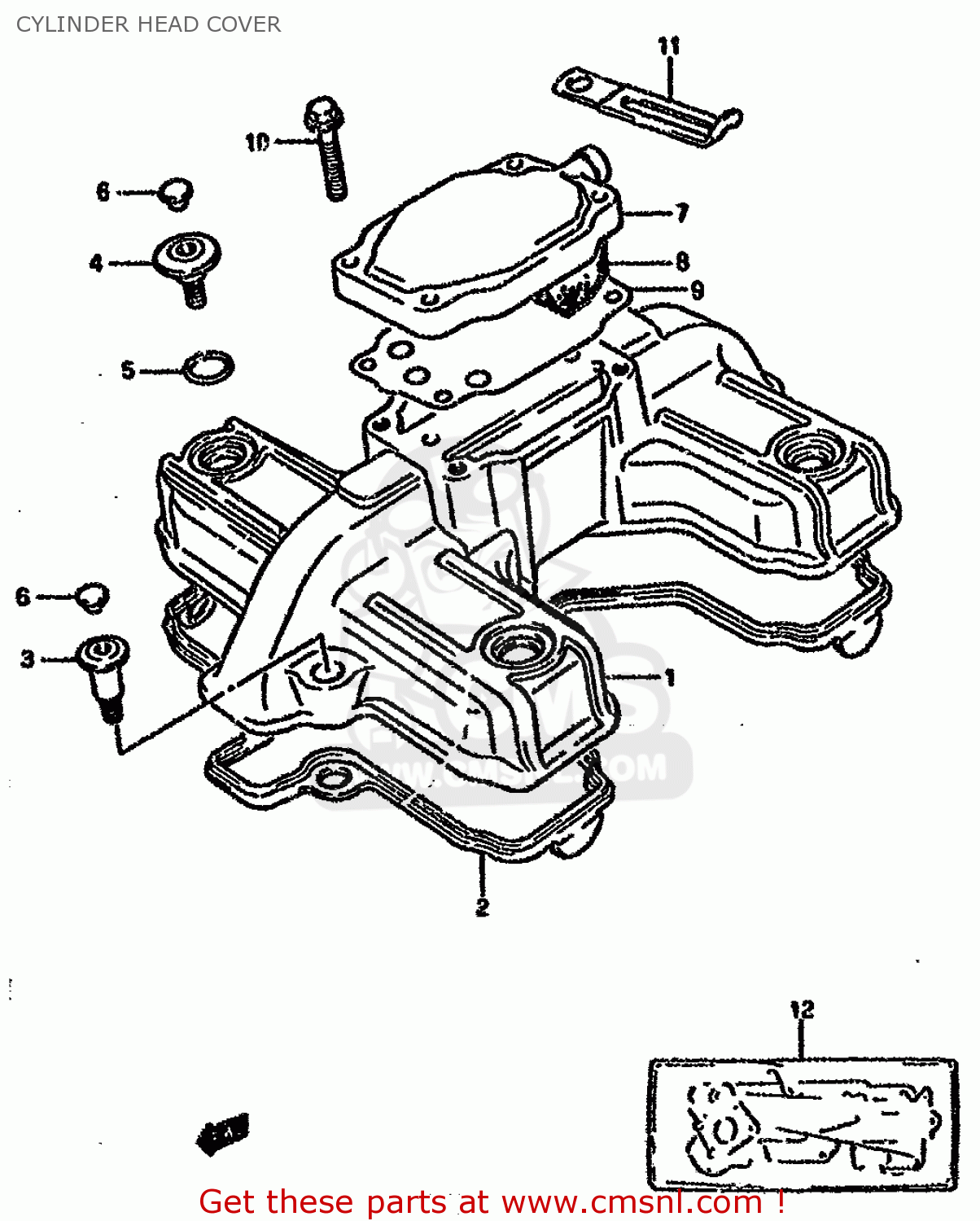

Cylinder head cover diagram GS500EU 1989 (K) GERMANY (E22)
CYLINDER HEAD COVER GS500EU 1989 (K) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1117101D02
ref: 1
COVER,CYLINDER HEAD
€ 201.00
2
1117315502
ref: 2
GASKET,CYLINDER HEAD COVER (NAS)
€ 32.50
3-1
0910607002
ref: 3-1
MODEL K/L
BOLT(7X19)
€ 7.00
3-2
0910607010
ref: 3-2
MODEL M/N/P/R/S/T
BOLT(7X31)
€ 4.50
4-1
0910607001
ref: 4-1
MODEL K/L
BOLT(7X5.5)
€ 6.00
4-2
0910607009
ref: 4-2
MODEL M/N/P/R/S/T
BOLT(7X17.5)
€ 4.50
5
0928015006
ref: 5
O RING(D:1.9,ID:14.5)
€ 3.00
6
0925006008
ref: 6
MODEL K/L/M
CAP(OD:10)
€ 3.00
7
1117633201
ref: 7
COVER,BREATHER
€ 25.50
8-1
1118615500
ref: 8-1
MODEL K/L/M/N/P
SEPARATOR,OIL BREATHER CO
€ 6.00
8-2
1118615501
ref: 8-2
MODEL R/S/T
SEPARATOR,OIL BREATHER COVER
€ 6.00
9
1117715510H17
ref: 9
-11177-15510
GASKET,BREATHER COVER (NAS)
€ 7.50
10-1
0151706257
ref: 10-1
MODEL K/L/M/N/P
BOLT 6X25
€ 2.50
10-2
0155006253
ref: 10-2
MODEL R/S/T
BOLT
€ 2.50
11-1
0940406413
ref: 11-1
MODEL K/L/M/N/P/R/S
CLAMP
€ 2.50
11-2
0940406431
ref: 11-2
MODEL T
CLAMP(L:65)
€ 2.50
12
1140001861
ref: 12
GASKET SET (NAS)
€ 227.50
