HANDLE SWITCH (MODEL L/M/N/P/R/S/T)

GS500EU 1989 (K) GERMANY (E22)

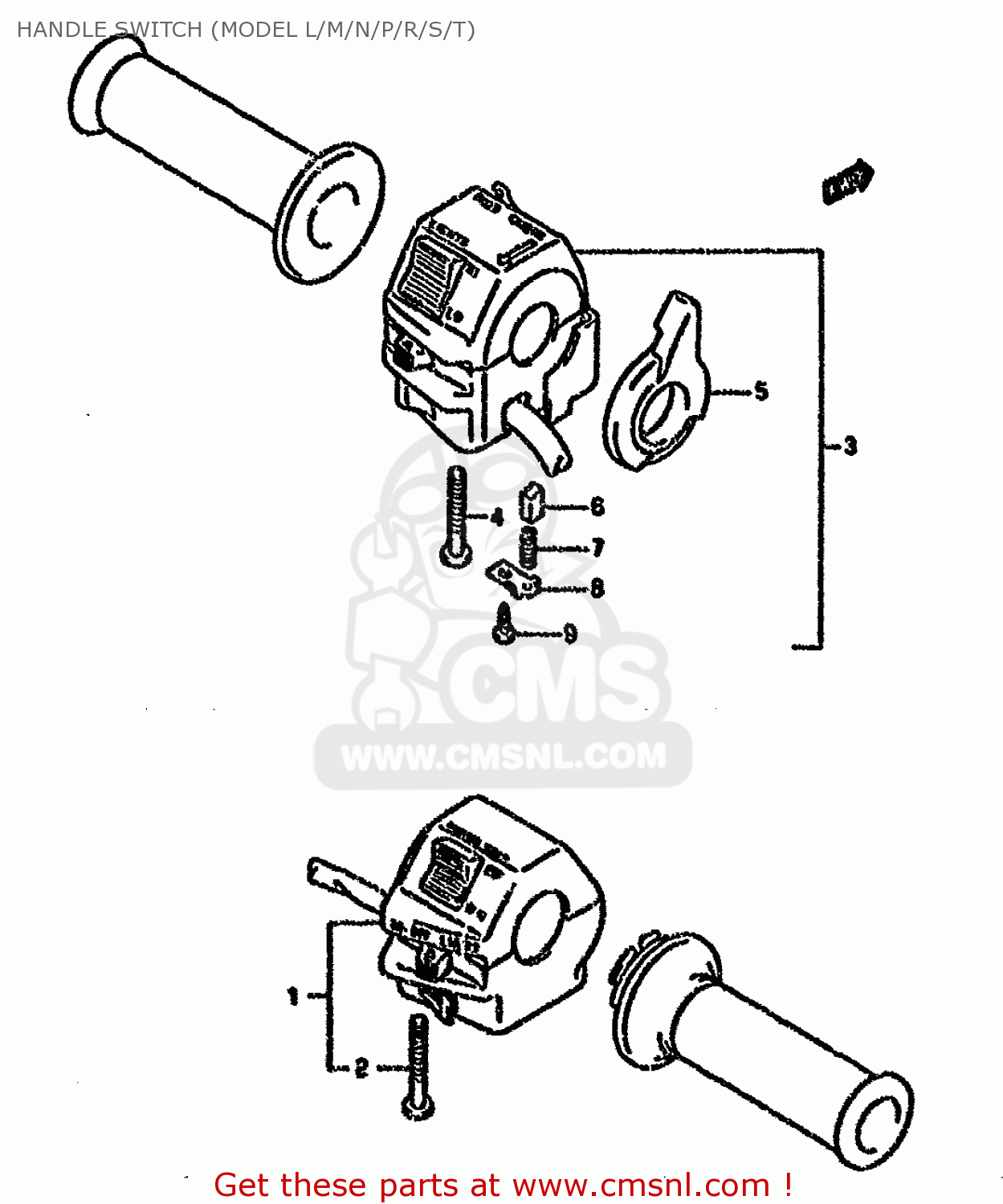

Handle switch (model l/m/n/p/r/s/t) diagram GS500EU 1989 (K) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1-1

3720001D02
ref: 1-1

SWITCH,HANDLE

€ 106.00

1-2

3720001D11
ref: 1-2
MODEL N/P/R/T E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 92.50

0211205455
ref: 2

SCREW, 5X45

€ 4.00

3740001D01
ref: 3

SWITCH,HANDLE

€ 103.50

0211205455
ref: 4

SCREW, 5X45

€ 4.00

3748130B01
ref: 5
-37481-30B00

LEVER,CHOKE

€ 13.00

3748230B00
ref: 6

PIECE,SLIDE

€ 4.00

3748330B00
ref: 7

SPRING

€ 7.50

3748630B00
ref: 8

PLATE

€ 3.00

0351104123
ref: 9

SCREW, TRUNK BOX

€ 1.50
