CYLINDER HEAD
GS500EU 1989 (K) GERMANY (E22)

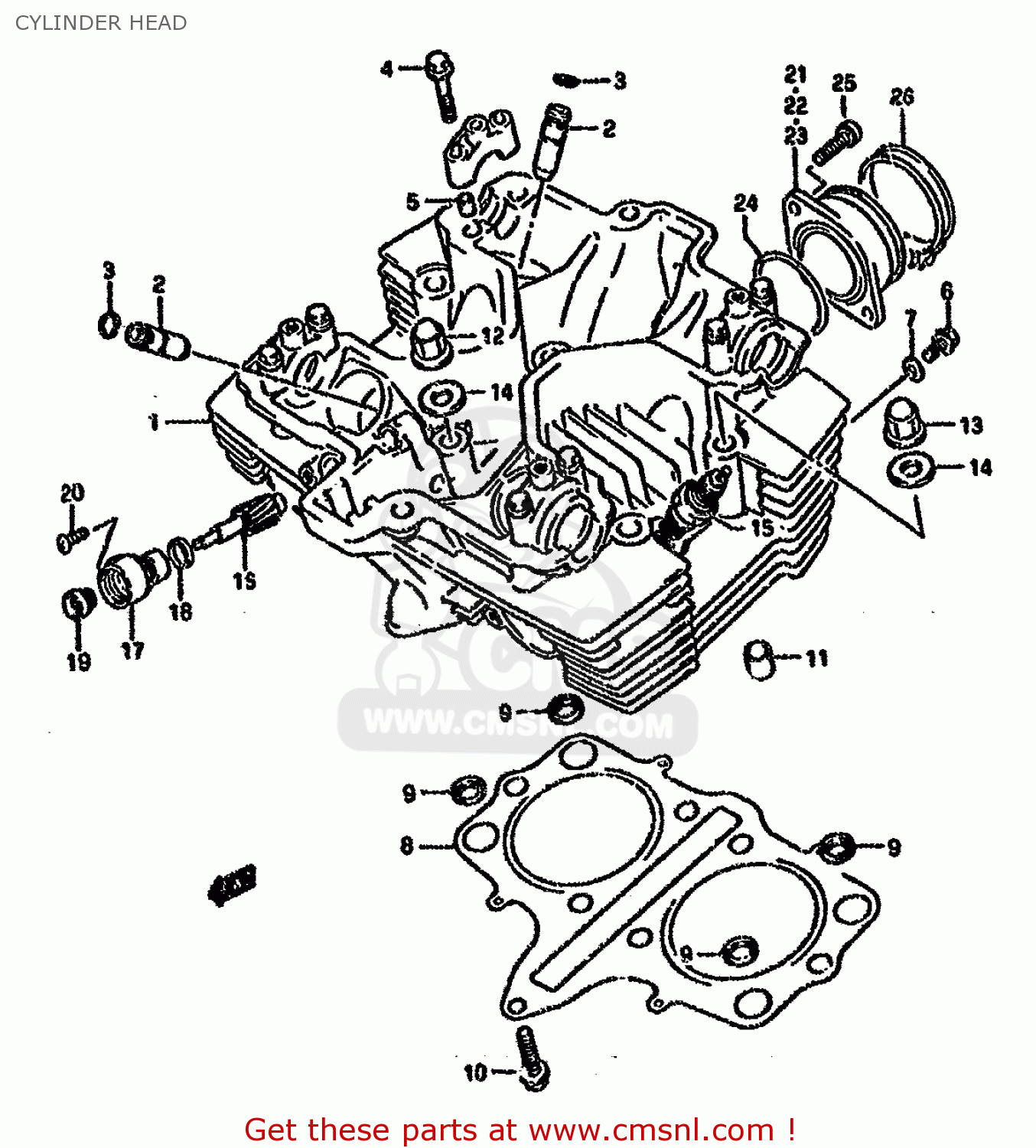

Cylinder head diagram GS500EU 1989 (K) GERMANY (E22)
CYLINDER HEAD GS500EU 1989 (K) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110001D01
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 869.50
1-2
1110001D10
ref: 1-2
MODEL N/P/R/S/T E18,
HEAD ASSY,CYLINDER
€ 1,057.00
2
1111545740
ref: 2
GUIDE,INTAKE VALVE
€ 25.50
3
0938110003
ref: 3
RING,SNAP
€ 2.50
4
0910306071
ref: 4
BOLT(6X39)
€ 2.50
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6-1
0151706125
ref: 6-1
MODEL K/L/M/N/P
BOLT 6X12
€ 2.50
6-2
0155006123
ref: 6-2
MODEL R/S/T
BOLT
€ 2.50
7
0916806023
ref: 7
GASKET(5.8X13X1.2) (NAS)
€ 2.00
8
1114101D10
ref: 8
GASKET,CYLINDER HEAD (NAS)
€ 35.00
9
1114306B00
ref: 9
O RING,HEAD GASKET
€ 8.00
10-1
0151706305
ref: 10-1
MODEL K/L/M/N/P
BOLT 6X30
€ 2.50
10-2
0155006303
ref: 10-2
MODEL R/S/T
BOLT
€ 2.50
11
0421111189
ref: 11
PIN
€ 2.00
12-1
0915910026
ref: 12-1
MODEL K/L
NUT
€ 6.00
12-2
0915910069
ref: 12-2
MODEL M/N/P/R/S/T
NUT
€ 5.00
13-1
0915910033
ref: 13-1
MODEL K/L/M/N/P/R
NUT
€ 6.00
13-2
0915910026
ref: 13-2
MODEL S/T
NUT
€ 6.00
14-1
0916810017
ref: 14-1
MODEL K/L
GASKET(10.5X22X2) (NAS)
€ 3.50
14-2
0916810031
ref: 14-2
MODEL M/N/P/R/S/T
GASKET(10.2X20X2).3 (NAS)
€ 2.00
15-1
0948200334
ref: 15-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
15-2
0948200335111
ref: 15-2
SPARK PLUG X24EPR-U9
€ 4.00
16
2643145002
ref: 16
GEAR,TACHOMETER DRIVEN
€ 43.00
17
2644149000
ref: 17
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
18
2645145000A
ref: 18
SEAL,TACHOMETER DRIVEN
€ 4.50
19
0928905002
ref: 19
SEAL,OIL(5X12X8)
€ 11.00
20
0912805101
ref: 20
SCREW(5X12)
€ 1.50
21
1311001D00
ref: 21
PIPE COMP,INTAKE
€ 30.50
22
1311001D10
ref: 22
GS500EUR/EUS/EUT E22
PIPE,INTAKE NO.1
€ 62.50
23
1312001D10
ref: 23
GS500EUR/EUS/EUT E22
PIPE,INTAKE NO.2
€ 51.00
24
0928040003
ref: 24
O-RING (D:2.4 ID:39.7)
€ 3.50
25-1
0211236205
ref: 25-1
MODEL K/L/M/N/P
SCREW
€ 2.00
25-2
0211236203
ref: 25-2
MODEL R/S
SCREW
€ 2.00
25-3
0211216163
ref: 25-3
MODEL T
SCREW
€ 2.00
26-1
0940254207
ref: 26-1
MODEL K/L/M/N/P/R
CLAMP
€ 5.00
26-2
0940254208
ref: 26-2
MODEL S/T
CLAMP
€ 5.00
