SPEEDOMETER-TACHOMETER
GS500EU 1989 (K) GERMANY (E22)

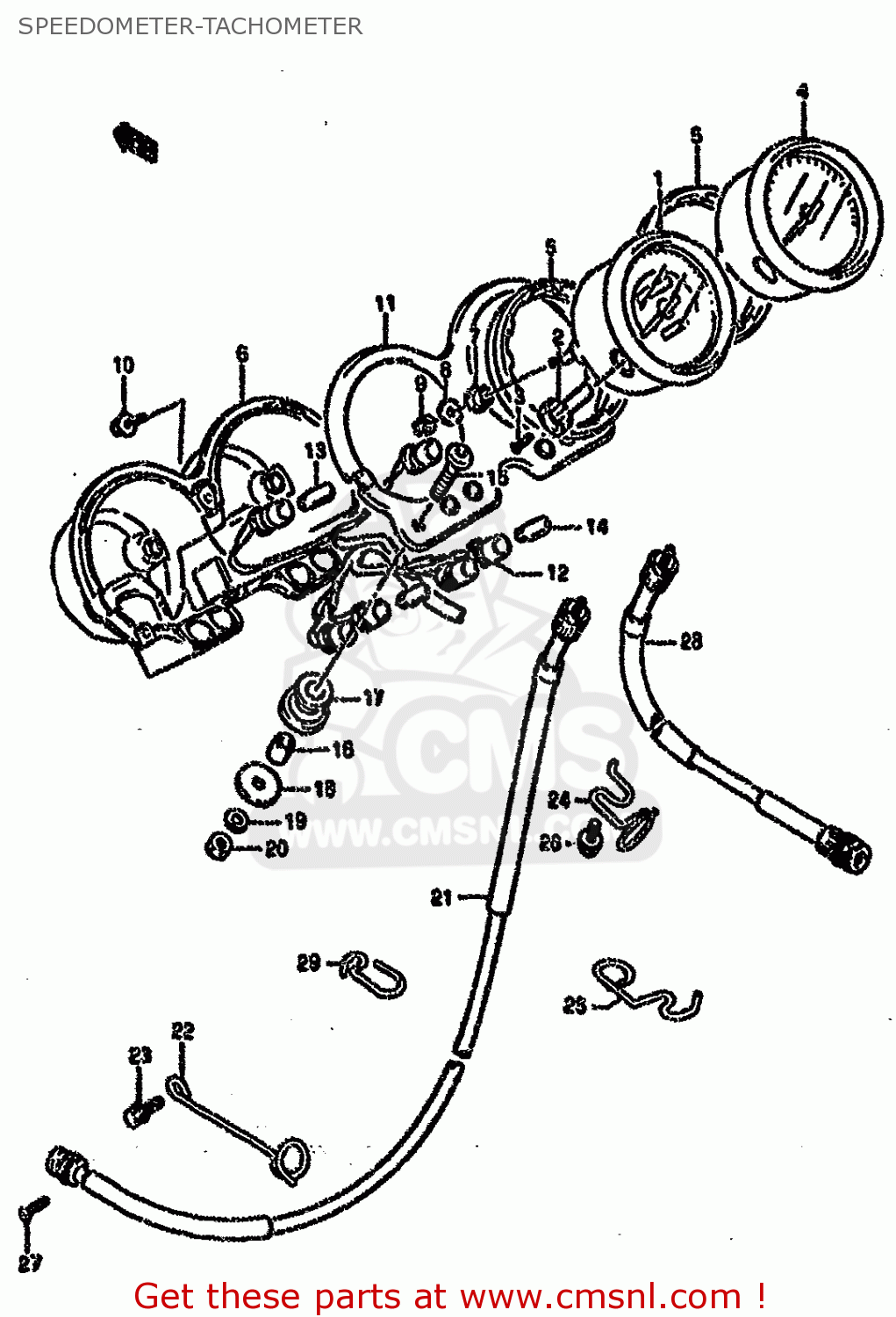

Speedometer-tachometer diagram GS500EU 1989 (K) GERMANY (E22)
SPEEDOMETER-TACHOMETER GS500EU 1989 (K) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411001D20
ref: 1-1
SPEEDOMETER(KILO) (E28)
€ 390.50
1-2
3411001D30
ref: 1-2
E2
SPEEDOMETER(MILE/KILO)
€ 317.00
2-1
3412401D20
ref: 2-1
MODEL K/L/M/N/P
KNOB
€ 8.50
2-2
3412430B00
ref: 2-2
MODEL R/S/T
KNOB,TRIP
€ 8.50
3-1
3498113A00
ref: 3-1
MODEL K/L/M/N/P/R
ROTOR,SPEED
€ 2.00
3-2
0913902003
ref: 3-2
MODEL S/T
SCREW(2X6)
€ 2.00
4
3421001D20
ref: 4
TACHOMETER
€ 302.50
5
3428801D20
ref: 5
DAMPER
€ 7.00
6
3419301D20
ref: 6
COVER
€ 76.50
7
3418901D20
ref: 7
CUSHION
€ 6.00
8-1
3418101D20
ref: 8-1
MODEL K/L/M/N/P/R
WASHER,METER
€ 1.50
8-2
0916005037
ref: 8-2
MODEL S/T
WASHER(5.5X16X1.2)
€ 1.50
9-1
0831311055
ref: 9-1
~E.NO.120196
NUT
€ 2.00
9-2
0831311057
ref: 9-2
E.NO.120197~
NUT
€ 1.50
9-3
3418501D20
ref: 9-3
MODEL P/R
NUT
€ 1.50
9-4
0831310057
ref: 9-4
MODEL S/T
NUT
€ 1.50
10-1
0211274085
ref: 10-1
~E.NO.120196
SCREW
€ 3.50
10-2
0211274088
ref: 10-2
E.NO.120197~
SCREW
€ 3.50
10-3
0211234083
ref: 10-3
MODEL P/R/S,-34149-0
SCREW
€ 2.00
11-1
3495001D20
ref: 11-1
BRACKET,METER
€ 148.50
11-2
3495001D30
ref: 11-2
E2
BRACKET,METER
€ 148.50
12
3417001D20
ref: 12
SOCKET
€ 56.50
13
0947112028
ref: 13
BULB(12V3.4W,T10)
€ 3.50
14
0947112077
ref: 14
BULB(12V1.7W,T10,WB121)
€ 1.00
15
0910706003
ref: 15
BOLT(6X30)
€ 3.50
16
0918006209
ref: 16
SPACER (6.1X10X15.7)
€ 4.00
17
3495631001
ref: 17
CUSHION,METER BRACKET
€ 4.50
18
0916006030
ref: 18
WASHER (6.5X29X1.6)
€ 2.50
19-1
0832121066
ref: 19-1
MODEL K/L/M/N/P/R
WASHER,LOCK
€ 2.00
19-2
0832101063
ref: 19-2
MODEL S/T
LOCK WASHER
€ 2.00
20-1
0831012066
ref: 20-1
MODEL K/L/M/N/P/R
NUT
€ 2.00
20-2
0831000063
ref: 20-2
MODEL S/T
NUT 6MM
€ 2.00
21-1
3491001D00
ref: 21-1
MODEL K/L/M/N
CABLE ASSEMBLY,SPEEDOMETER
€ 70.00
21-2
3491001D02
ref: 21-2
MODEL P/R/S/T
CABLE ASSY,SPEEDOMETER
€ 70.00
22
3493845100
ref: 22
CLAMP,SPEEDOMETER CABLE
€ 14.50
23-1
0111406168
ref: 23-1
MODEL K/L/M/N/P
BOLT
€ 1.50
23-2
0155006163
ref: 23-2
MODEL R/S/T
BOLT
€ 2.50
24
3493801D00
ref: 24
MODEL K/L/M/N
GUIDE,SPEEDOMETER CABLE
€ 11.50
25
3493801D01
ref: 25
MODEL P/R/S/T
GUIDE,SPEEDOMETER CABLE NO.2
€ 11.50
26-1
0151706125
ref: 26-1
MODEL K/L/M/N/P
BOLT 6X12
€ 2.50
26-2
0155006123
ref: 26-2
MODEL R/S/T
BOLT
€ 2.50
27-1
0211205164
ref: 27-1
MODEL K/L/M/N/P
SCREW
€ 2.00
27-2
0211205163
ref: 27-2
MODEL R/S/T
SCREW
€ 2.00
28-1
3494001D01
ref: 28-1
MODEL K/L/M/N
CABLE ASSEMBLY,TACHOMETER
€ 45.00
28-2
3494001D02
ref: 28-2
MODEL P/R/S/T
CABLE ASSY,TACHOMETER
€ 45.00
29
3493801D10
ref: 29
MODEL P/R/S/T
GUIDE,SPEEDOMETER CABLE NO.3
€ 11.50
