SEAT (MODEL S/T)
GS500EU 1989 (K) GERMANY (E22)

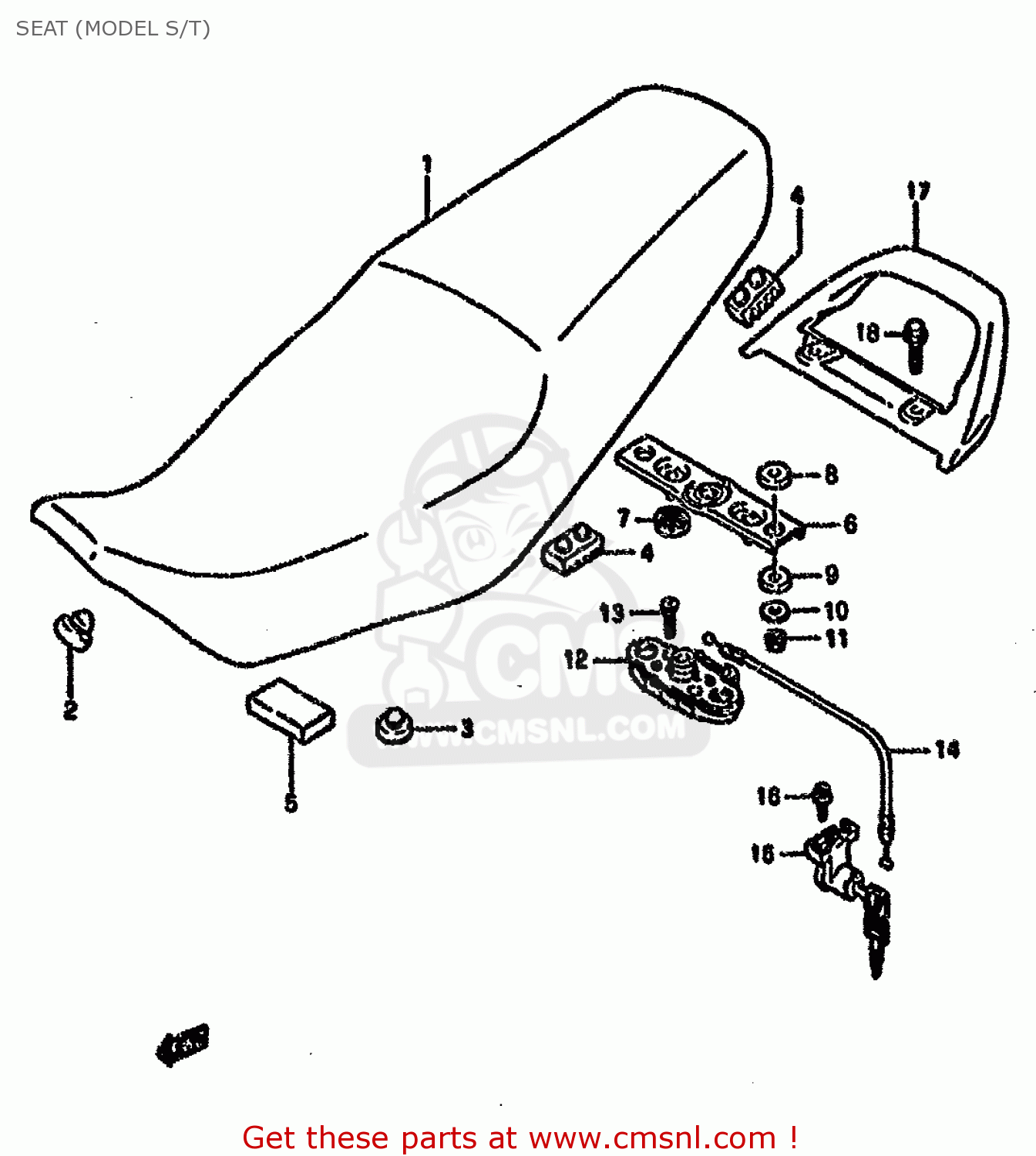

Seat (model s/t) diagram GS500EU 1989 (K) GERMANY (E22)
SEAT (MODEL S/T) GS500EU 1989 (K) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510001D1058R
ref: 1-1
SEAT SET
€ 413.00
1-2
4510001D0058R
ref: 1-2
E34,E37,E39,P9
SEAT SET (BLACK) (WITH SEAT BAND)
€ 312.00
2
0932910001
ref: 2
CUSHION
€ 2.50
3
0932110012
ref: 3
CUSHION
€ 3.00
4
4514931300
ref: 4
CUSHION,SEAT(40X20X15)
€ 2.00
5
9498229400
ref: 5
CUSHION(30X60X10)
€ 1.50
6
4521522A00
ref: 6
STRIKER,SEAT LOCK
€ 20.50
7
4521313601
ref: 7
CUSHION,SEAT LOCK(10X22X6)
€ 1.50
8
4512641B00
ref: 8
CUSHION,UPR
€ 2.00
9
4512741B00
ref: 9
CUSHION,LWR
€ 2.00
10
0821206201
ref: 10
WASHER
€ 1.50
11
0831620063
ref: 11
NUT
€ 2.00
12
4522022A10
ref: 12
LOCK ASSY,SEAT STRIKER
€ 42.50
13
0212206303
ref: 13
SCREW
€ 2.00
14
4528001D00
ref: 14
CABLE,SEAT LOCK
€ 11.00
15
9570031840
ref: 15
LOCK SET,SEAT
€ 57.00
16
0214205103
ref: 16
SCREW
€ 2.50
17
4621101D00019
ref: 17
HANDLE,PILLION RIDER
€ 48.00
18
0155008253
ref: 18
BOLT
€ 2.50
17-1
0712005103
ref: 17-1
MODEL K/L/M/N
BOLT
€ 2.00
17-2
0214205106
ref: 17-2
MODEL P/R
BOLT 10X75
€ 1.50
18-1
4621101D0022R
ref: 18-1
MODEL K
HANDLE,PILLION RIDER
€ 114.50
18-2
4621101D0028V
ref: 18-2
MODEL K/L/M/N
HANDLE,PILLION RIDER
€ 48.00
18-3
4621101D0033J
ref: 18-3
MODEL K
HANDLE,PILLION RIDER
€ 48.00
18-4
4621101D00019
ref: 18-4
MODEL L/M/N/P/R
HANDLE,PILLION RIDER
€ 48.00
18-5
4621101D000NF
ref: 18-5
MODEL L E4,E22
HANDLE,PILLION RIDER (BLUE)
€ 48.00
18-6
4621101D000FL
ref: 18-6
MODEL M
HANDLE,PILLION RIDER
€ 48.00
18-7
4621101D000ZK
ref: 18-7
MODEL M
HANDLE,PILLION RIDER
€ 48.00
18-8
4621101D001HU
ref: 18-8
MODEL N
HANDLE,PILLION RIDER
€ 48.00
19-1
0151708254
ref: 19-1
MODEL K/L/M/N/P
BOLT
€ 2.50
19-2
0155008253
ref: 19-2
MODEL R
BOLT
€ 2.50
