REAR SWINGING ARM
GS500EU 1989 (K) GERMANY (E22)

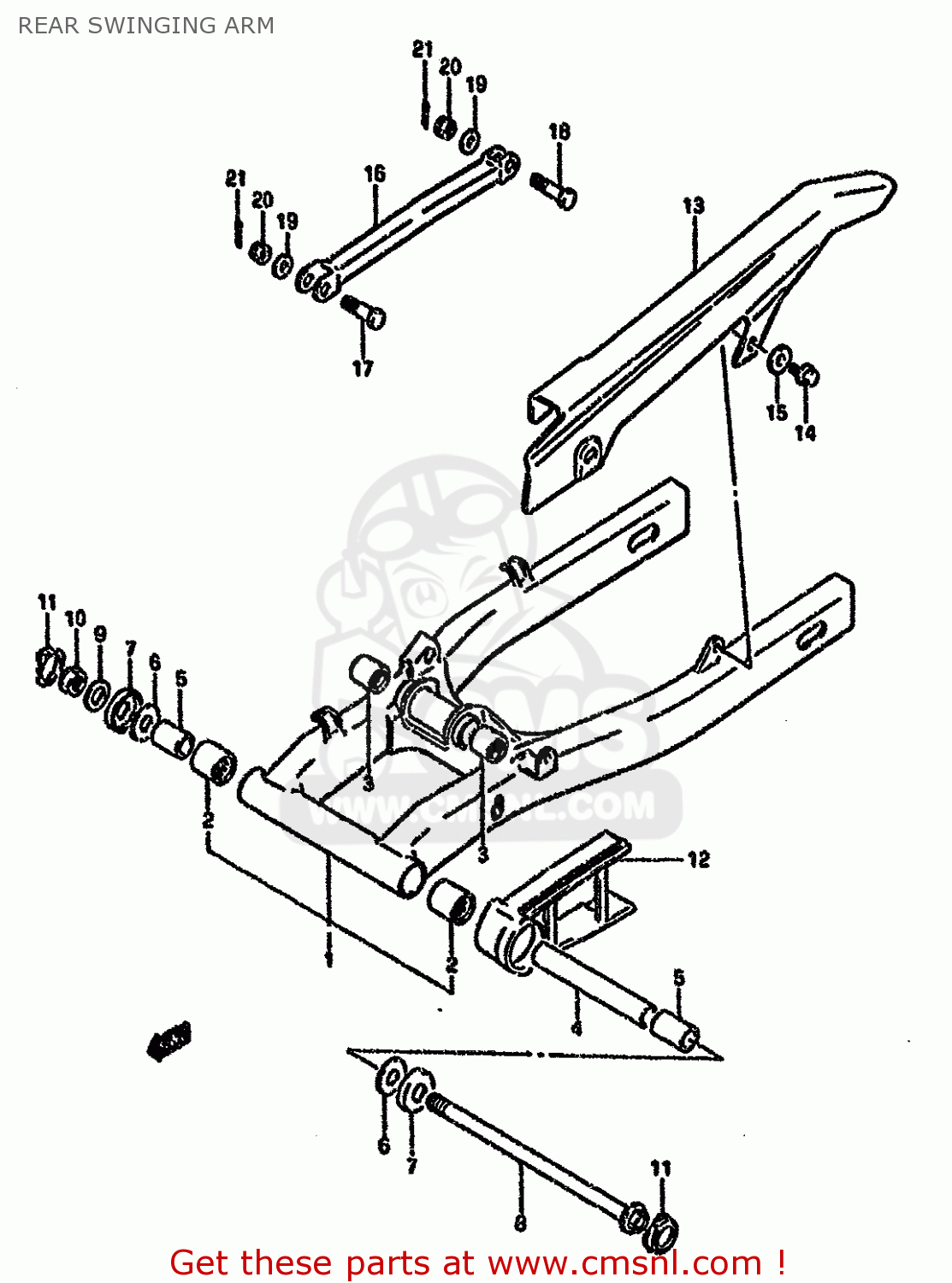

Rear swinging arm diagram GS500EU 1989 (K) GERMANY (E22)
REAR SWINGING ARM GS500EU 1989 (K) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100001D010FP
ref: 1-1
MODEL K/L/M/N/P
SWING ARM ASSEMBLY,REAR
€ 569.50
1-2
6100001D0113L
ref: 1-2
MODEL R
SWING ARM ASSEMBLY,REAR
€ 569.50
1-3
6100001D0213L
ref: 1-3
MODEL S
SWING ARM ASSEMBLY,REAR
€ 569.50
1-4
6100001D0213L
ref: 1-4
MODEL T E37 F.NO.137
SWING ARM ASSEMBLY,REAR
€ 569.50
1-5
6100001D1013L
ref: 1-5
MODEL T E37 F.NO.137
SWINGINGARM ASSY,RR
€ 569.50
1-6
6100001D1013L
ref: 1-6
MODEL T
SWINGINGARM ASSY,RR
€ 569.50
2
0926322017
ref: 2
BEARING(22X29X30)
€ 18.50
3
0926317037
ref: 3
BEARING(17X24X25)
€ 19.00
4
6128201D00
ref: 4
SPACER,RR SWGARM PIVOT CTR
€ 12.50
5
6125145001
ref: 5
SPACER,RR SWGARM PIVOT
€ 12.50
6
0916014020
ref: 6
WASHER(14.2X34X1)
€ 2.50
7
6126245002
ref: 7
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
8
6121130B00
ref: 8
SHAFT,RR SWINGINGARM PIVOT
€ 22.50
9
0916014009
ref: 9
WASHER(14.5X29X2.3)
€ 3.50
10
0915914019
ref: 10
NUT
€ 8.50
11
6122248B00
ref: 11
CAP,RR SWINGING ARM PIVOT
€ 4.00
12
6127301D00
ref: 12
BUFFER,CHAIN TOUCH DEFENSE
€ 26.00
13
6131001D00
ref: 13
CASE,CHAIN
€ 38.50
14-1
0151706105
ref: 14-1
MODEL K/L/M/N/P
BOLT
€ 2.50
14-2
0155006103
ref: 14-2
MODEL R
BOLT
€ 2.50
14-3
0214206123
ref: 14-3
MODEL S/T
SCREW 6X12
€ 2.00
15
0916906026
ref: 15
WASHER
€ 2.00
16-1
6431001D010FP
ref: 16-1
MODEL K
LINK,REAR TORQUE
€ 19.50
16-2
6431001D02
ref: 16-2
MODEL L/M/N/P/R/S/T
TORQUELINK,RR
€ 19.50
17
0911110016
ref: 17
BOLT(10X41)
€ 6.50
18
0910110036
ref: 18
BOLT(10X35)
€ 4.50
19
0916010069
ref: 19
WASHER (10X18X3.2)
€ 2.00
20-1
0831441108
ref: 20-1
MODEL K/L/M/N/P
NUT
€ 2.50
20-2
0831440103
ref: 20-2
MODEL R/S/T
NUT
€ 2.50
21
0411120208
ref: 21
PIN 20X20
€ 1.50
