CYLINDER

GS500EU 1990 (L) GERMANY (E22)

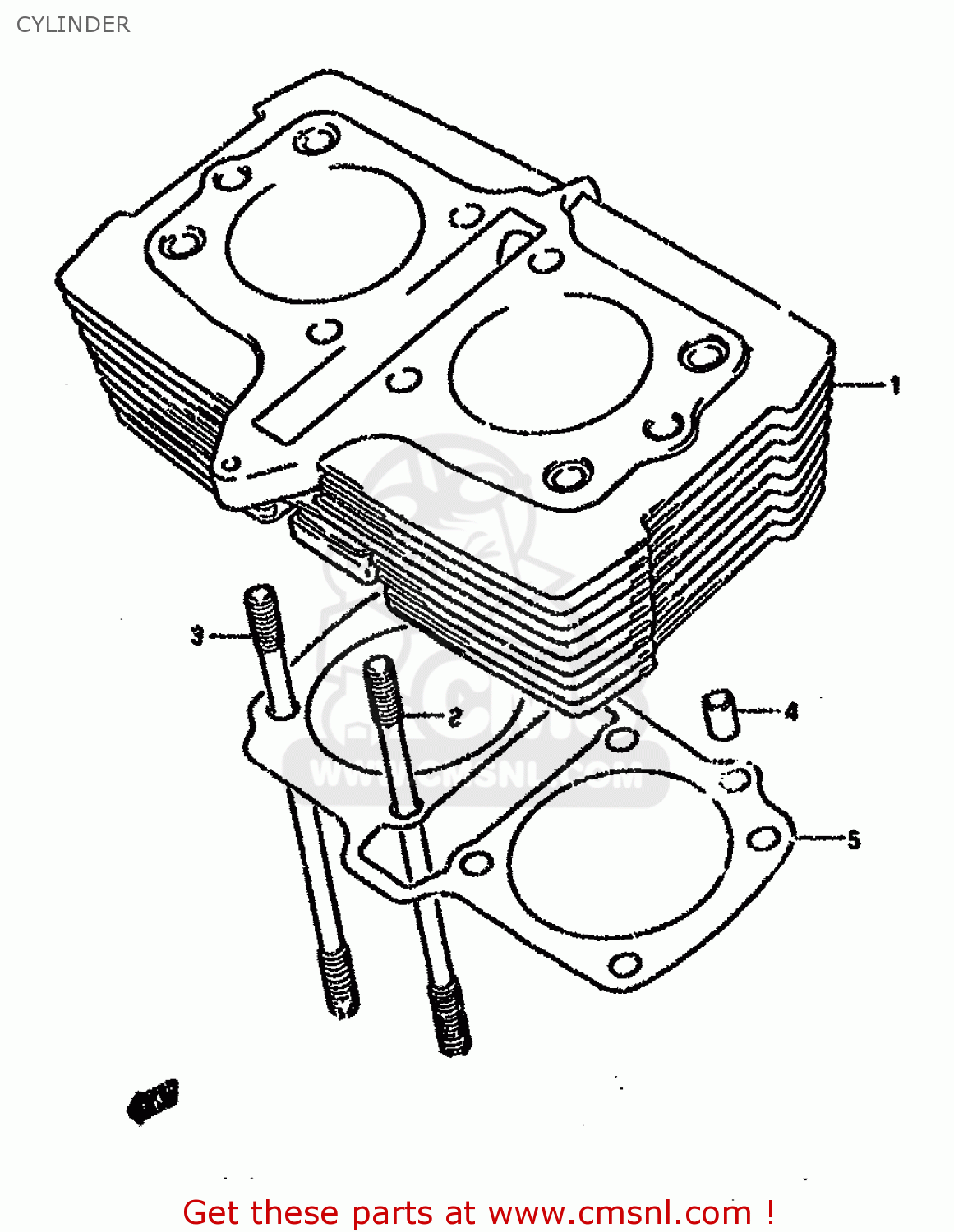

Cylinder diagram GS500EU 1990 (L) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1-1

1121001D01
ref: 1-1

CYLINDER

€ 522.50

1-2

1121001D10
ref: 1-2
MODEL N/P/R/S/T E18,

CYLINDER

€ 860.50

0910810112
ref: 2
-09108-10071

BOLT,STUD

€ 9.00

3-1

0910810039
ref: 3-1
MODEL K/L

STUD

€ 9.00

3-2

0910810111
ref: 3-2
MODEL M/N/P/R/S/T

STUD

€ 9.00

0421111189
ref: 4

PIN

€ 2.00

1124101D00
ref: 5

GASKET,CYLINDER (NAS)

€ 9.50
