GEAR SHIFTING
GS500EU 1990 (L) GERMANY (E22)

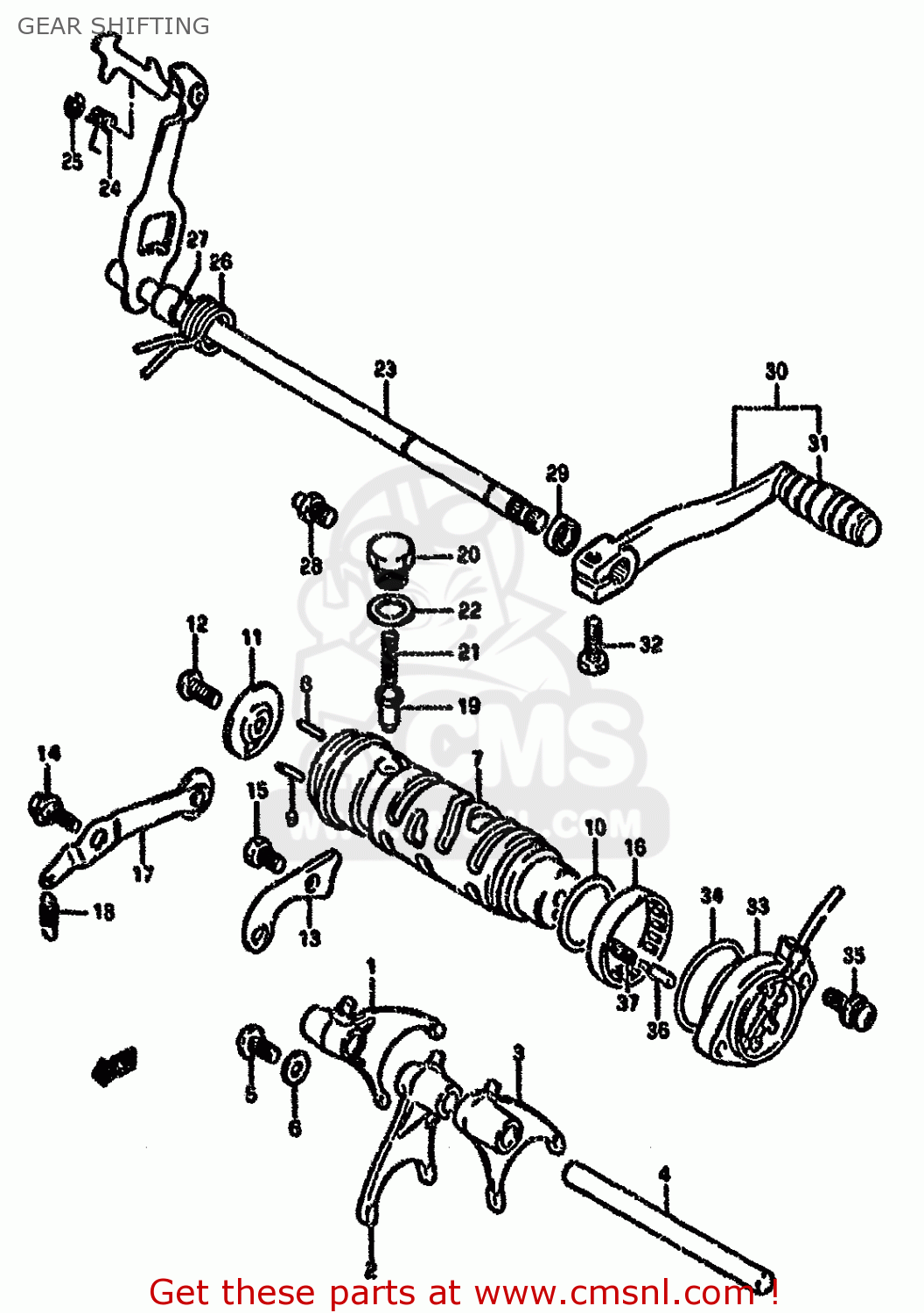

Gear shifting diagram GS500EU 1990 (L) GERMANY (E22)
GEAR SHIFTING GS500EU 1990 (L) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
2521144001
ref: 1
FORK,GEAR SHIFT NO.1
€ 70.00
2
2522144001
ref: 2
FORK,GEAR SHIFT NO.2
€ 74.50
3
2523144000
ref: 3
FORK,GEAR SHIFT NO.2
€ 74.50
4-1
2541131301
ref: 4-1
MODEL K/L/M/N/P/R/S
SHAFT,GEAR SHIFT FORK
€ 14.50
4-2
2541118900
ref: 4-2
MODEL T
SHAFT,GEAR SHIFT FORK
€ 14.50
5-1
0214206107
ref: 5-1
MODEL K/L/M/N/P/R/S
SCREW
€ 2.00
5-2
0214206083
ref: 5-2
MODEL T
SCREW
€ 1.50
6
0821106141
ref: 6
WASHER
€ 2.50
7
2531101D00
ref: 7
CAM,GEAR SHIFT
€ 128.00
8
0926104001
ref: 8
PIN(4X18.5)
€ 1.50
9
0920904013
ref: 9
PIN
€ 5.00
10
0918126001
ref: 10
SHIM(26X32.5X0.3)
€ 2.00
11
2532244000
ref: 11
RETAINER,GEAR SHIFT CAM DR PIN
€ 2.50
12
0211206163
ref: 12
SCREW 6X16
€ 2.00
13
2534133300
ref: 13
GUIDE,GEAR SHIFT CAM
€ 6.00
14-1
0911106019
ref: 14-1
MODEL K/L/M/N/P/R
BOLT
€ 1.50
14-2
0911106054
ref: 14-2
MODEL S/T
BOLT(6X14.6)
€ 1.50
15-1
0110706167
ref: 15-1
MODEL K/L/M/N/P
BOLT
€ 3.00
15-2
0150006163
ref: 15-2
MODEL R/S/T
BOLT
€ 2.00
16
0926340001
ref: 16
BEARING(40X47X12)
€ 21.00
17
2535044000
ref: 17
STOPPER,GEAR SHIFT CAM NO.1
€ 10.50
18
0944309007
ref: 18
SPRING
€ 14.50
19
2535130010
ref: 19
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
20
2535430000
ref: 20
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
21
0944006020
ref: 21
SPRING
€ 14.00
22-1
0916814004
ref: 22-1
MODEL K/L/M/N/P
GASKET(14X19.2X2) (NAS)
€ 2.50
22-2
0916814002
ref: 22-2
MODEL R/S/T
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
23
2551044100
ref: 23
SHAFT,GEAR SHIFT
€ 83.50
24
0944813008
ref: 24
SPRING
€ 7.00
25
0833211076
ref: 25
E RING
€ 2.00
26
0944426013
ref: 26
-09444-26012
SPRING
€ 3.50
27
0918012068
ref: 27
SPACER(12X20X15.3)
€ 3.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
OIL SEAL
€ 7.00
30
2560001D02
ref: 30
LEVER ASSY,GEAR SHIFT
€ 38.50
31
2565220C00
ref: 31
RUBBER,GEAR SHIFT PEDAL
€ 8.00
32-1
0110706207
ref: 32-1
MODEL K/L/M/N/P-0910
BOLT
€ 2.00
32-2
0150006203
ref: 32-2
MODEL R/S/T
BOLT
€ 2.00
33-1
3772044400
ref: 33-1
MODEL K/L/M/N/P
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 103.50
33-2
3772047D00
ref: 33-2
MODEL R/S/T
BASE ASSY,NEUTRAL SW TERMINAL
€ 103.50
34
0928026003
ref: 34
O-RING (D:2.4 ID:26.2)
€ 2.50
35
0211275203
ref: 35
SCREW
€ 3.00
36
0920905011
ref: 36
PIN(5X15.5)
€ 2.00
37
0944004010
ref: 37
SPRING
€ 1.50
