FRONT DAMPER (MODEL N/P/R/S/T)
GS500EU 1990 (L) GERMANY (E22)

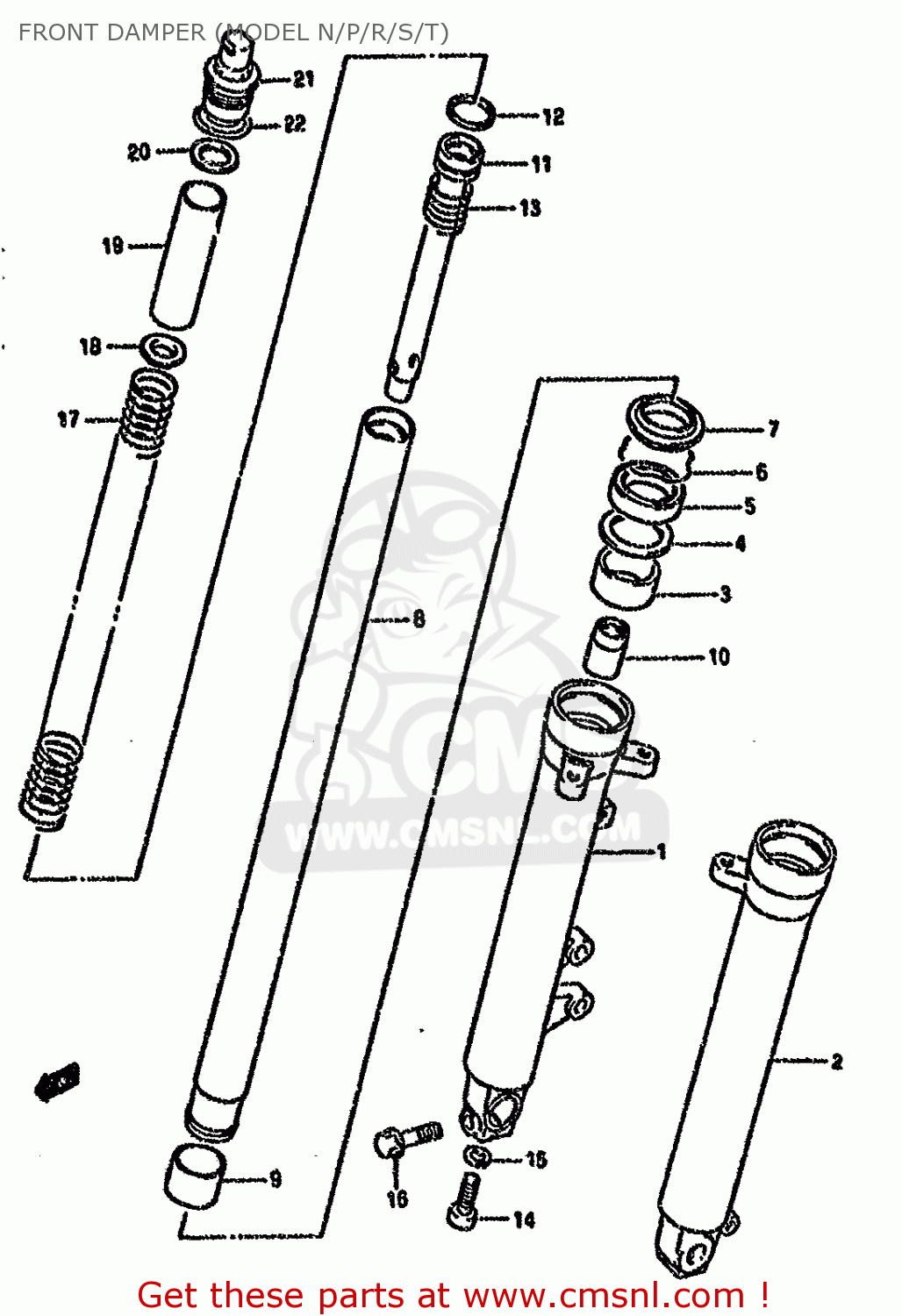

Front damper (model n/p/r/s/t) diagram GS500EU 1990 (L) GERMANY (E22)
FRONT DAMPER (MODEL N/P/R/S/T) GS500EU 1990 (L) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
0
5110301D60
ref: 0
DAMPER ASSY,RH
€ 664.00
0
5110401D60
ref: 0
DAMPER ASSY,LH
€ 555.00
1
5113001D01
ref: 1
TUBE,OUTER,RIGHT
€ 239.50
2
5114001D00
ref: 2
TUBE,OUTER,LEFT
€ 245.00
3
5116701D00
ref: 3
METAL,SLIDE
€ 10.50
4
5115849500
ref: 4
WASHER
€ 4.00
5
5115301D00
ref: 5
OIL SEAL,FRONT FORK
€ 16.50
6
5115640301
ref: 6
RING,STOPPER
€ 4.50
7
5117301D00
ref: 7
DUST SEAL,FRONT FORK
€ 15.00
8
5111001D60
ref: 8
TUBE,INNER
€ 372.00
9
5112101D00
ref: 9
PISTON
€ 11.50
10
5119501D00
ref: 10
PIECE,OIL LOCK
€ 16.50
11
5114601D00
ref: 11
CYLINDER
€ 102.50
12
5119613A10
ref: 12
RING,PISTON
€ 7.00
13
5117701D00
ref: 13
SPRING,REBOUND
€ 8.00
14
5114716510
ref: 14
BOLT,FORK CYLINDER(10X25)
€ 3.50
15
5114841310
ref: 15
GASKET (NAS)
€ 2.50
16-1
0151708407
ref: 16-1
MODEL N/P/R
BOLT 8X40
€ 3.50
16-2
0155008407
ref: 16-2
MODEL S/T
BOLT
€ 3.50
17
5117101D60
ref: 17
SPRING,MAIN
€ 67.50
18
5117240300
ref: 18
GUIDE
€ 5.00
19
5117613A00
ref: 19
SPACER,FR FORK SPRING
€ 8.00
20
5119201D60
ref: 20
WASHER,UPR
€ 4.50
21
5135101D60
ref: 21
BOLT,FORK
€ 104.00
22
5111738260
ref: 22
O RING
€ 2.50
20-2
5135101D30
ref: 20-2
MODEL M
BOLT,FORK
€ 37.00
21
5111740300
ref: 21
O RING
€ 2.50
22
5118930520
ref: 22
CAP,FR FORK
€ 11.50
