FRONT MASTER CYLINDER
GS500EU 1990 (L) GERMANY (E22)

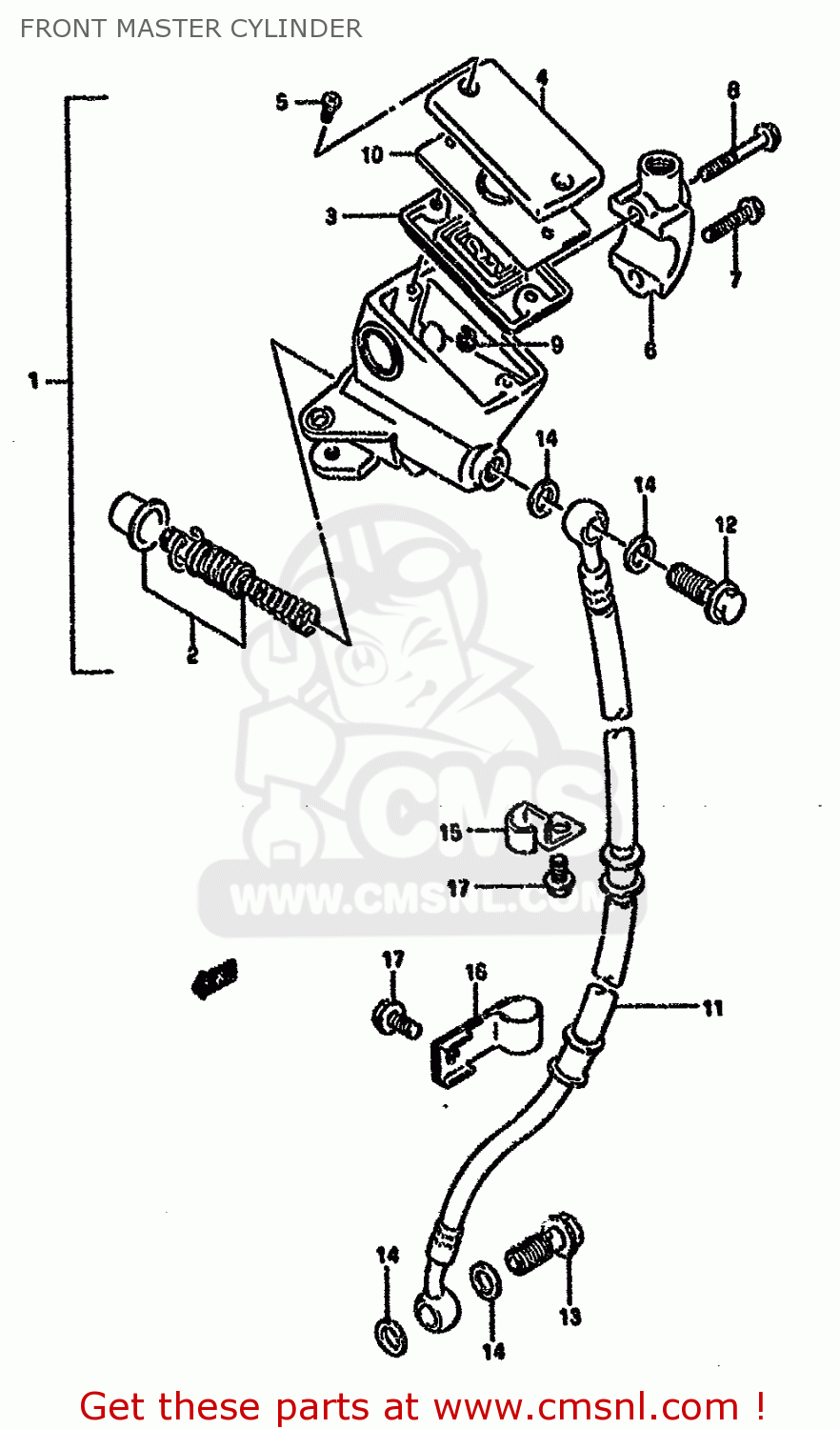

Front master cylinder diagram GS500EU 1990 (L) GERMANY (E22)
FRONT MASTER CYLINDER GS500EU 1990 (L) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5960038C00
ref: 1
CYLINDER ASSY,FR MASTER
€ 202.50
2
5960036820
ref: 2
CUP SET,MASTER CYLINDER
€ 37.50
3
5966749460
ref: 3
5966749460
4-1
5966934C00
ref: 4-1
MODEL K/L/M/N-59669-
CAP
€ 30.00
4-2
5966941C00
ref: 4-2
MODEL P/R/S/T
CAP
€ 30.00
5
6968949300
ref: 5
SCREW
€ 1.50
6
5967144300
ref: 6
HOLDER
€ 14.50
7
5967519C00
ref: 7
BOLT(6X25)
€ 3.00
8
5967519C10
ref: 8
BOLT(6X38)
€ 4.00
9
5966448B00
ref: 9
PROTECTOR
€ 8.00
10
5966841C00
ref: 10
MODEL P/R/S/T
PLATE,DIAPHRAGM
€ 8.00
11-1
5948001D00
ref: 11-1
MODEL K
HOSE COMP,FRONT BRAKE
€ 65.00
11-2
5948001D10
ref: 11-2
MODEL L/M/N/P
HOSE,FR BRAKE,R
€ 82.00
11-3
5948001D20
ref: 11-3
MODEL R/S/T
HOSE,FR BRAKE,R
€ 82.00
12-1
0936010017
ref: 12-1
MODEL K/L/M/N/P
BOLT UNION
€ 6.50
12-2
0936010039
ref: 12-2
MODEL R/S/T
BOLT UNION
€ 6.50
13-1
0936010033
ref: 13-1
MODEL K/L/M/N/P
BOLT 10X1.25X24
€ 5.00
13-2
0936010040
ref: 13-2
MODEL R/S/T
BOLT UNION
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
€ 2.00
15
5926801D01
ref: 15
CLAMP,FR BRAKE HOSE
€ 8.00
16
5926801D10
ref: 16
CLAMP,FRONT BRAKE NO.2
€ 6.00
17-1
0151706125
ref: 17-1
MODEL K/L/M/N/P
BOLT 6X12
€ 2.50
17-2
0155006123
ref: 17-2
MODEL R/S/T
BOLT
€ 2.50
