COWLING (MODEL M/N/P/R/S/T OPTIONAL)

GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

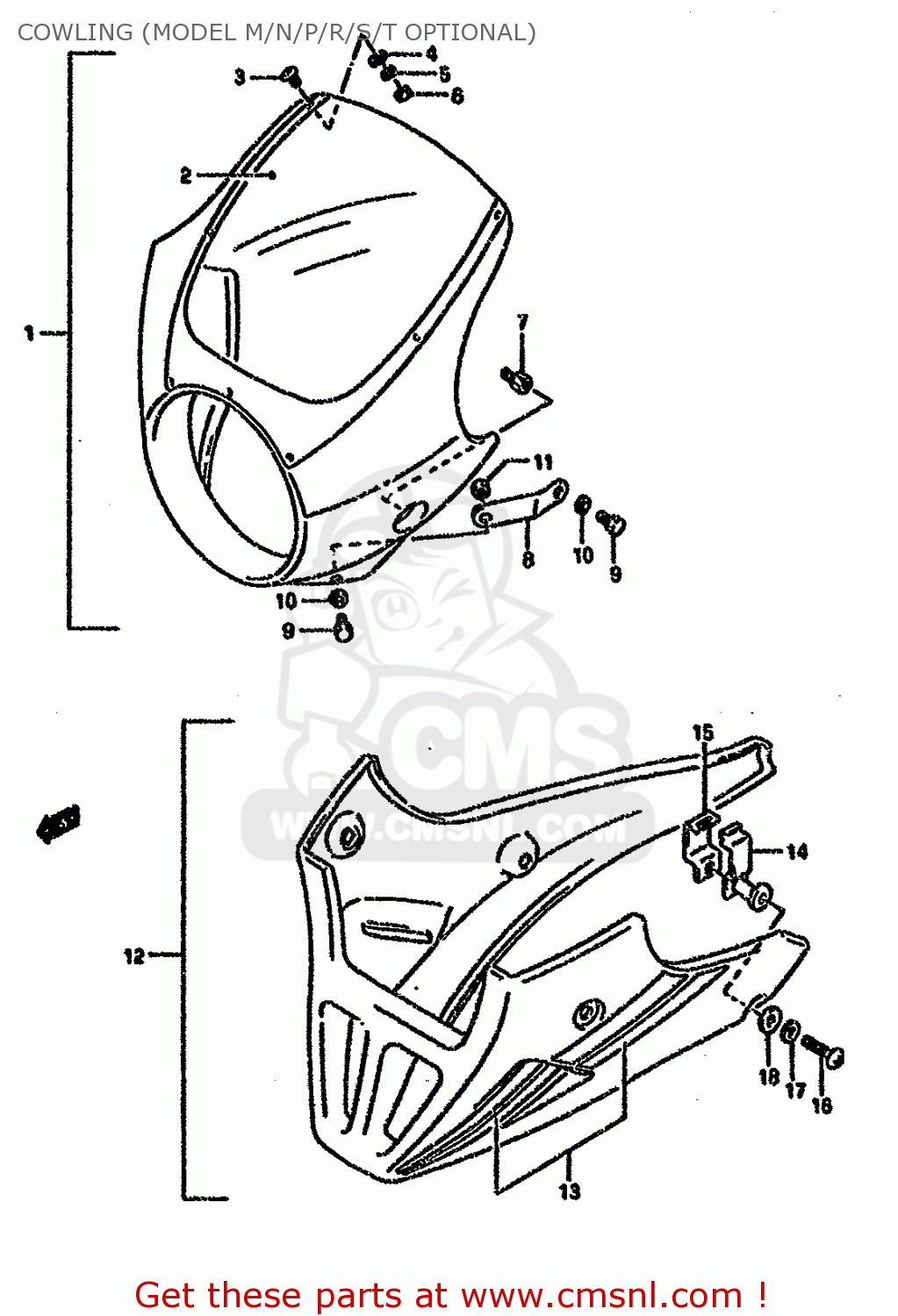

Cowling (model m/n/p/r/s/t optional) diagram GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

COWLING (MODEL M/N/P/R/S/T OPTIONAL) GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
COWLING (MODEL M/N/P/R/S/T OPTIONAL) GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
COWLING (MODEL M/N/P/R/S/T OPTIONAL) GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
9440201D6028V
ref: 1-1
MODEL M/N/P
COWLING SET,UPPER (RED)
€ 486.00
1-2
9440201D6033J
ref: 1-2
MODEL M/N/P/R/S/T
COWLING ASSY,UPR(BLACK)
€ 543.50
1-3
9440201D600FL
ref: 1-3
MODEL M
COWLING SET,UPPER (GREEN)
€ 543.50
1-4
9440201D600ZK
ref: 1-4
MODEL M
COWLING SET,UPPER (BLUE)
€ 543.50
1-5
9440201D601HU
ref: 1-5
MODEL N/P
COWLING SET,UPPER (PURPLE)
€ 370.50
1-6
9440201D601TU
ref: 1-6
MODEL R/S
COVER SET,UPPER COWLING
€ 426.50
1-7
9440201D6019A
ref: 1-7
MODEL R/T
COWLING ASSY,UPR(RED)
€ 652.50
1-8
9440201D601ZV
ref: 1-8
MODEL S/T
COVER SET,UPPER COWLING
€ 426.50
2
9443201D60
ref: 2
SCREEN,COWLING
9443201D60
€ 162.00
3
0214204123
ref: 3
SCREW
€ 1.50
4
0832201043
ref: 4
WASHER
0832201043
€ 5.00
5
0832101043
ref: 5
WASHER,LOCK
0832101043
€ 2.00
6
0831000043
ref: 6
NUT
€ 2.00
7
9474101D60
ref: 7
BOLT,UPR COWLING HEADLAMP
9474101D60
€ 9.50
8
9451101D60
ref: 8
BRACE,UPR COWLING
9451101D60
€ 25.50
9
0120406167
ref: 9
BOLT
0120406167
€ 2.00
10
0832101067
ref: 10
WASHER,LOCK
0832101067
€ 2.50
11
0831000063
ref: 11
NUT 6MM
0831000063
€ 2.00
12-1
944700186028V
ref: 12-1
MODEL M
COVER SET,UNDER COWLING
€ 506.50
12-2
944700187033J
ref: 12-2
MODEL M
COVER SET,UNDER COWL
€ 613.00
12-3
94470018800FL
ref: 12-3
MODEL M
COVER SET,UNDER COWLING
€ 0.00
12-4
94470018900ZK
ref: 12-4
MODEL M
COVER SET,UNDER COWLING
€ 837.00
12-5
94401018101HU
ref: 12-5
MODEL N/P WITH OUT T
COVER SET,UNDER COWLING
€ 516.50
12-6
944010181028V
ref: 12-6
MODEL N/P WITH OUT T
COVER SET,UNDER COWLING
€ 506.50
12-7
944010181033J
ref: 12-7
MODEL N/P/R/S/T WITH
COVER SET,UNDER COWLING
€ 613.00
12-8
94401018101TU
ref: 12-8
MODEL R/S
COVER SET,UNDER COWLING
€ 555.00
12-9
944010181019A
ref: 12-9
MODEL R/T
COVER SET,UNDER COWLING
€ 555.00
12-10
94401018101ZV
ref: 12-10
MODEL S/T
COVER SET,UNDER COWLING
€ 555.00
13-1
6819001D50H05
ref: 13-1
FOR 28V
TAPE SET,UNDER COWLING
€ 0.00
13-2
6819001D503VV
ref: 13-2
FOR 33J
TAPE SET,UNDER COWLING
€ 0.00
13-3
6819001D50H06
ref: 13-3
FOR 0FL,0ZK
TAPE SET,UNDER COWLING
€ 44.00
14
9458001D50
ref: 14
BRACKET,UNDER COWLING OUTER
9458001D50
€ 29.50
15
9458201D50
ref: 15
BRACKET,UNDER COWLING INNER
9458201D50
€ 17.50
16
0214206457
ref: 16
SCREW
0214206457
€ 2.00
17
0832101067
ref: 17
WASHER,LOCK
0832101067
€ 2.50
18
0916006084
ref: 18
WASHER(6.5X18X1.6)
0916006084
€ 2.00
24
94470018400NF
ref: 24
MODEL L E4,E22
COWLING SET,UNDER (BLUE)
€ 0.00
25
6819001D503YH
ref: 25
TAPE SET
€ 0.00
26
9458001D50
ref: 26
BRACKET,UNDER COWLING OUTER
9458001D50
€ 29.50
27
9458201D50
ref: 27
BRACKET,UNDER COWLING INNER
9458201D50
€ 17.50
28
0214206458
ref: 28
SCREW
0214206458
€ 2.00
29
0832121067
ref: 29
WASHER,LOCK
0832121067
€ 2.50
30
0916006006
ref: 30
WASHER
0916006006
€ 2.00
