TRANSMISSION

GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

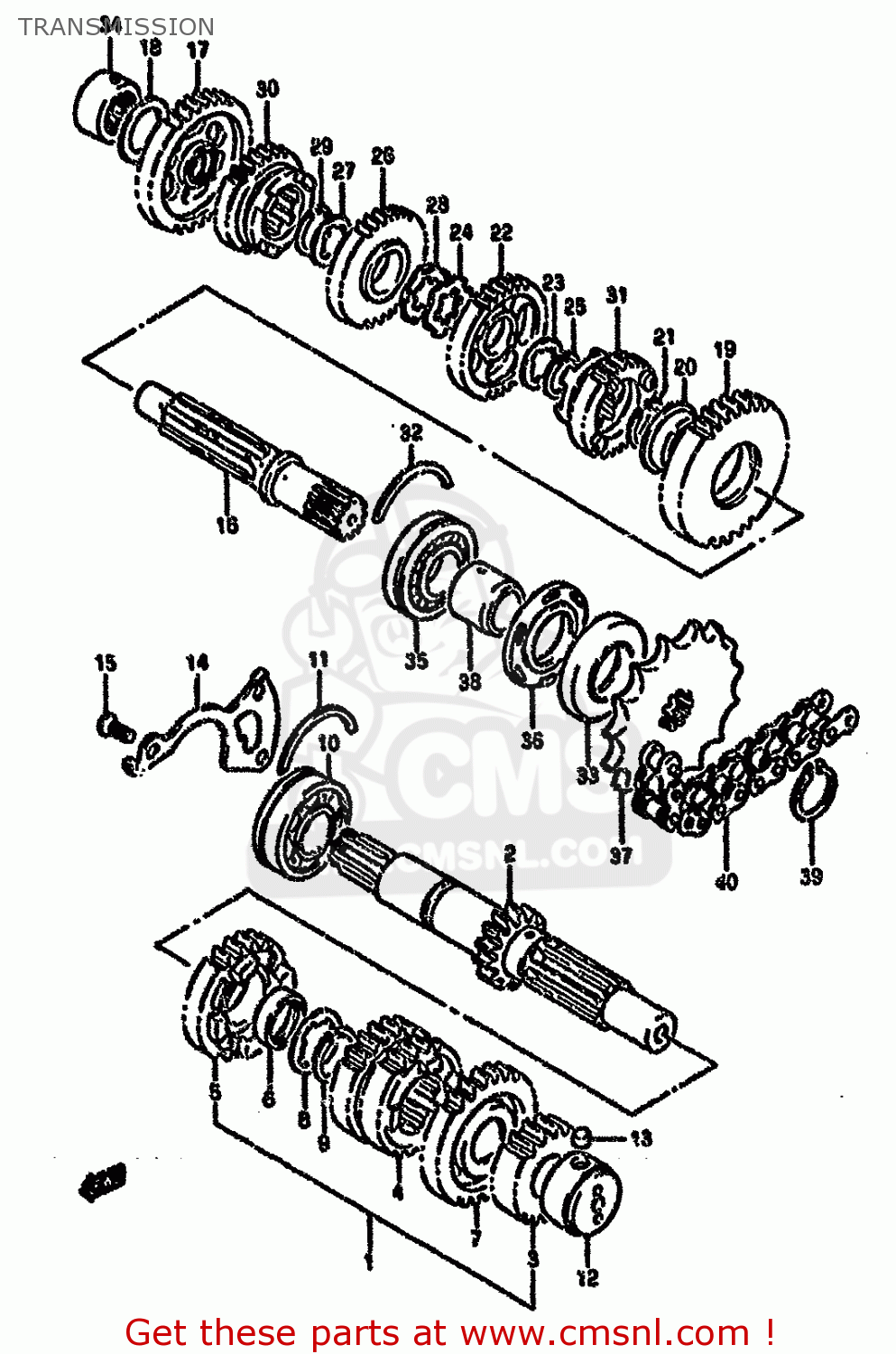

Transmission diagram GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

TRANSMISSION GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
TRANSMISSION GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
TRANSMISSION GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
2412001D00
ref: 1
SHAFT COMP,COUNTER
2412001D00
€ 253.00
2
2412101D00
ref: 2
SHAFT,COUNTER (NT:13)
2412101D00
€ 234.00
3
2422144001
ref: 3
GEAR,2ND DRIVE(NT:18)
2422144001
€ 83.00
4
2423101D00
ref: 4
GEAR,THIRD DRIVE (NT:21/2
€ 91.50
5
2425101D00
ref: 5
GEAR,FIFTH DRIVE (NT:26)
2425101D00
€ 78.50
6
0930025023
ref: 6
BUSHING 25X29X10
€ 9.50
7
2426001D00
ref: 7
GEAR,SIXTH DRIVE (NT:27)
€ 95.50
8
0821125341
ref: 8
WASHER
0821125341
€ 3.50
9
0938025010
ref: 9
CIRCLIP
0938025010
€ 3.00
10
0926225105
ref: 10
BEARING(25X62X17)
0926225105
€ 59.50
11-1
0939062006
ref: 11-1
MODEL K/L/M/N/P/R/S
C-RING
0939062006
€ 5.00
11-2
0939062012
ref: 11-2
MODEL T
C RING
0939062012
€ 5.00
12
0926320026
ref: 12
ROLLER BEARING (20X34X2
0926320026
€ 37.00
13
0422107129
ref: 13
PIN
0422107129
€ 1.50
14
2474144102
ref: 14
PLATE,COUNTERSHAFT BEARING
2474144102
€ 10.50
15
0212206163
ref: 15
SCREW ,6X16
0212206163
€ 2.00
16
2413101D00
ref: 16
SHAFT,DRIVE
2413101D00
€ 207.00
17
2431044000
ref: 17
GEAR,FIRST DRIVEN
2431044000
€ 98.50
18
0821120341
ref: 18
WASHER
0821120341
€ 2.00
19
2432144004
ref: 19
GEAR,SECOND DRIVEN
2432144004
€ 98.50
20
0930125001
ref: 20
BUSHING
€ 12.50
21
0938025010
ref: 21
CIRCLIP
0938025010
€ 3.00
22
2433144002
ref: 22
GEAR,THIRD DRIVEN
2433144002
€ 89.50
23
0916725012
ref: 23
WASHER,LOCK
0916725012
€ 3.50
24
0916725013
ref: 24
WASHER,LOCK
0916725013
€ 2.50
25
0938025010
ref: 25
CIRCLIP
0938025010
€ 3.00
26
2434144002
ref: 26
GEAR,FOURTH DRIVEN
2434144002
€ 82.50
27
0916725012
ref: 27
WASHER,LOCK
0916725012
€ 3.50
28
0916925001
ref: 28
WASHER
0916925001
€ 2.00
29
0938025010
ref: 29
CIRCLIP
0938025010
€ 3.00
30
2435144001
ref: 30
GEAR,5TH DRIVEN(NT:25)
2435144001
€ 108.00
31
2436144002
ref: 31
GEAR,SIXTH DRIVEN
€ 121.00
32-1
0939062006
ref: 32-1
MODEL K/L/M/N/P/R/S
C-RING
0939062006
€ 5.00
32-2
0939062012
ref: 32-2
MODEL T
C RING
0939062012
€ 5.00
33
0928332015
ref: 33
SEAL,OIL(32X62X7)
0928332015
€ 15.50
34
0926320028
ref: 34
ROLLER BEARING (20X34X1
0926320028
€ 34.00
35
0926225105
ref: 35
BEARING(25X62X17)
0926225105
€ 59.50
36
0928232002
ref: 36
SEAL,OIL(32X62X5.5)
0928232002
€ 11.50
37-1
2751101D00
ref: 37-1
MODEL K/L/M/N/P
SPROCKET,ENGINE
2751101D00
€ 19.50
37-2
2751101D01
ref: 37-2
MODEL R/S/T
SPROCKET,ENGINE(16T)
2751101D01
€ 27.50
38-1
2753101D00
ref: 38-1
MODEL K/L/M/N/P
SPACER,ENGINE SPROCKET
2753101D00
€ 19.50
38-2
2753101D10
ref: 38-2
MODEL R/S/T
SPACER,ENGINE SPROCKET
2753101D10
€ 20.00
39
0833131256
ref: 39
CIRCLIP
0833131256
€ 2.00
40
2760001C10110
ref: 40
-27600-01D00-110
CHAIN(DID520VM,110L)
2760001C10110
€ 134.50
