FRAME COVER (MODEL R/S/T)

GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

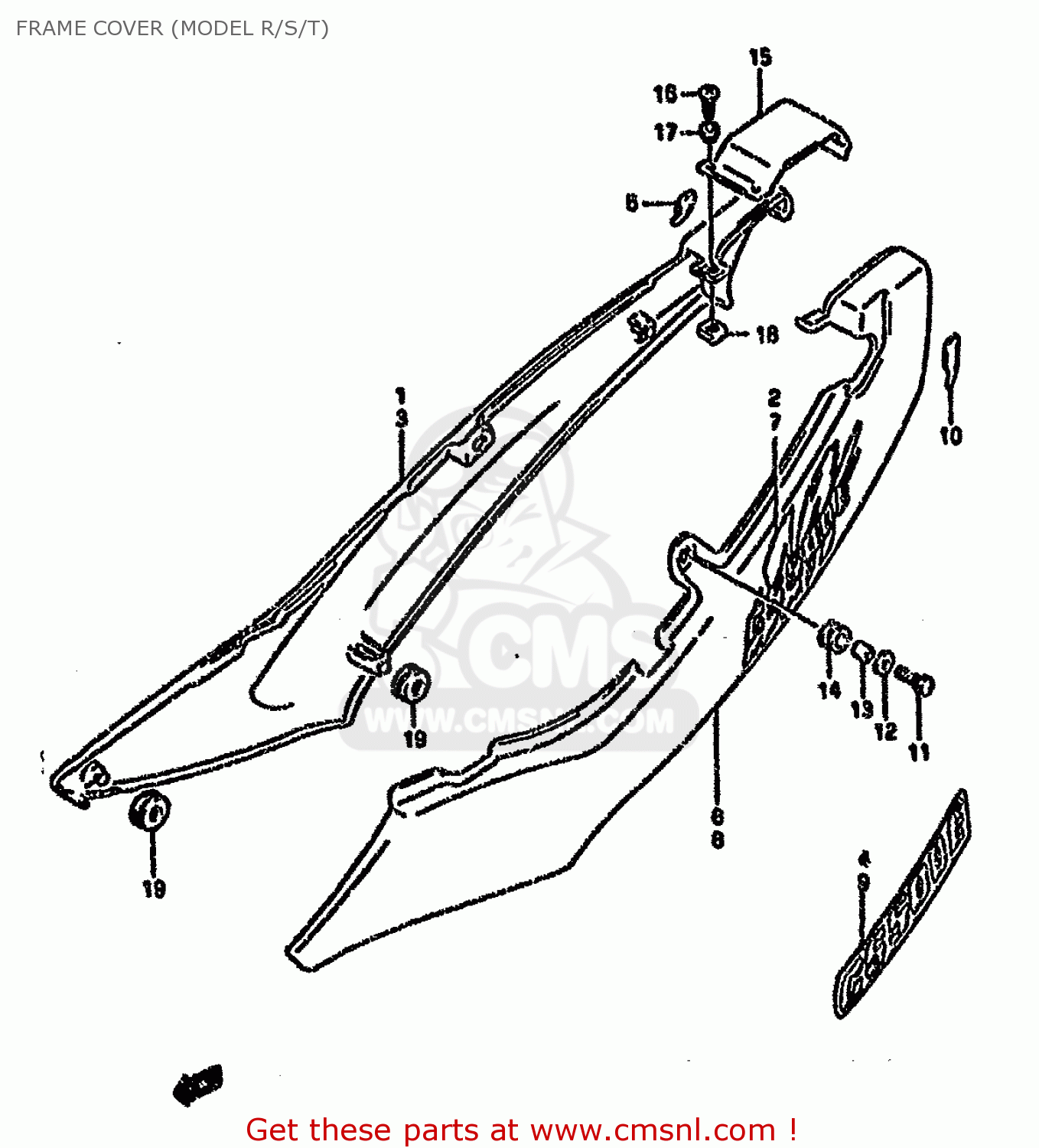

Frame cover (model r/s/t) diagram GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

FRAME COVER (MODEL R/S/T) GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
FRAME COVER (MODEL R/S/T) GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
FRAME COVER (MODEL R/S/T) GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
4711001DC019A
ref: 1-1
MODEL R
COVER COMP,FRAME,RIGHT
4711001DC019A
€ 259.00
1-2
4711001DC033J
ref: 1-2
MODEL R/S
COVER,FRAME,R(BLACK)
€ 207.50
1-3
4711001DC01TU
ref: 1-3
MODEL R/S
COVER,FRAME,R(PURPLE)
€ 207.50
1-4
4711001DC01ZV
ref: 1-4
MODEL S
COVER,FRAME,RIGHT
4711001DC01ZV
€ 218.00
2-1
6813101D20C1W
ref: 2-1
MODEL R FOR 19A
EMBLEM,FRAME COVER
€ 32.00
2-2
6813101D20C1Y
ref: 2-2
MODEL R/S FOR 33J
EMBLEM,FRAME COVER
€ 29.00
2-3
6813101D20C1Z
ref: 2-3
MODEL R/S FOR 1TU
EMBLEM,FRAME COVER
€ 29.00
2-4
6813101D20D0V
ref: 2-4
MODEL S FOR 1ZV
EMBLEM,FRAME COVER
6813101D20D0V
€ 42.00
3-1
4711001DE019A
ref: 3-1
MODEL T
COVER COMP,FRAME,RIGHT
€ 259.00
3-2
4711001DE033J
ref: 3-2
MODEL T
COVER COMP,FRAME,RIGHT
€ 219.50
3-3
4711001DE01ZV
ref: 3-3
MODEL T
COVER,FRAME,R(GREEN)
4711001DE01ZV
€ 222.00
4-1
6813101D3087N
ref: 4-1
MODEL T FOR 19A
EMBLEM,FRAME COVER
6813101D3087N
€ 16.00
4-2
6813101D30E5H
ref: 4-2
MODEL T FOR 33J
EMBLEM,FRAME COVER
6813101D30E5H
€ 16.00
4-3
6813101D303SC
ref: 4-3
MODEL T FOR 1ZV
EMBLEM,FRAME COVER
6813101D303SC
€ 17.00
5
4711901D00
ref: 5
PROTECTOR,FRAME COVER,R
€ 7.00
6-1
4721001DC019A
ref: 6-1
MODEL R
COVER,FRAME,L(RED)
€ 178.00
6-2
4721001DC033J
ref: 6-2
MODEL R/S
COVER,FRAME,L(BLACK)
€ 207.50
6-3
4721001DC01TU
ref: 6-3
MODEL R/S
COVER COMP,FRAME,LEFT
4721001DC01TU
€ 194.00
6-4
4721001DC01ZV
ref: 6-4
MODEL S
COVER,FRAME,LEFT
4721001DC01ZV
€ 218.00
7-1
6813101D20C1W
ref: 7-1
MODEL R FOR 19A
EMBLEM,FRAME COVER
€ 32.00
7-2
6813101D20C1Y
ref: 7-2
MODEL R/S FOR 33J
EMBLEM,FRAME COVER
€ 29.00
7-3
6813101D20C1Z
ref: 7-3
MODEL R/S FOR 1TU
EMBLEM,FRAME COVER
€ 29.00
7-4
6813101D20D0V
ref: 7-4
MODEL S FOR 1ZV
EMBLEM,FRAME COVER
6813101D20D0V
€ 42.00
8-1
4721001DE019A
ref: 8-1
MODEL T
COVER,FRAME,L(RED)
€ 222.00
8-2
4721001DE033J
ref: 8-2
MODEL T
COVER,FRAME,L(BLACK)
4721001DE033J
€ 222.00
8-3
4721001DE01ZV
ref: 8-3
MODEL T
COVER,FRAME,L(GREEN)
€ 222.00
9-1
6813101D3087N
ref: 9-1
MODEL T FOR 19A
EMBLEM,FRAME COVER
6813101D3087N
€ 16.00
9-2
6813101D30E5H
ref: 9-2
MODEL T FOR 33J
EMBLEM,FRAME COVER
6813101D30E5H
€ 16.00
9-3
6813101D303SC
ref: 9-3
MODEL T FOR 1ZV
EMBLEM,FRAME COVER
6813101D303SC
€ 17.00
10
4721901D00
ref: 10
PROTECTOR,FRAME COVER,L
4721901D00
€ 7.00
11-1
0912806057
ref: 11-1
MODEL R
BOLT(6X20)
0912806057
€ 2.00
11-2
0911606010
ref: 11-2
MODEL S/T
BOLT(6X20)
0911606010
€ 2.00
12
0916006057
ref: 12
MODEL R
WASHER
€ 2.00
13
0918006011
ref: 13
SPACER (6.1X9X9)
0918006011
€ 2.00
14
0932009016
ref: 14
CUSHION
0932009016
€ 2.50
15-1
4721501D0019A
ref: 15-1
MODEL R/T
COVER,FRAME CTR
€ 33.00
15-2
4721501D0033J
ref: 15-2
COVER,FRAME CTR
4721501D0033J
€ 36.50
15-3
4721501D001TU
ref: 15-3
MODEL R/S
COVER,FRAME CTR
4721501D001TU
€ 38.50
15-4
4721501D001ZV
ref: 15-4
MODEL S/T
COVER,FRAME CTR
4721501D001ZV
€ 30.50
16
0324105123
ref: 16
SCREW L:12
0324105123
€ 1.50
17
0916105017
ref: 17
WASHER(5.2X14X1.5)
0916105017
€ 3.00
18-1
0914805013
ref: 18-1
MODEL R/S
NUT
0914805013
€ 1.50
18-2
0914805004
ref: 18-2
MODEL T
NUT
0914805004
€ 1.50
19
0932008018
ref: 19
CUSHION
0932008018
€ 4.00
