FRONT FENDER (MODEL T)

GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

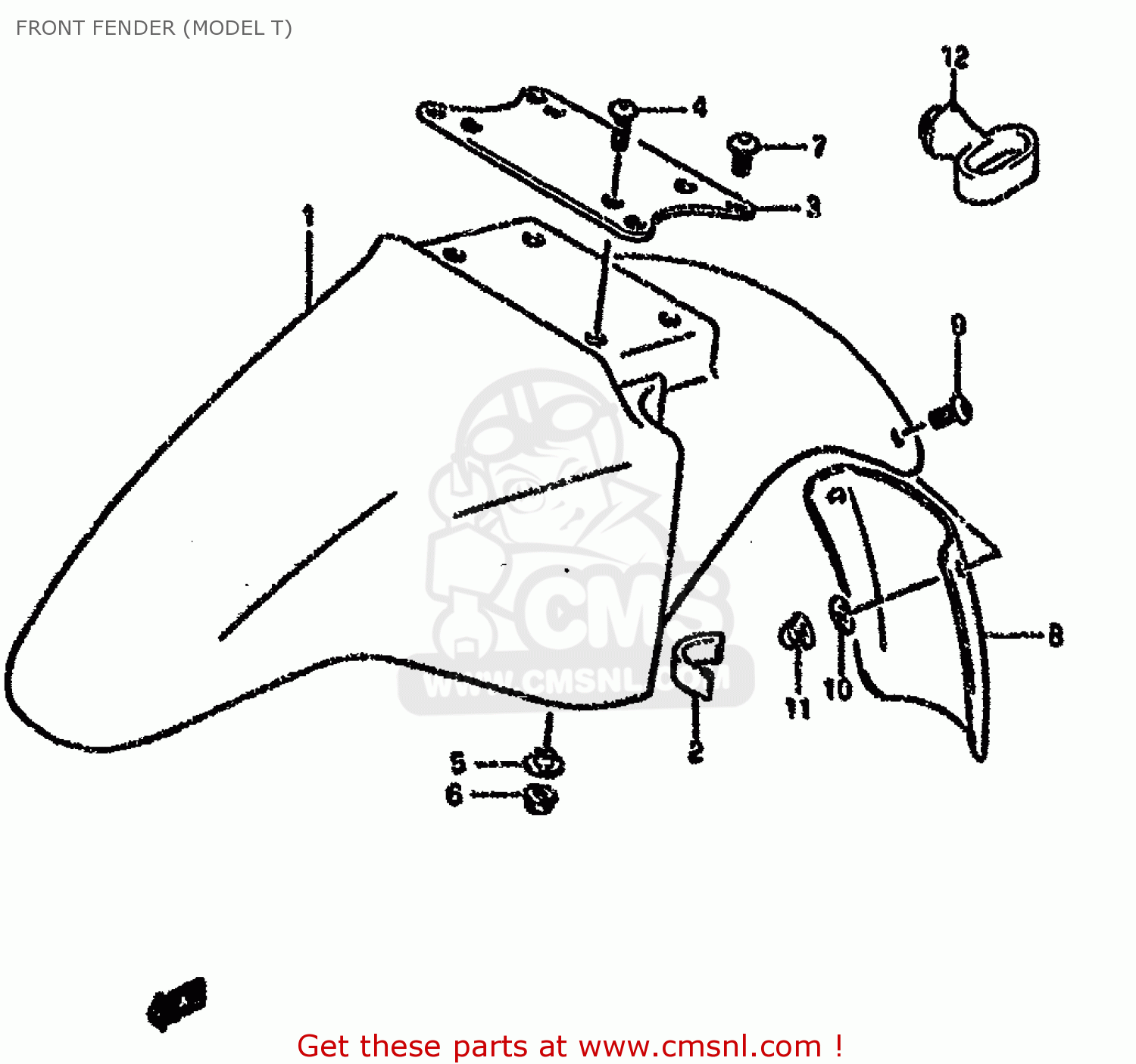

Front fender (model t) diagram GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

FRONT FENDER (MODEL T) GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
FRONT FENDER (MODEL T) GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
FRONT FENDER (MODEL T) GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
5311101D1119A
ref: 1-1
FENDER,FRONT
€ 35.50
1-2
5311101D1133J
ref: 1-2
FENDER,FRONT
€ 125.00
1-3
5311101D111ZV
ref: 1-3
FENDER,FRONT
€ 138.00
2
5314530B00
ref: 2
CUSHION,FR FENDER
5314530B00
€ 2.00
3
5311401D00
ref: 3
BRACE,FR FENDER
5311401D00
€ 19.50
4
0913905042
ref: 4
SCREW(5X16)
0913905042
€ 2.50
5
0916905010
ref: 5
WASHER
0916905010
€ 3.00
6
0915905026
ref: 6
NUT
0915905026
€ 2.50
7
0913906027
ref: 7
SCREW(6X12)
0913906027
€ 3.00
8
5331101D01
ref: 8
MUDGUARD,FR FENDER
5331101D01
€ 20.00
9
0214205127
ref: 9
SCREW
0214205127
€ 1.50
10
0916005501
ref: 10
WASHER(5.5X20X1.2)
0916005501
€ 2.00
11
0831320053
ref: 11
NUT
0831320053
€ 1.50
12
5862121203A
ref: 12
GUIDE,CABLE
€ 7.50
1-15
5311101D211TU
ref: 1-15
MODEL R-53111-01D11-
FENDER,FRONT
€ 163.50
1-16
5311101D111TU
ref: 1-16
MODEL R/S
FENDER,FRONT
€ 163.50
1-17
5311101D111TU
ref: 1-17
E18,E22
FENDER,FRONT
€ 163.50
1-18
5311101D2119A
ref: 1-18
MODEL R-53111-01D11-
FENDER,FRONT
€ 35.50
1-19
5311101D1119A
ref: 1-19
FENDER,FRONT
€ 35.50
1-20
5311101D1119A
ref: 1-20
E18,E22
FENDER,FRONT
€ 35.50
1-21
5311101D1133J
ref: 1-21
MODEL R/S
FENDER,FRONT
€ 125.00
1-22
5311101D111ZV
ref: 1-22
MODEL S
FENDER,FRONT
€ 138.00
2
5314532B00
ref: 2
CUSHION,FRONT FENDER
€ 2.00
3-1
5311419C00
ref: 3-1
MODEL K
BRACE,FRONT FENDER
€ 19.50
3-2
5311401D00
ref: 3-2
MODEL L/M/N/P/R/S
BRACE,FR FENDER
5311401D00
€ 19.50
4
0913905042
ref: 4
SCREW(5X16)
0913905042
€ 2.50
5
0916905010
ref: 5
WASHER
0916905010
€ 3.00
6
0915905026
ref: 6
NUT
0915905026
€ 2.50
7
0913906027
ref: 7
SCREW(6X12)
0913906027
€ 3.00
8-1
5331101D01
ref: 8-1
MUDGUARD,FR FENDER
5331101D01
€ 20.00
8-2
5331101D11
ref: 8-2
-53311-01D01
MUD FLAP,FRONT FENDER
5331101D11
€ 20.00
9
0214205127
ref: 9
SCREW
0214205127
€ 1.50
10-1
0916005030
ref: 10-1
MODEL K/L/M/N/P/R
WASHER
0916005030
€ 2.00
10-2
0916005501
ref: 10-2
MODEL S
WASHER(5.5X20X1.2)
0916005501
€ 2.00
11-1
0831321055
ref: 11-1
MODEL K/L/M/N/P
NUT 5MM
0831321055
€ 1.50
11-2
0831320053
ref: 11-2
MODEL R/S
NUT
0831320053
€ 1.50
12
5862121203A
ref: 12
GUIDE,CABLE
€ 7.50
