OIL FILTER-OIL PUMP

GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

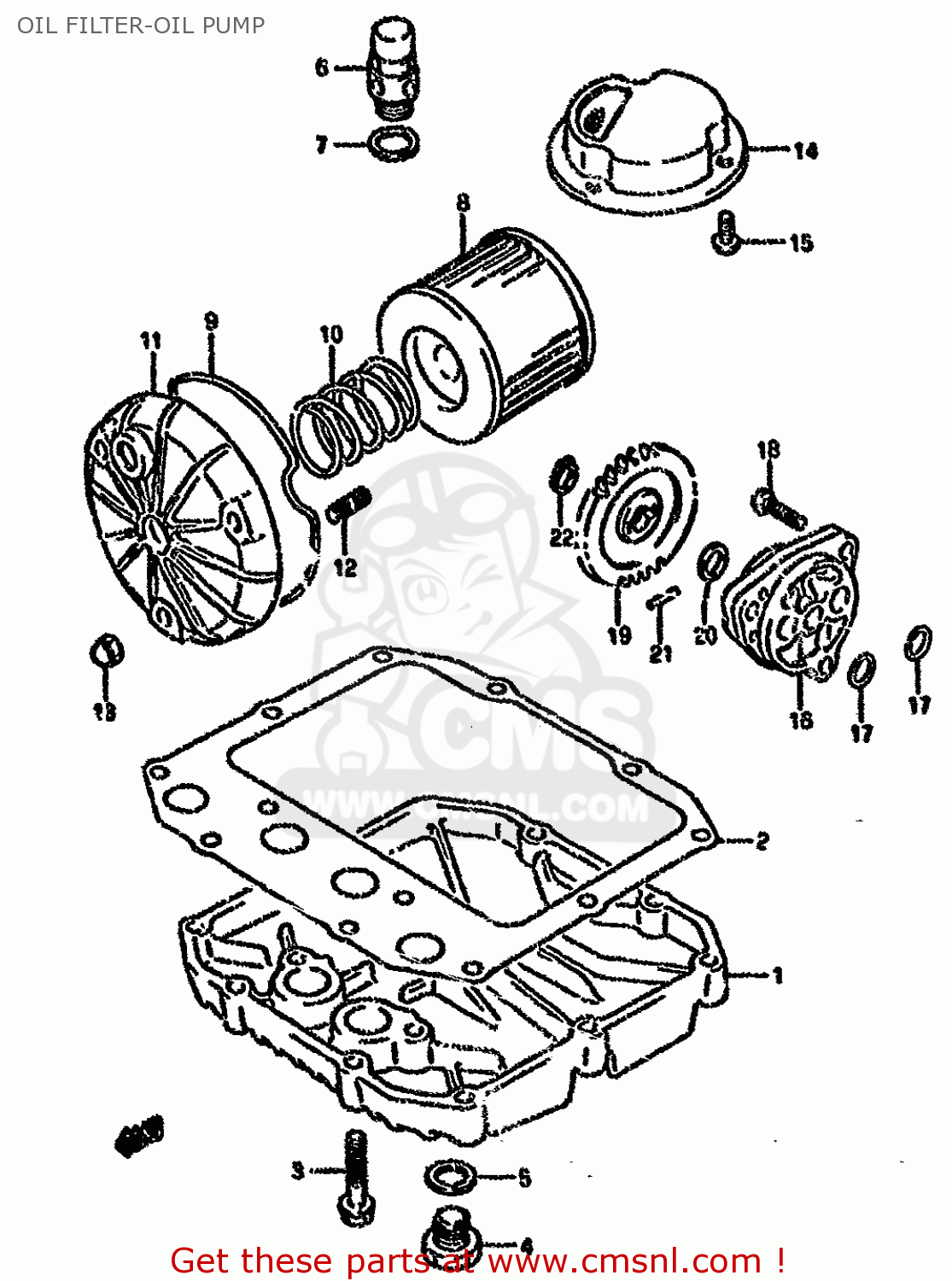

Oil filter-oil pump diagram GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)

OIL FILTER-OIL PUMP GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
OIL FILTER-OIL PUMP GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
OIL FILTER-OIL PUMP GS500EU 1992 (N) GERMANY AUSTRALIA (E22 E24)
prices are in EUR
ref
part #
description
quantity
1
1151144100
ref: 1
PAN,OIL
1151144100
€ 83.50
2
1148944110
ref: 2
GASKET,OIL PAN(ASB) (NAS)
1148944110
€ 11.00
3-1
0151706307
ref: 3-1
MODEL K/L/M/N/P
BOLT
0151706307
€ 2.00
3-2
0155006303
ref: 3-2
MODEL R/S/T
BOLT
0155006303
€ 2.50
4
0924714001
ref: 4
PLUG
0924714001
€ 5.00
5
0916814002
ref: 5
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
6-1
1644033300
ref: 6-1
MODEL K
VALVE ASSEMBLY,OIL RELIEF
€ 37.00
6-2
1644005C01
ref: 6-2
MODEL L/M/N/P/R/S/T
REGULATOR ASSEMBLY,ENGINE
€ 37.00
7
0821214181
ref: 7
MODEL K
WASHER
0821214181
€ 2.00
8
1651045040
ref: 8
FILTER ASSY,ENGINE OIL
1651045040
€ 7.50
9
1651845000
ref: 9
O RING,OIL FILTER CHAMBER CAP
1651845000
€ 7.50
10
0944032004
ref: 10
SPRING
0944032004
€ 13.50
11-1
1651244410
ref: 11-1
MODEL K/L
CAP,OIL FILTER
1651244410
€ 47.00
11-2
1651244400
ref: 11-2
MODEL M/N/P
CAP,OIL FILTER
€ 47.00
11-3
1651215510
ref: 11-3
MODEL R
CAP,OIL FILTER
€ 47.00
11-4
1651245D00
ref: 11-4
MODEL S/T
CAP,OIL FILTER
1651245D00
€ 47.00
12
0142106208
ref: 12
STUD 6X20
0142106208
€ 2.50
13-1
0831321064
ref: 13-1
MODEL K/L
NUT 6MM
€ 2.00
13-2
0831321067
ref: 13-2
MODEL M/N/P
NUT
€ 2.00
13-3
0831320063
ref: 13-3
MODEL R/S/T
NUT
0831320063
€ 2.00
14
1652001D01
ref: 14
-16520-01D00
STRAINER,ENGINE OIL
1652001D01
€ 12.50
15
0211206123
ref: 15
SCREW
0211206123
€ 1.50
16
1640044100
ref: 16
PUMP ASSY,ENGINE OIL
1640044100
€ 164.50
17
0928013004
ref: 17
O RING(D:1.9,ID:13)
0928013004
€ 2.50
18
0211206253
ref: 18
SCREW
0211206253
€ 1.50
19-1
1633101D00
ref: 19-1
MODEL K/L
GEAR,OIL PUMP DRIVEN
€ 46.00
19-2
1633101D10
ref: 19-2
MODEL M/N/P/R/S/T
GEAR,OIL PUMP DRIVEN
1633101D10
€ 46.00
20
0822110185
ref: 20
SHIM
0822110185
€ 2.00
21
0926104009
ref: 21
PIN(4X15.8)
0926104009
€ 1.50
22
0833131106
ref: 22
-08331-31109
CIRCLIP,10MM
0833131106
€ 2.00
